FED. MFG. CODE 91929
REVISIONS
ISSUE
DRAWING
NUMBER
DRAWN
CHECK CHECK
CHECK
RELEASE NO.
PTC/CAD
THIRD ANGLE PROJECTION
SCALE
DO NOT SCALE PRINT
WEIGHT
CATALOG LISTING
THIS DRAWING COVERS A PROPRIETARY ITEM AND IS THE PROPERTY OF MICRO SWITCH. A DIVISION OF
HONEYWELL. THIS DRAWING IS NOT TO BE C OPIED OR USED WITHOUT THE APPROVAL OF MICRO SWITCH.
Honeywell Division
APPLY TO DESIGN UNITS. CONVERSIONS ARE ONLY FOR
REFERENCE. UNLESS NOTED, TOLERANCES ARE
+
TOLERANCES
-
DESIGN UNITS
DIM.
TOL
SI METRIC
US CUSTOMARY
mm
mm/in
DIM.
TOL
X.X 0.8/.03
NO PLACES X 1/.04
ONE PLACE X,X 0.4/.016
TWO PLACES X,XX 0.15/.006
THREE PLACES
ANGLES
X.XX 0.38/.015
X.XXX 0.13/.005
in
mm/in
ANSI Y14.5M-1982 APPLIES
REPLACES
PAGE
75,8
2,99
30,0
1,18
70,00 MAX
2,756
20,0
,79
16,0
,63
60,0
2,36
ADJUSTMENT-91,538,1
-3,601,50
6,5
,26
44,8
1,76
38,1
1,50
Y
36,8
1,45
Y
42,0
1,65
31,5
1,24
42,0
1,65
82,0
3,23
102,9
4,05
62,0
2,44
5,3
,21
7,3
,29
X
Z
X
Z
59,2
2.33
3,2
.13
GLZ54J: 201,5 / 7.93
GLZ54K: 141,0 / 15.56
GLZ54J: 200,00 / 7.870 MAX
GLZ54K: 140,00 / 5.510 MAX
ALUMINUM ROD
ENVIRONMENTAL RATING
IP67
NEMA/UL TYPES 1, 4, 12, 13
FIGURE CATALOG
LISTING
CONDUIT
ENTRY
1A GL*A SERIES 1/2-14 NPT
1B GL*B SERIES PG13.5
1C
GL*C SERIES
20mm
1D GL*D SERIES PF1/2
ELECTRICAL RATING 5 8
AC DC
A600 AC15
Ue Ie
Q300 DC13
Ue Ie
(VOLTS) (AMPS)
120 6
240 3
380 1.9
480 1.5
500 1.4
600 1.2
(VOLTS) (AMPS)
24 2.8
125 .55
250 .27
CATALOG
LISTING
BODY DIMENSIONS,
FIGURE
HEAD DIMENSIONS,
FIGURE
HEAD ACTUATION,
FIGURE
GLA**** 1 N/A N/A
GLF**** 1 N/A N/A
GLH**** 1 N/A N/A
GL*A*** 1A N/A N/A
GL*B*** 1B N/A N/A
GL*C*** 1C N/A N/A
GL*D*** 1D N/A N/A
GL****A1* 1 1 8
GL****A2* 1 3 9
GL****A4* 1 2 10
GL****A5* 1 8
GL****B 1 4 11
GL****C 1 5 13A, 13B
GL****D 1 6 14A, 14B
GL****E7A 1
7A
12
GL****E7B 1
7
12
GL****E7C 1
7E
15
GL****E7D 1
7B
12
GL****K8A 1
7C
15
GL****K8B 1 7D 15
GL****K8C 1 7 15
LEVER ROLLER
MATL
X DIM Y DIM Z DIM
GLZ52A NYLON 19,1
.75
65,9
2.59
6,4
.25
GLZ52B STEEL 19,1
.75
65,9
2.59
6,4
.25
GLZ52D NYLON 38,1
1.5
65,9
2.59
6,4
.25
GLZ52E NYLON 19,1
.75
79,37
3.125
33,07
1.300
GLZ52W RUBBER 40,0
1.6
71,5
2.81
12,7
.5
GLZ52Y RUBBER 50,0
1.97
68,8
2.71
10,0
.39
GL SERIES CHART 1
SWITCH, ENCLOSED
1:1
GL SERIES CHART 1
1 OF 13
15
S A V 27MAR96 DVM 07AUG06 CMH 05OCT10
GL SERIES CHART 1
PR-20782
F
0000401
GLH
2JUN03
G
0002986
RS
20JAN04
H
0023759
RKP
07AUG06
J
0037216
BS
08FEB08
K
0043629
SS
12SEP08
L
0048605
VKS
09FEB09
M
0070059
DN
05OCT10
LEVER ROLLER
MATL
X DIM Y DIM Z DIM
GLZ51A NYLON 19,1
.75
55,9
2.20
6,4
.25
GLZ51B STEEL 19,1
.75
55,9
2.20
6,4
.25
GLZ51C NYLON 24,5
1.00
59,1
2.33
12,7
.50
GLZ51Y RUBBER 50,0
1.97
66,1
2.60
10,0
.39
GLZ51T
STAINLESS
STEEL
19.1
.75
56.8
2.24
8.8
.345
NOTES
1 - HEADS MAY BE INDEXED IN 90 INCREMENTS
2 - LEVERS MAY BE KEYED TO THE SHAFT AT 90 INCREMENTS. THEY MAY
ALSO BE ATTACHED, BUT NOT KEYED ANYWHERE ON THE SHAFT.
3 - FOR ADDITIONAL LEVERS SEE "M" DRAWING CHART GLZ5
4 THE LEFT INDICATOR IS GREEN AND INDICATES "POWER ON" IT IS ON
GLH SERIES PRODUCTS ONLY. THE RIGHT INDICATOR IS YELLOW AND
INDICATES "OUTPUT STATUS" IT IS ON GLF AND GLH SERIES
PRODUCTS ONLY.
5 THE MAXIMUM VOLTAGE, Ve OF GLF AND GLH SERIES PRODUCTS IS
THE MAXIMUM RATED VOLTAGE OF INDICATION LIGHTS
6 FREE POSITION, OPERATE POINT, OVERTRAVEL AND PRETRAVEL ALL
TO EN50041
7 CAM TRAVEL FOR FIG 9 ONLY APPLIES WHEN LEVER IS ADJUSTED TO
38,1 / 1.50
8 THE MAXIMUM VOLTAGE, Ve OF "06" AND "36" BASIC SWITCH CODE IS 500V (A500)
9 TEMPERATURE RANGE
(ALL PRODUCTS EXCEPT w/SIDE ROTARY OPERATING HEAD)
OPERATING: -25 $C TO +85 $C / -13 $F TO +185 $F
STORAGE: -40 $C TO +85 $C / -40 $F TO +185 $F
(PRODUCTS w/SIDE ROTARY OPERATING HEAD)
OPERATING: -40 $C TO +85 $C / -40 $F TO +185 $F
STORAGE: -40 $C TO +85 $C / -40 $F TO +185 $F

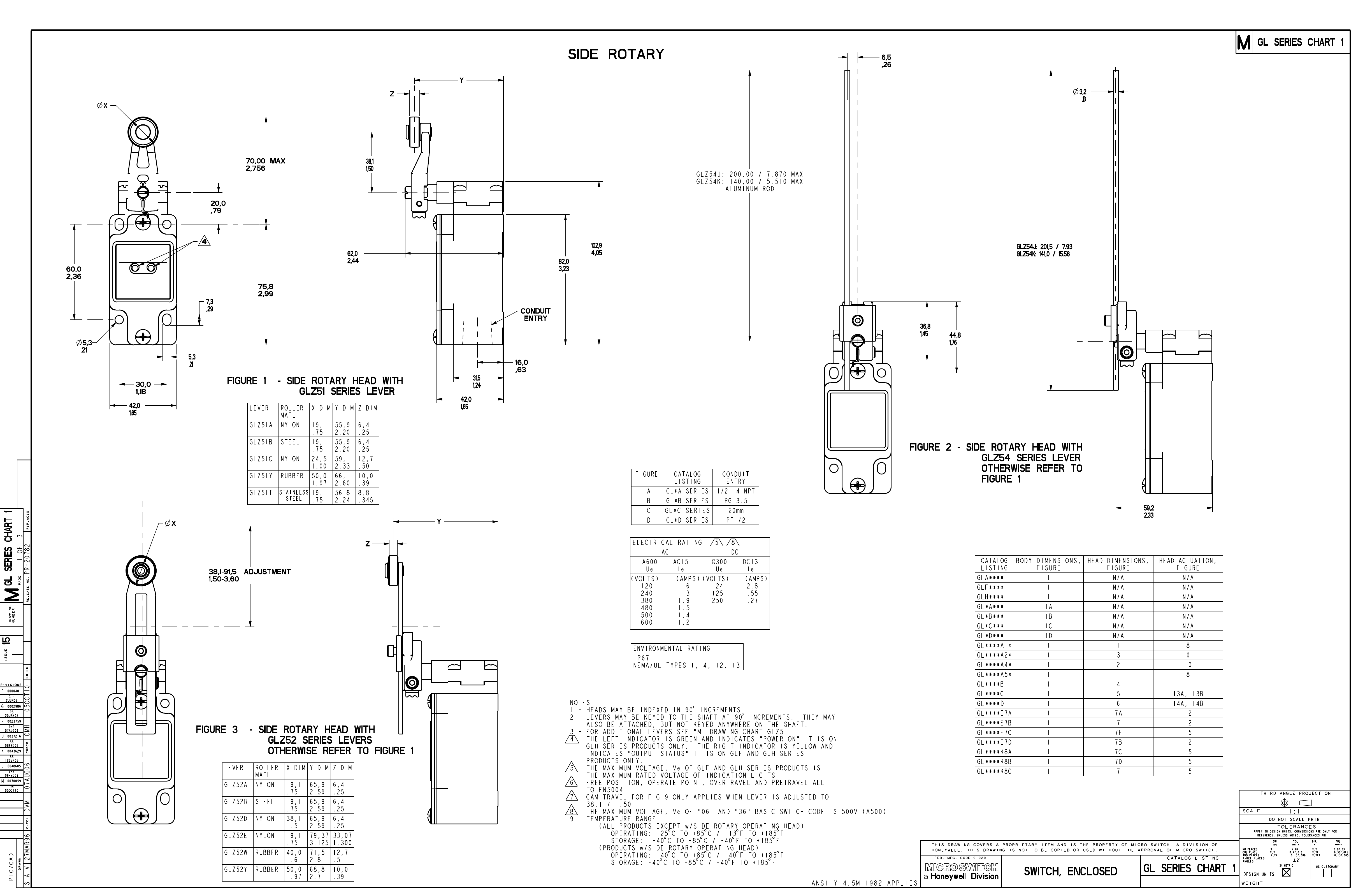

FIGURE 3 - SIDE ROTARY HEAD WITH
GLZ52 SERIES LEVERS
OTHERWISE REFER TO FIGURE 1
5,3
.21
#2$
SIDE ROTARY
FIGURE 1 - SIDE ROTARY HEAD WITH
GLZ51 SERIES LEVER
FIGURE 2 - SIDE ROTARY HEAD WITH
GLZ54 SERIES LEVER
OTHERWISE REFER TO
FIGURE 1
CONDUIT
ENTRY
4
