7/12/00
DB92296m-AAS/A1
A.C. INPUT PHOTOTRANSISTOR
OPTICALLY COUPLED
ISOLATORS
APPROVALS
ll UL recognised, File No. E91231
ll CSA recognised, Cert. No. CA 110306-1
'X' SPECIFICATION APPROVALS
l VDE 0884 in 3 available lead form : -
- STD
- G form
- SMD approved to CECC 00802
DESCRIPTION
The H11AA series of optically coupled
isolators consist of two infrared light emitting
diodes connected in inverse parallel and NPN
silicon photo transistor in a standard 6 pin dual
in line plastic package.
FEATURES
l Options :-
10mm lead spread - add G after part no.
Surface mount - add SM after part no.
Tape&reel - add SMT&R after part no.
l High Isolation Voltage (5.3kV
RMS
,7.5kV
PK
)
l AC or polarity insensitive input
l All electrical parameters 100% tested
l Custom electrical selections available
APPLICATIONS
l Computer terminals
l Industrial systems controllers
l Telephone sets, Telephone exchangers
l Signal transmission between systems of
different potentials and impedances
ABSOLUTE MAXIMUM RATINGS
(25°C unless otherwise specified)
Storage Temperature -55°C to + 150°C
Operating Temperature -55°C to + 100°C
Lead Soldering Temperature
(1/16 inch (1.6mm) from case for 10 secs) 260°C
INPUT DIODE
Forward Current ±100mA
Peak Forward Current ±1A
Power Dissipation 200mW
OUTPUT TRANSISTOR
Collector-emitter Voltage BV
CEO
30V
Collector-base Voltage BV
CBO
70V
Emitter-collector Voltage BV
ECO
7V
Emitter-base Voltage BV
EBO
5V
Power Dissipation 300mW
POWER DISSIPATION
Total Power Dissipation 350mW
(derate linearly 4.67mW/°C above 25°C)

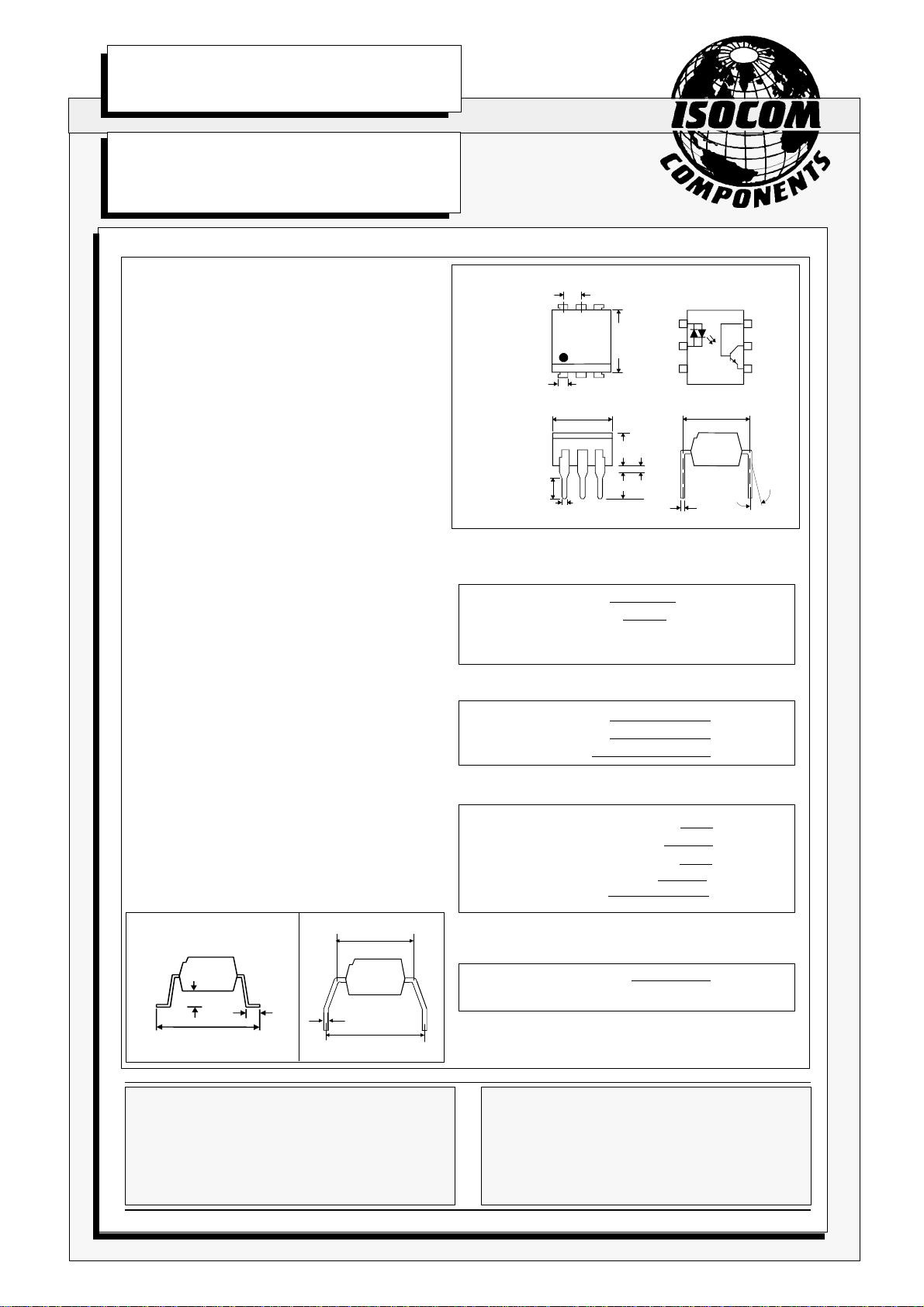

H11AA1, H11AA2, H11AA3, H11AA4
H11AA1X, H11AA2X, H11AA3X, H11AA4X
OPTION G
7.62
SURFACE MOUNT
OPTION SM
10.16
0.26
0.26
0.5
1
3 4
6
Dimensions in mm
7.0
6.0
1.2
7.62
3.0
13°
Max
3.35
4.0
3.0
2.54
7.62
6.62
2 5
0.5
ISOCOM INC
1024 S. Greenville Ave, Suite 240,
Allen, TX 75002 USA
Tel: (214) 495-0755 Fax: (214) 495-0901
e-mail info@isocom.com
http://www.isocom.com
ISOCOM COMPONENTS LTD
Unit 25B, Park View Road West,
Park View Industrial Estate, Brenda Road
Hartlepool, TS25 1YD England Tel: (01429)863609
Fax : (01429) 863581 e-mail sales@isocom.co.uk
http://www.isocom.com
10.46
9.86
0.6
0.1
1.25
0.75
