H11L1M, H11L2M, H11L3M — 6-Pin DIP Optocoupler
©2005 Fairchild Semiconductor Corporation www.fairchildsemi.com
H11L1M, H11L2M, H11L3M Rev. 1.0.4
April 2013
H11L1M, H11L2M, H11L3M
6-Pin DIP Optocoupler
Features
■
High Data Rate, 1 MHz typical (NRZ)
■
Free From Latch-up and Oscilliation Throughout
Voltage and Temperature Ranges
■
Microprocessor Compatible Drive
■
Logic Compatible Output Sinks 16 mA at 0.4 V
Maximum
■
Guaranteed On/Off Threshold Hysteresis
■
Wide Supply Voltage Capability, Compatible With All
Popular Logic Systems
■
Underwriters Laboratory (UL) Recognized—
File #E90700, Volume 2
■
VDE Recognized – File #102497 – Add Option V
(e.g., H11LIVM)
Applications
■
Logic-to-Logic Isolator
■
Programmable Current Level Sensor
■
Line Receiver—Eliminate Noise and Transient
Problems
■
A.C. to TTL Conversion—Square Wave Shaping
■
Digital Programming of Power Supplies
■
Interfaces Computers with Peripherals
Description
The H11LXM series has a high speed integrated circuit
detector optically coupled to a gallium-arsenide infrared
emitting diode. The output incorporates a Schmitt trigger,
which provides hysteresis for noise immunity and pulse
shaping. The detector circuit is optimized for simplicity of
operation and utilizes an open collector output for
maximum application flexibility.
Schematic Package Outlines
1
2
6
5 GND
4
V
O
V
CC
ANODE
CATHODE
3
Truth Table
Input Output
HL
LH

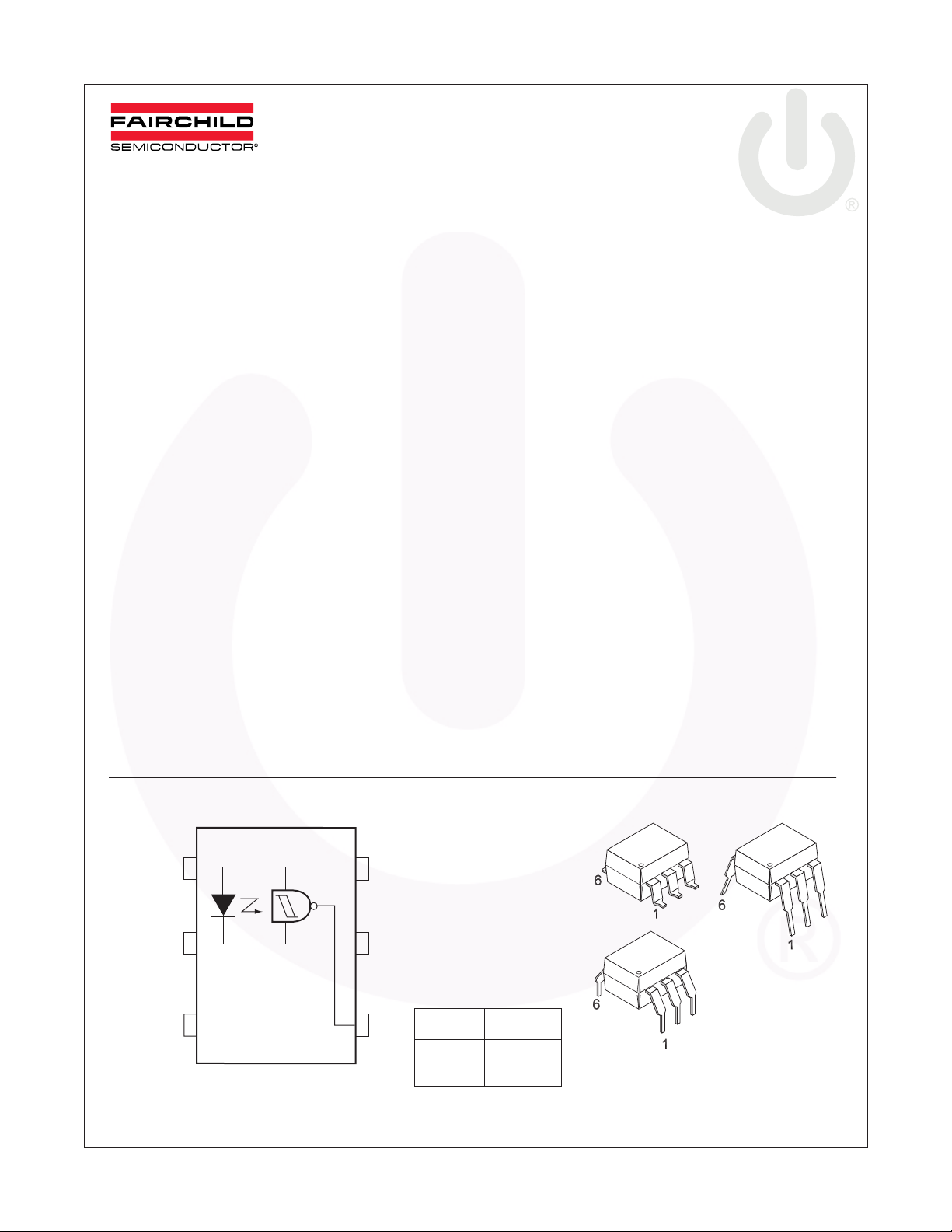

Figure 1. Schematic
Figure 2. Package Outlines
