SWITCHES - SPDT - SMT
4
HMC190BMS8 / 190BMS8E
v00.0213
GaAs MMIC SPDT SWITCH
DC - 3 GHz
Absolute Maximum Ratings

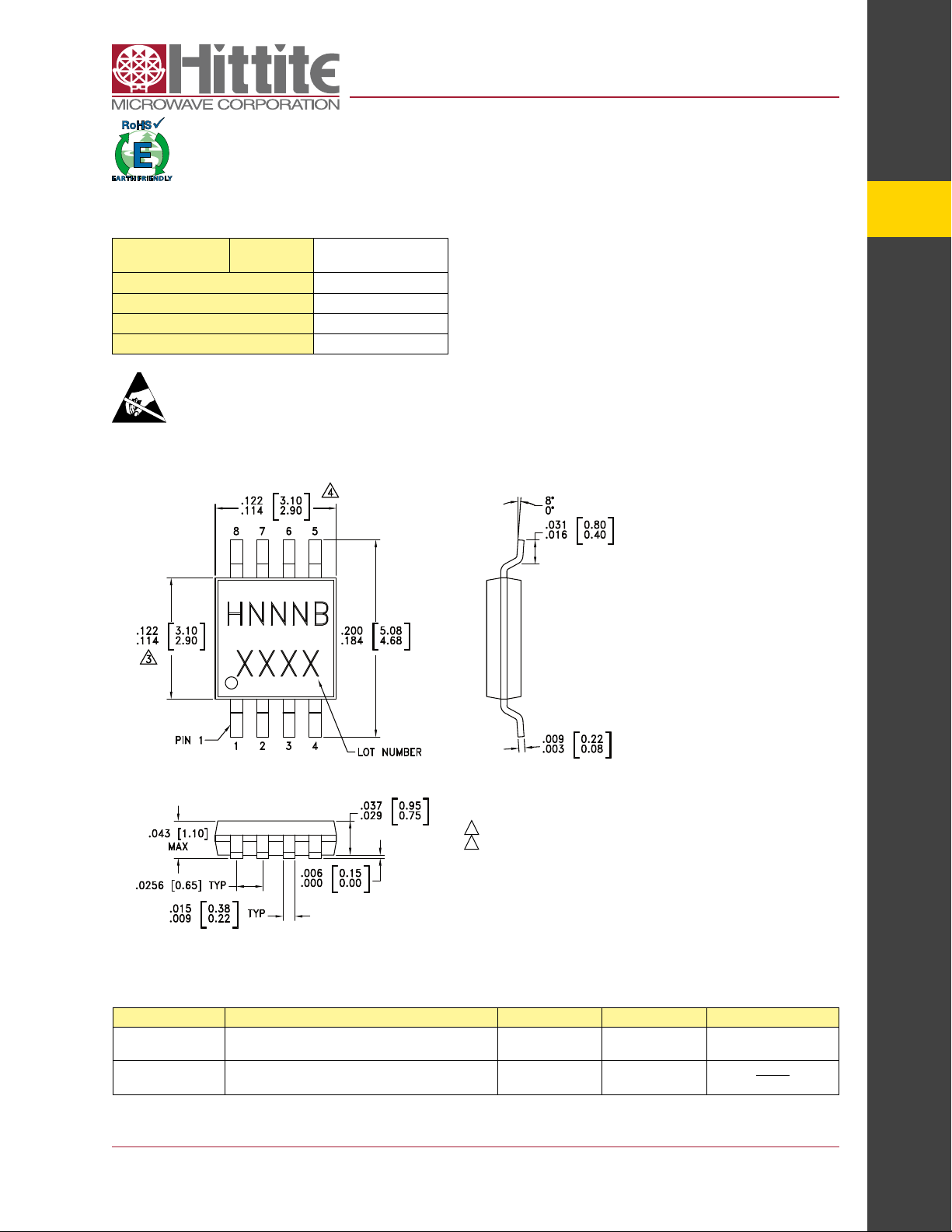

Outline Drawing
Max. Input Power
V
CTL
= 0/+8V
0.5 GHz
0.5 - 2 GHz
+27 dBm
+34 dBm
Control Voltage Range (A & B) -0.2 to +12 Vdc
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C
ESD Sensitivity (HBM) Class 1A
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS
Part Number Package Body Material Lead Finish MSL Rating Package Marking
[3]
HMC190BMS8 Low Stress Injection Molded Plastic Sn/Pb Solder
MSL1
[1]
H190B
XXXX
HMC190BMS8E RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn
MSL1
[2]
H190B
XXXX
[1] Max peak reow temperature of 235 °C
[2] Max peak reow temperature of 260 °C
[3] 4-Digit lot number XXXX
Package Information
NOTES:
1. LEADFRAME MATERIAL: COPPER ALLOY
2. DIMENSIONS ARE IN INCHES [MILLIMETERS].
3. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.15mm PER SIDE.
4. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.25mm PER SIDE.
5. ALL GROUND LEADS MUST BE SOLDERED TO PCB RF GROUND.
