SWITCHES - SPDT - SMT
1
HMC270AMS8GE
v02.0316
GAAS MMIC SPDT SWITCH
NON-REFLECTIVE, DC -8 GHz
For price, delivery, and to place orders: Analog Devices, Inc.,
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
General Description
Features

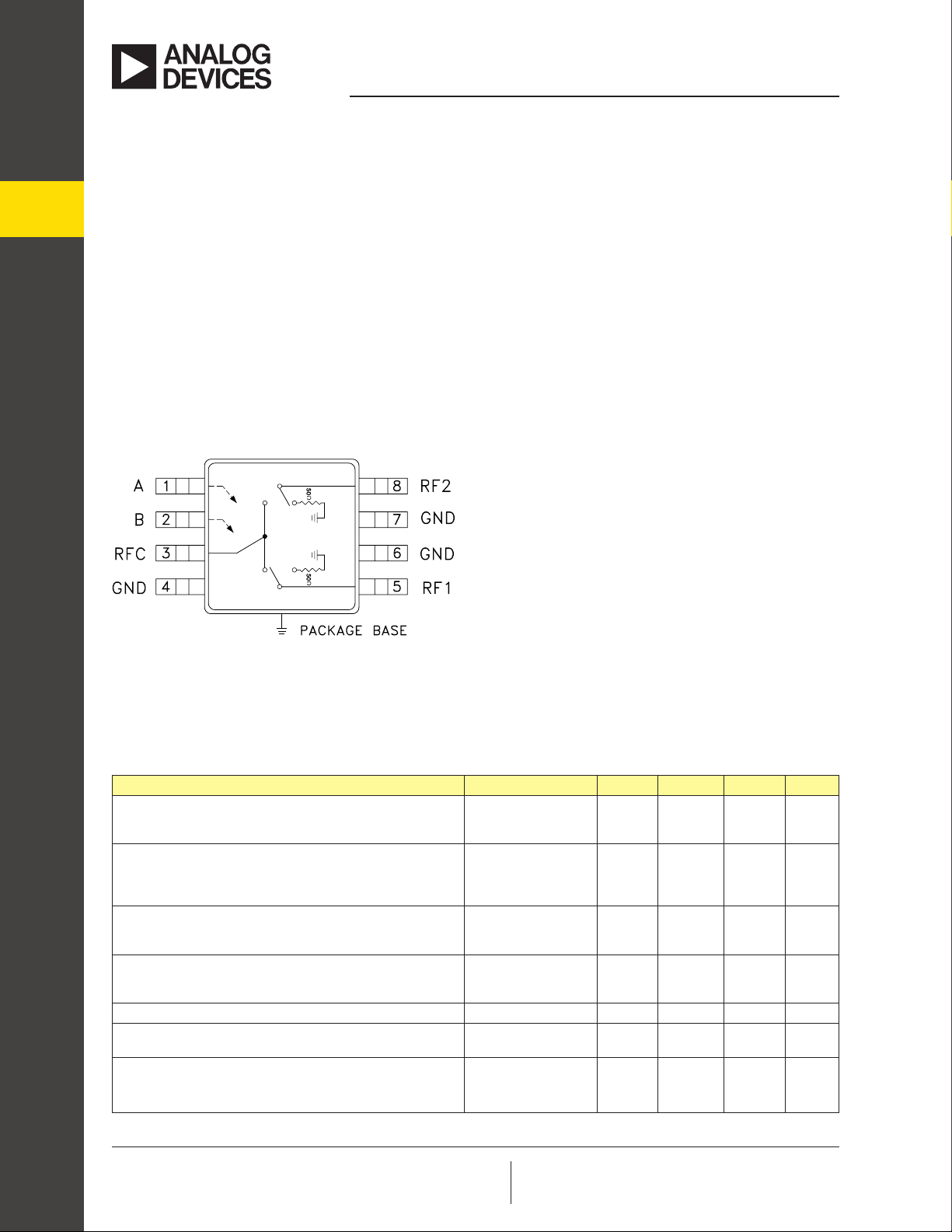

Functional Diagram
Broadband Performance: DC - 8 GHz
Very High Isolation: 45 dB @ 6 GHz
Non-Reective Design
Low Cost MSOP-8 Package: 14.8 mm
2
Electrical Specications, T
A
= +25° C, With 0/-5V Control, 50 Ohm system
Typical Applications
The HMC270AMS8GE is ideal for
DC - 8.0 GHz applications:
• CATV
• MMDS & WirelessLAN
• Wireless Local Loop
The HMC270AMS8GE are broad-band non-reective
GaAs SPDT switches in 8 lead MSOP grounded base
surface mount plastic packages. Covering DC to 8
GHz, the switch offers excellent isolation from 70 to
35 dB. The negative control voltage of -5 volts allows
operation down to DC. If positive control is required
along with high isolation, see the DC to 3.5 GHz
HMC284AMS8GE non-reective SPDT.
Parameter Frequency Min. Ty p. Max. Units
Insertion Loss
DC - 2.0 GHz
DC - 6.0 GHz
DC - 8.0 GHz
0.8
1. 0
2.4
1. 2
1. 7
2.8
dB
dB
dB
Isolation
DC - 2.0 GHz
DC - 4.0 GHz
DC - 6.0 GHz
DC - 8.0 GHz
43
42
37
28
53
52
45
33
dB
dB
dB
dB
Return Loss “On State”
DC - 2.0 GHz
DC - 6.0 GHz
DC - 8.0 GHz
11
9
7
14
12
10
dB
dB
dB
Return Loss RF1, RF2 “Off State”
DC - 2.0 GHz
DC - 6.0 GHz
DC - 8.0 GHz
15
13
10
20
18
15
dB
dB
dB
Input Power for 1 dB Compression 0.5 - 8.0 GHz 24 28 dBm
Input third Order Intercept
(Two-Tone Input Power = +10 dBm Each Tone)
0.5 - 8.0 GHz 37 42 dBm
Switching Characteristics DC - 8.0 GHz
tRISE, tFALL (10/90% RF)
tON, tOFF (50% CTL to 10/90% RF)
15
50
ns
ns
