FREQUENCY DIVIDERS & DETECTORS - SMT
6
6 - 2
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
HMC361S8G / 361S8GE
SMT GaAs HBT MMIC
DIVIDE-BY-2, DC - 10 GHz
General Description
Features

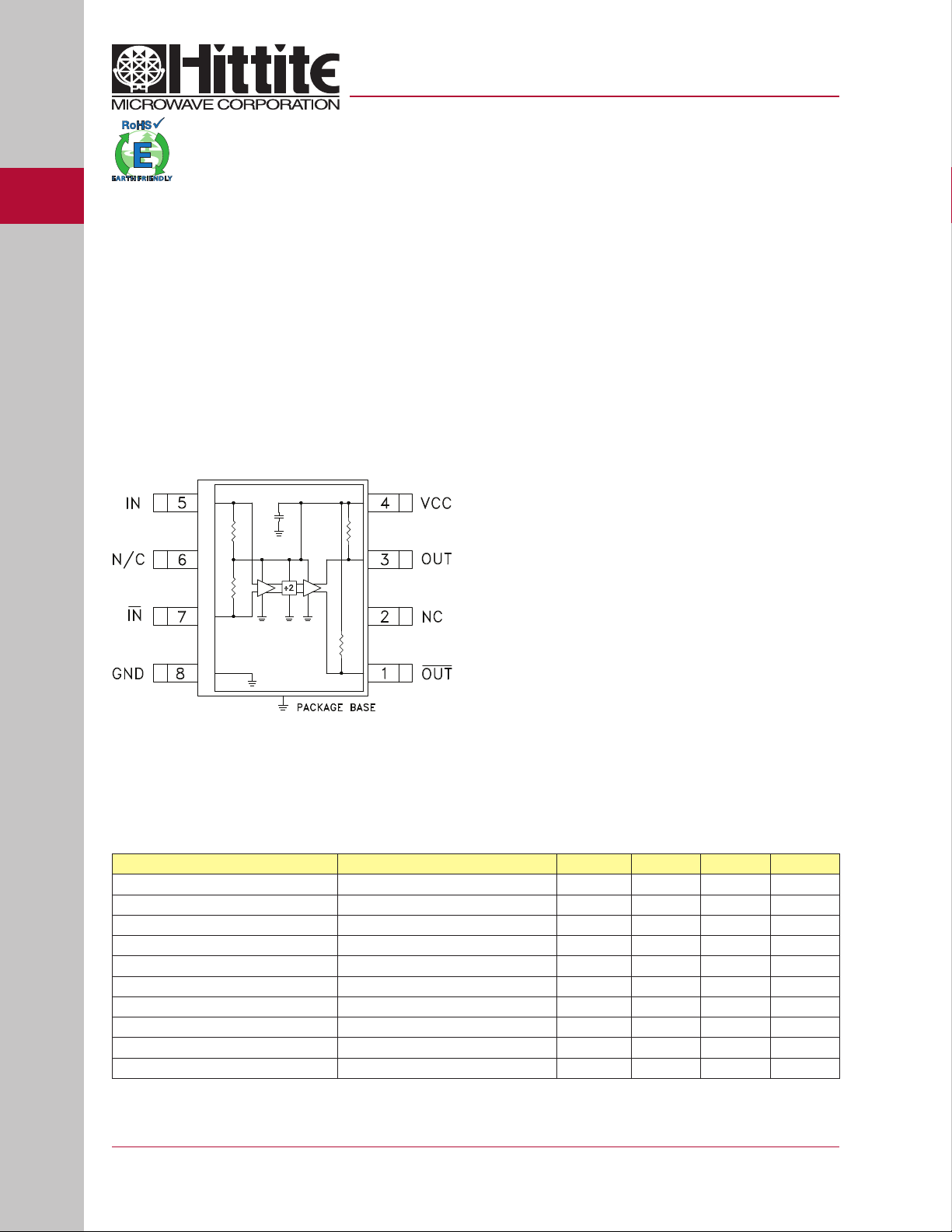

Functional Diagram
The HMC361S8G & HMC361S8GE are low noise
Divide-by-2 Static Dividers with InGaP GaAs HBT
technology in 8 lead surface mount plastic packages.
This device operates from DC (with a square wave
input) to 10 GHz input frequency with a single +5V
DC supply. The low additive SSB phase noise of -148
dBc/Hz at 100 kHz offset helps the user maintain good
system noise performance.
Ultra Low SSB Phase Noise: -148 dBc/Hz
Wide Bandwidth
Output Power: 3 dBm
Single DC Supply: +5V
S8G SMT Package
Electrical Speci cations, T
A
= +25° C, 50 Ohm System, Vcc= 5V
Typical Applications
Prescaler for DC to X Band PLL Applications:
• Satellite Communication Systems
• Fiber Optic
• Point-to-Point and Point-to-Multi-Point Radios
• VSAT
v06.1008
Parameter Conditions Min. Typ. Max. Units
Maximum Input Frequency 10 11 GHz
Minimum Input Frequency Sine Wave Input.
[1]
0.2 0.5 GHz
Input Power Range Fin = 1 to 8 GHz -15 +10 dBm
Fin = 8 to 10 GHz -10 +2 dBm
Output Power Fin = 6 GHz 0 3 dBm
Fin = 10 GHz -6 dBm
Reverse Leakage Both RF Outputs Terminated 45 dB
SSB Phase Noise (100 kHz offset) Pin = 0 dBm, Fin = 6 GHz -148 dBc/Hz
Output Transition Time Pin = 0 dBm, Fout = 882 MHz 100 ps
Supply Current (Icc) 83 mA
1. Divider will operate down to DC for square-wave input signal.
