FREQUENCY DIVIDERS & DETECTORS - SMT
6
6 - 44
For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
General Description
Features

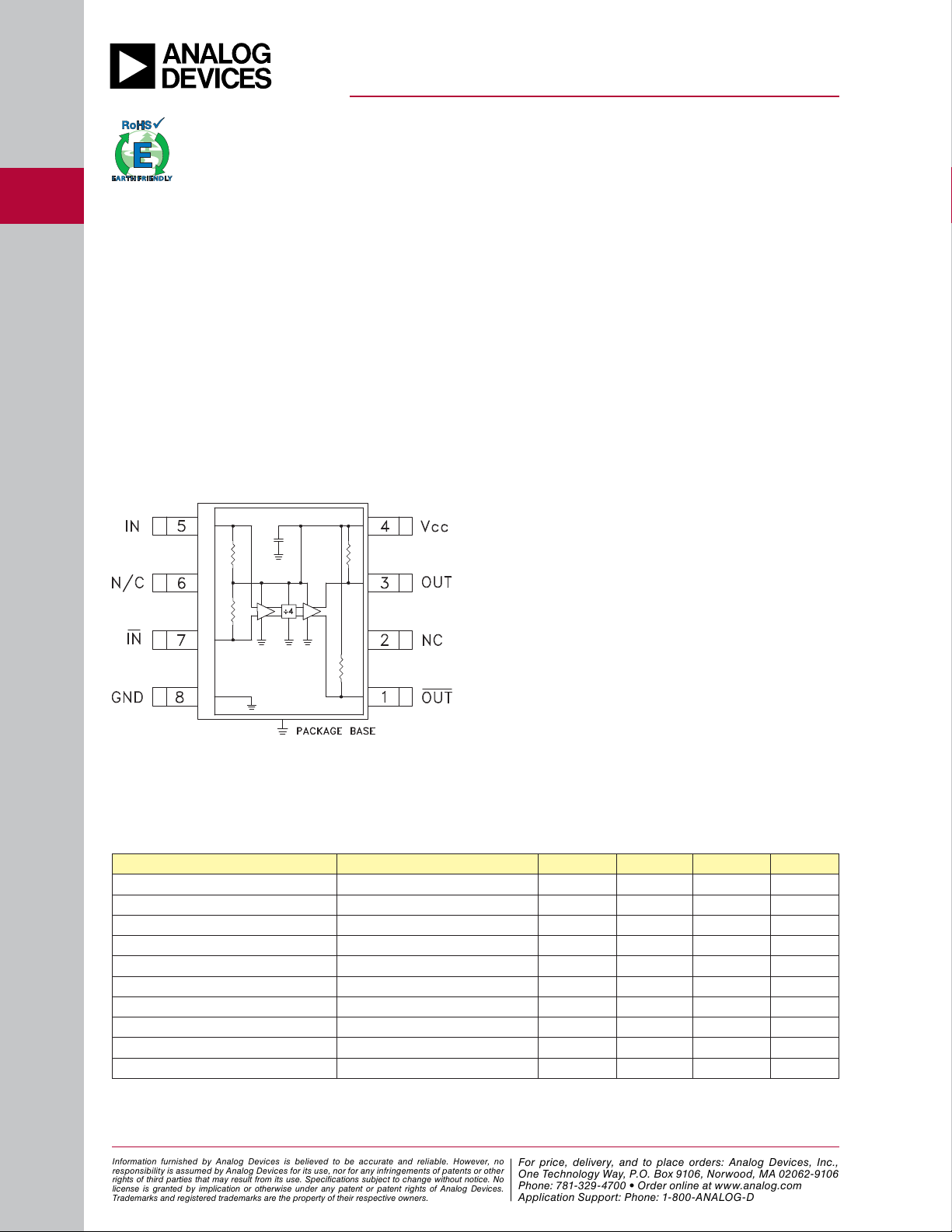

Functional Diagram
The HMC365S8G & HMC365S8GE are low noise
Divide-by-4 Static Dividers with InGaP GaAs HBT
technology in 8 lead surface mount plastic pack-
ages. This device operates from DC (with a square
wave input) to 13 GHz input frequency with a single
+5V DC supply. The low additive SSB phase noise
of -151 dBc/Hz at 100 kHz offset helps the user main-
tain good system noise performance.
Ultra Low SSB Phase Noise: -151 dBc/Hz
Wide Bandwidth
Output Power: 5 dBm
Single DC Supply: +5V
S8G SMT Package
Electrical Speci cations, T
A
= +25° C, 50 Ohm System, Vcc = 5V
Typical Applications
Prescaler for DC to Ku Band PLL Applications:
• Satellite Communication Systems
• Fiber Optic
• Point-to-Point and Point-to-Multi-Point Radios
• VSAT
Parameter Conditions Min. Typ. Max. Units
Maximum Input Frequency 13 14 GHz
Minimum Input Frequency Sine Wave Input. [1} 0.2 0.5 GHz
Input Power Range Fin = 1 to 8 GHz -15 >-20 +10 dBm
Fin = 8 to 11 GHz -10 >-15 +3 dBm
Fin = 11 to 13 GHz -5 >-8 +3 dBm
Output Power Fin = 13 GHz 2 5 dBm
Reverse Leakage Both RF Outputs Terminated 45 dB
SSB Phase Noise (100 kHz offset) Pin = 0 dBm, Fin = 6 GHz -151 dBc/Hz
Output Transition Time Pin = 0 dBm, Fout = 882 MHz 100 ps
Supply Current (Icc) 110 m A
1. Divider will operate down to DC for square-wave input signal.
HMC365S8G / 365S8GE
SMT GaAs HBT MMIC
DIVIDE-BY-4, DC - 13 GHz
v04.0506
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
