For price, delivery, and to place orders, please contact Hittite Microwave Corporation:
20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
Order On-line at www.hittite.com
11
11 - 28
LINEAR & POWER AMPLIFIERS - SMT
General Description
Features

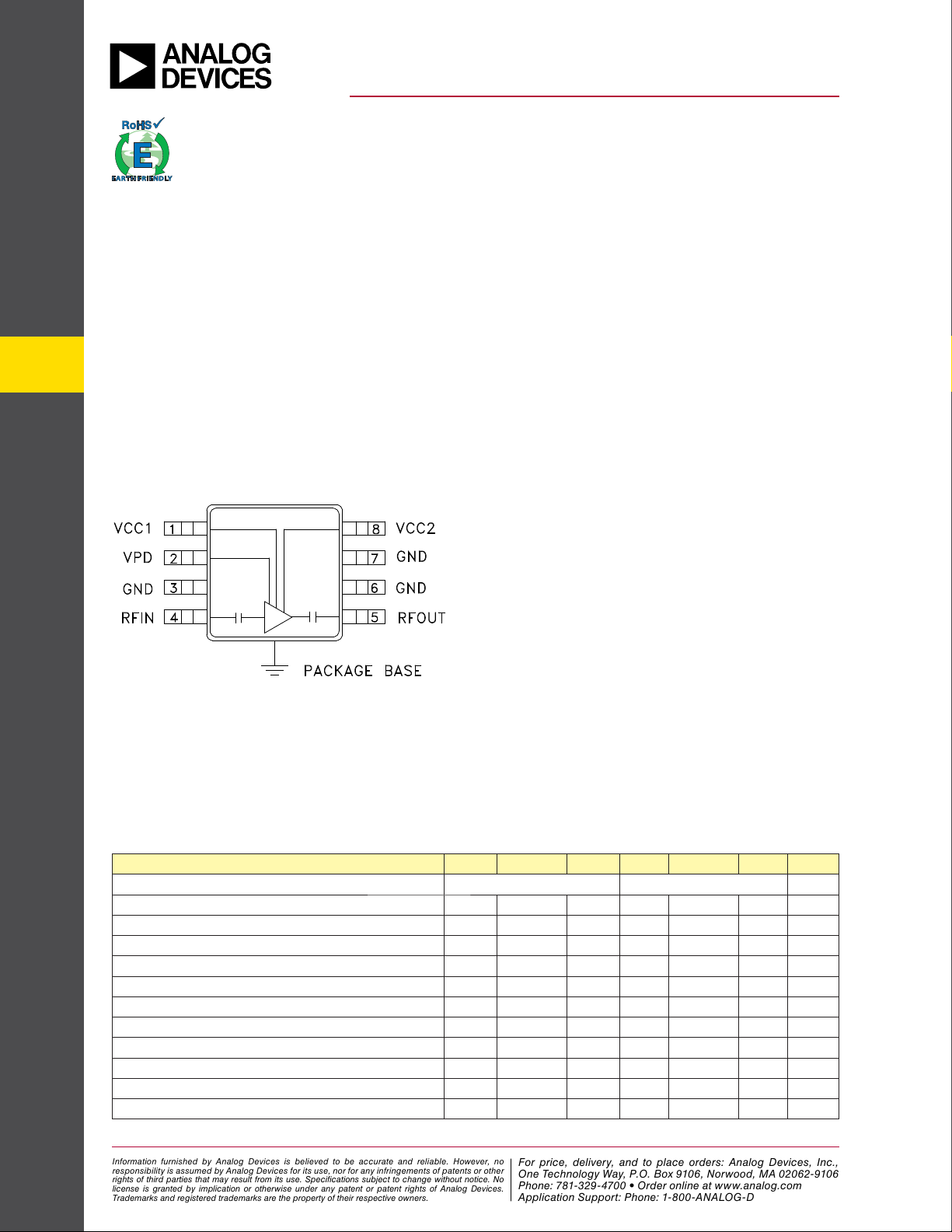

Functional Diagram
The HMC407MS8G & HMC407MS8GE are high
efficiency GaAs InGaP Heterojunction Bipolar
Transistor (HBT) MMIC Power ampli ers which
operate between 5 and 7 GHz. The ampli er requires
no external matching to achieve operation and is
thus truly 50 Ohm matched at input and output. The
ampli er is packaged in a low cost, surface mount
8 leaded package with an exposed base for im-
proved RF and thermal performance. The ampli er
provides 15 dB of gain, +29 dBm of saturated power
at 28% PAE from a +5V supply voltage. Power down
capability is available to conserve current consum-
ption when the ampli er is not in use.
Gain: 15 dB
Saturated Power: +29 dBm
28% PAE
Supply Voltage: +5V
Power Down Capability
No External Matching Required
Electrical Speci cations, T
A
= +25° C, Vs = 5V, Vpd = 5V
Typical Applications
This ampli er is ideal for use as a power
ampli er for 5 - 7 GHz applications:
• UNII
• HiperLAN
Parameter Min. Typ. Max. Min. Typ. Max. Units
Frequency Range 5 - 7 5.6 - 6.0 GHz
Gain 10 15 18 12 15 18 dB
Gain Variation Over Temperature 0.025 0.035 0.025 0.035 dB/ °C
Input Return Loss 12 12 dB
Output Return Loss 15 15 dB
Output Power for 1 dB Compression (P1dB) 21 25 22 25 dBm
Saturated Output Power (Psat) 29 29 dBm
Output Third Order Intercept (IP3) 32 37 36 40 dBm
Noise Figure 5.5 5.5 dB
Supply Current (Icq) Vpd = 0V/5V 0.002 / 230 0.002 / 230 mA
Control Current (Ipd) Vpd = 5V 7 7 mA
Switching Speed tON, tOFF 30 30 ns
HMC407MS8G / 407MS8GE
GaAs InGaP HBT MMIC
POWER AMPLIFIER, 5 - 7 GHz
v03.1006
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
