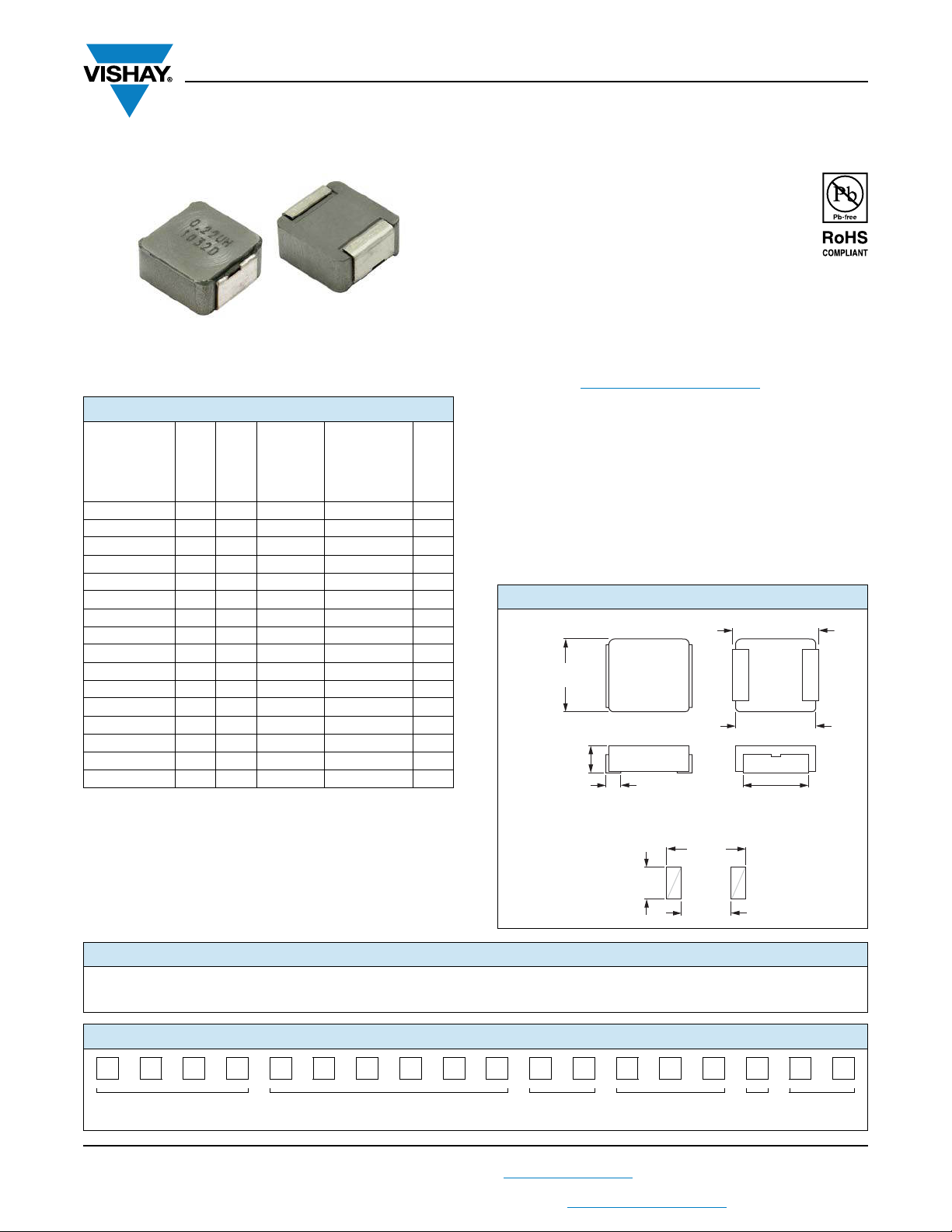

IHLP-3232DZ-11
www.vishay.com
Vishay Dale
Revision: 21-Aug14
1
Document Number: 34313
For technical questions, contact: magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Low Profile, High Current IHLP
®
Inductors
Manufactured under one or more of the following:
US Patents; 6,198,375/6,204,744/6,449,829/6,460,244.
Several foreign patents, and other patents pending.
Notes
(1)
All test data is referenced to 25 °C ambient
(2)
Operating temperature range -55 °C to +125 °C
(3)
DC current (A) that will cause an approximate T of 40 °C
(4)
DC current (A) that will cause L
0
to drop approximately 20 %
(5)
The part temperature (ambient + temp. rise) should not exceed
125 °C under worst case operating conditions. Circuit design,
component placement, PWB trace size and thickness, airflow
and other cooling provisions all affect the part temperature. Part
temperature should be verified in the end application.
FEATURES
• Shielded construction
• Excellent DC/DC energy storage up to 1 MHz to
2 MHz. Filter inductor applications up to SRF
(see “Standard Electrical Specifications” table)
• Operating temperature up to 125 °C
• Lowest DCR/μH, in this package size
• Handles high transient current spikes without saturation
• Ultra low buzz noise, due to composite construction
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
APPLICATIONS
• PDA/notebook/desktop/server applications
• High current POL converters
• Low profile, high current power supplies
• Battery powered devices
• DC/DC converters in distributed power systems
• DC/DC converter for Field Programmable Gate Array
(FPGA)
STANDARD ELECTRICAL SPECIFICATIONS
L
0
INDUCTANCE
± 20 %
AT 100 kHz,
0.25 V, 0 A
(μH)
DCR
TYP.
25 °C
(m)
DCR
MAX.
25 °C
(m)
HEAT
RATING
CURRENT
DC TYP.
(A)
(3)
SATURATION
CURRENT
DC TYP.
(A)
(4)
SRF
TYP.
(MHz)
0.22 1.26 1.35 34.0 22.0 117
0.33 2.01 2.15 27.5 16.0 108
0.47 2.22 2.38 25.0 14.0 80
0.68 3.01 3.22 22.2 14.5 62
0.82 3.63 3.88 19.5 15.0 57
1.0 4.33 4.63 18.2 12.0 49
2.2 8.8 9.41 14.5 10.2 25
3.3 14.0 14.9 10.5 9.7 22
4.7 21.1 22.6 8.0 8.7 17
5.6 26.7 28.6 7.4 7.6 15
6.8 31.2 33.4 7.0 6.7 13
8.2 42.1 45.0 5.7 6.6 12.6
10.0 48.4 51.8 5.4 6.4 12
15.0 61.0 65.3 4.9 3.7 10.3
22.0 88.0 94.2 4.3 3.3 8.2
33.0 135 144 3.2 3.2 6.7
DIMENSIONS in inches [millimeters]
Typical Pad Layout
0.190
[4.826]
0.380
[9.652]
0.210
[5.334]
0.322 ± 0.003
[8.18 ± 0.076]
0.322 ± 0.003
[8.18 ± 0.076]
0.054 ± 0.015
[1.372 ± 0.318]
0.158
[4.0]
Max.
0.200 ± 0.003
[5.08 ± 0.076]
0.340 ± 0.01
[8.64 ± 0.254]
DESCRIPTION
IHLP-3232DZ-11 33 μH ± 20 % ER e3
MODEL INDUCTANCE VALUE INDUCTANCE TOLERANCE PACKAGE CODE JEDEC
®
LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
IHLP3232DZER330M11
PRODUCT FAMILY SIZE PACKAGE
CODE
INDUCTANCE
VALUE
TOL. SERIES
