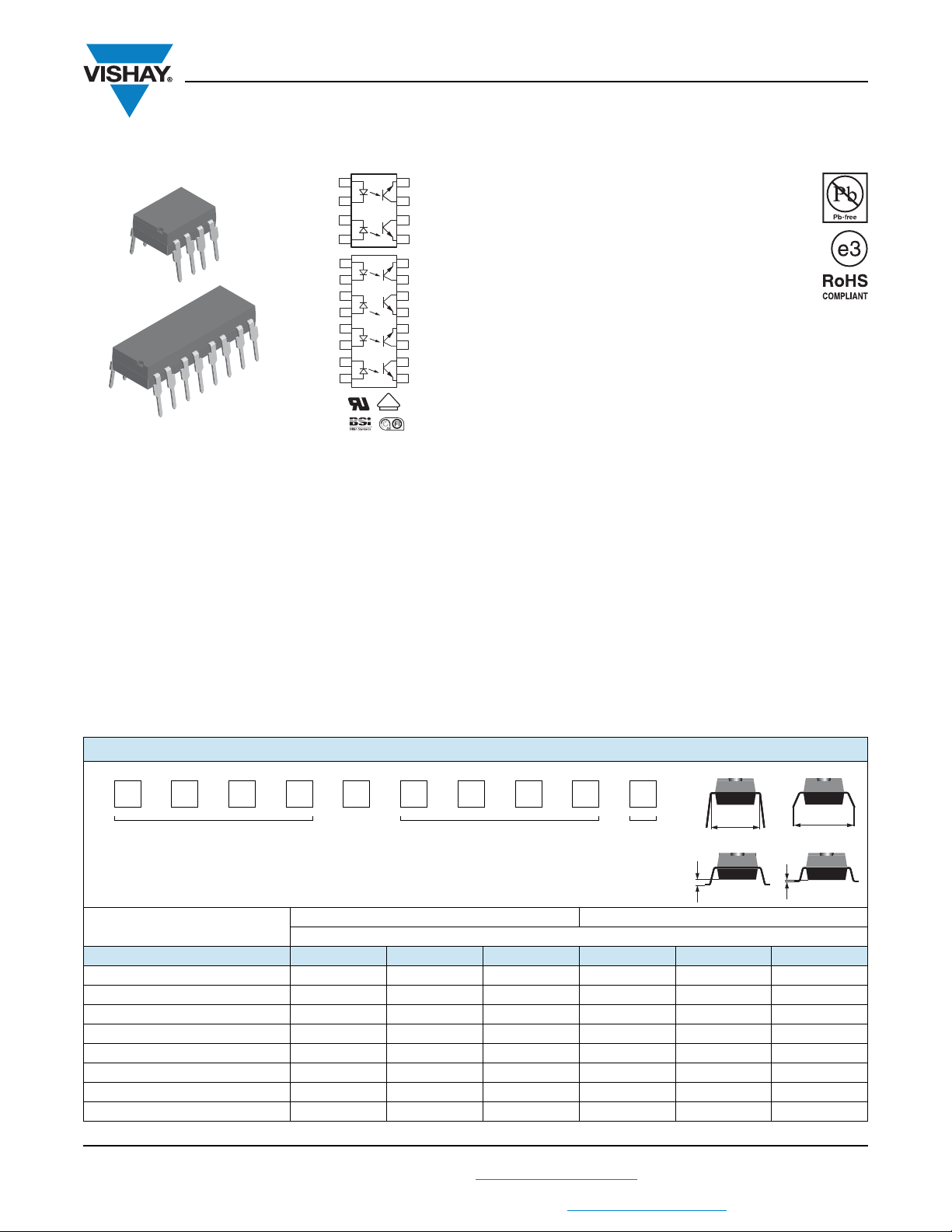

ILD1, ILD2, ILD5, ILQ1, ILQ2, ILQ5
www.vishay.com
Vishay Semiconductors
Rev. 1.8, 28-Jun-11
1
Document Number: 83646
For technical questions, contact: optocoupleranswers@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Optocoupler, Phototransistor Output (Dual, Quad Channel)
DESCRIPTION
The ILD1, ILD2, ILD5, ILQ1, ILQ2, ILQ5 are optically coupled
isolated pairs employing GaAs infrared LEDs and silicon
NPN phototransistor. Signal information, including a DC
level, can be transmitted by the drive while maintaining a
high degree of electrical isolation between input and output.
The ILD1, ILD2, ILD5, ILQ1, ILQ2, ILQ5 are especially
designed for driving medium-speed logic and can be used
to eliminate troublesome ground loop and noise problems.
Also these couplers can be used to replace relays and
transformers in many digital interface applications such as
CTR modulation.
The ILD1, ILD2, ILD5 has two isolated channels in a single
DIP package and the ILQ1, ILQ2, ILQ5 has four isolated
channels per package.
FEATURES
• Current transfer ratio at I
F
= 10 mA
• Isolation test voltage, 5300 V
RMS
• Compliant to RoHS Directive 2002/95/EC and
in accordance to WEEE 2002/96/EC
AGENCY APPROVALS
• UL1577, file no. E52744 system code H, double protection
• CSA 93751
• BSI IEC 60950; IEC 60065
• DIN EN 60747-5-2 (VDE 0884) available with option 1
•FIMKO
i179015-3
1
2
3
4
8
7
6
5
E
C
C
E
A
C
C
A
A
C
C
A
A
C
C
A
E
C
C
E
E
C
C
E
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
V
DE
i179012-1
Dual Channel
Quad Channel
ORDERING INFORMATION
ILx#-X0##T
PART NUMBER
x = D (Dual) or Q (Quad)
PACKAGE OPTION TAPE AND
REEL
AGENCY CERTIFIED/PACKAGE
DUAL CHANNEL QUAD CHANNEL
CTR (%)
UL, CSA, BSI, FIMKO 20 to 300 100 to 500 50 to 400 20 to 300 100 to 500 50 to 400
DIP-8 ILD1 ILD2 ILD5 - - -
DIP-8, 400 mil, option 6 - ILD2-X006 - - - -
SMD-8, option 7 ILD1-X007T
(1)
ILD2-X007T
(1)
----
SMD-8, option 9 ILD1-X009T
(1)
ILD2-X009T
(1)
ILD5-X009T
(1)
---
DIP-16 - - - ILQ1 ILQ2 ILQ5
DIP-16, 400 mil, option 6 - - - ILQ1-X006 ILQ2-X006 -
SMD-16, option 7 - - - ILQ1-X007 ILQ2-X007T
(1)
-
SMD-16, option 9 - - - ILQ1-X009T
(1)
ILQ2-X009T
(1)
ILQ5-X009T
(1)
> 0.1 mm
10.16 mm
> 0.7 mm
7.62 mm
DIP-#
Option 7
Option 6
Option 9
