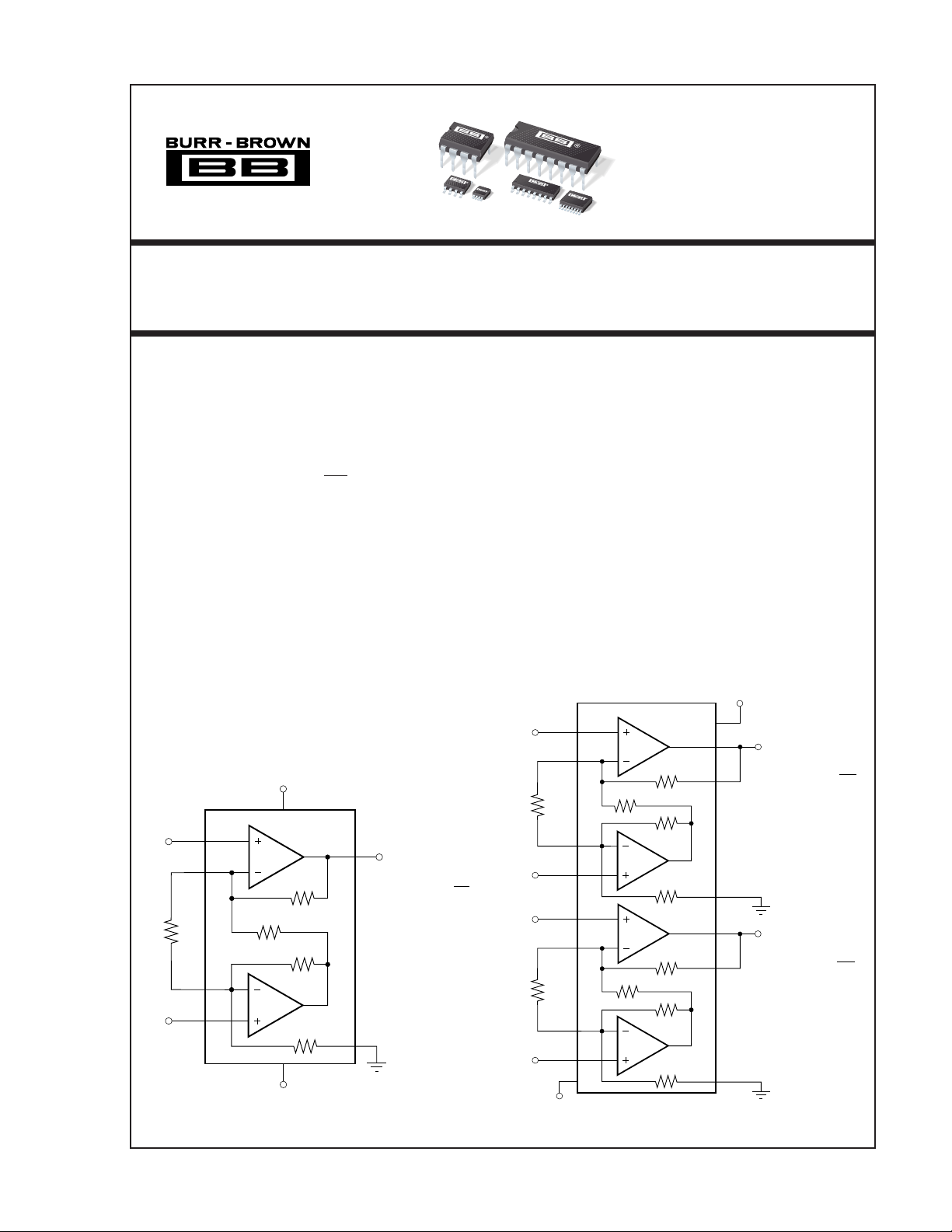

©1996 Burr-Brown Corporation PDS-1365C Printed in U.S.A. September, 1997
®
INA126
INA2126
Micro
POWER INSTRUMENTATION AMPLIFIER
Single and Dual Versions
FEATURES
● LOW QUIESCENT CURRENT: 175µA/chan.
● WIDE SUPPLY RANGE:
±1.35V to ±18V
● LOW OFFSET VOLTAGE: 250
µV max
● LOW OFFSET DRIFT: 3
µV/°C max
● LOW NOISE: 35nV/√Hz
● LOW INPUT BIAS CURRENT: 25nA max
● 8-PIN DIP, SO-8, MSOP-8 SURFACE- MOUNT
DUAL: 16-Pin DIP, SO-16, SSOP-16
DESCRIPTION
The INA126 and INA2126 are precision instrumentation
amplifiers for accurate, low noise differential signal acquisi-
tion. Their two-op-amp design provides excellent perfor-
mance with very low quiescent current (175µA/chan.). This,
combined with wide operating voltage range of ±1.35V to
±18V, makes them ideal for portable instrumentation and data
acquisition systems.
Gain can be set from 5V/V to 10000V/V with a single
external resistor. Laser trimmed input circuitry provides
low offset voltage (250µV max), low offset voltage drift
(3µV/°C max) and excellent common-mode rejection.
Single version package options include 8-pin plastic DIP,
SO-8 surface mount, and fine-pitch MSOP-8 surface-mount.
Dual version is available in the space-saving SSOP-16 fine-
pitch surface mount, SO-16, and 16-pin DIP. All are speci-
fied for the –40°C to +85°C industrial temperature range.
APPLICATIONS
● INDUSTRIAL SENSOR AMPLIFIER:
Bridge, RTD, Thermocouple
● PHYSIOLOGICAL AMPLIFIER:
ECG, EEG, EMG
● MULTI-CHANNEL DATA ACQUISITION
● PORTABLE, BATTERY OPERATED SYSTEMS
40kΩ
10kΩ
10kΩ
40kΩ
INA126
5
4
2
1
8
3
7
6
R
G
V
IN
–
V
IN
+
V+
V–
V
O
= (V
IN
– V
IN
) G
–+
80k
R
G
G = 5 +
INA126
INA2126
INA2126
INA126
INA2126
40kΩ
10kΩ
10kΩ
40kΩ
INA2126
5
7
8
1
3
4
2
9
6
R
G
V
IN
–
V
IN
+
V+
V–
V
O
= (V
IN
– V
IN
) G
–
+
80k
R
G
G = 5 +
V
O
= (V
IN
– V
IN
) G
–
+
80k
R
G
G = 5 +
40kΩ
10kΩ
10kΩ
40kΩ
12
16
14
13
15
11
10
R
G
V
IN
–
V
IN
+
