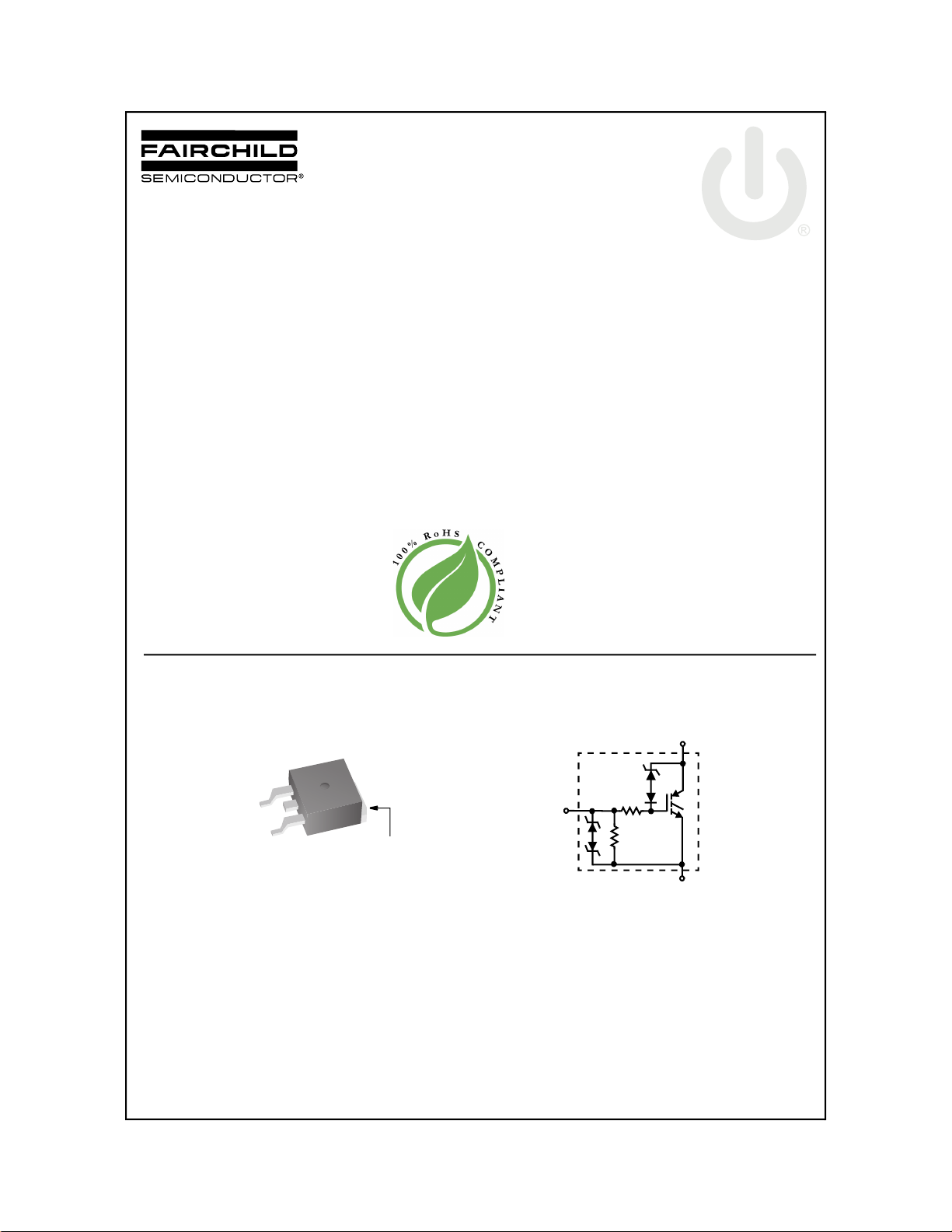

ISL9V5045S3ST_F085 N-Channel Ignition IGBT
ISL9V5045S3ST_F085 Rev. A1
www.fairchildsemi.com1
ISL9V5045S3ST_F085
EcoSPARK
N-Channel Ignition IGBT
500mJ, 450V
Features
SCIS Energy = 500mJ at T
J
= 25
o
C
Logic Level Gate Drive
Applications
Automotive Ignition Coil Driver Circuits
Coil - On Plug Applications
General Description
The ISL9V5045S3ST_F085 is next generation ignition IGBT
that offer outstanding SCIS capability in the industry
standard D2-Pak (TO-263) plastic package. This device
is intended for use in automotive ignition circuits,
specifically as a coil drivers. Internal diodes provide voltage
clamping without the need for external components.
devices can be custom made to specific
clamp voltages. Contact your nearest Fairchild sales office
for more information.
Package
GATE
COLLECTOR
EMITTER
R
2
R
1
Symbol
JEDEC TO-263AB
GATE
EMITTER
COLLECTOR
(FLANGE)
D
2
-Pak
Qualified to AEC Q101
RoHS Compliant
®
EcoSPARK
®
