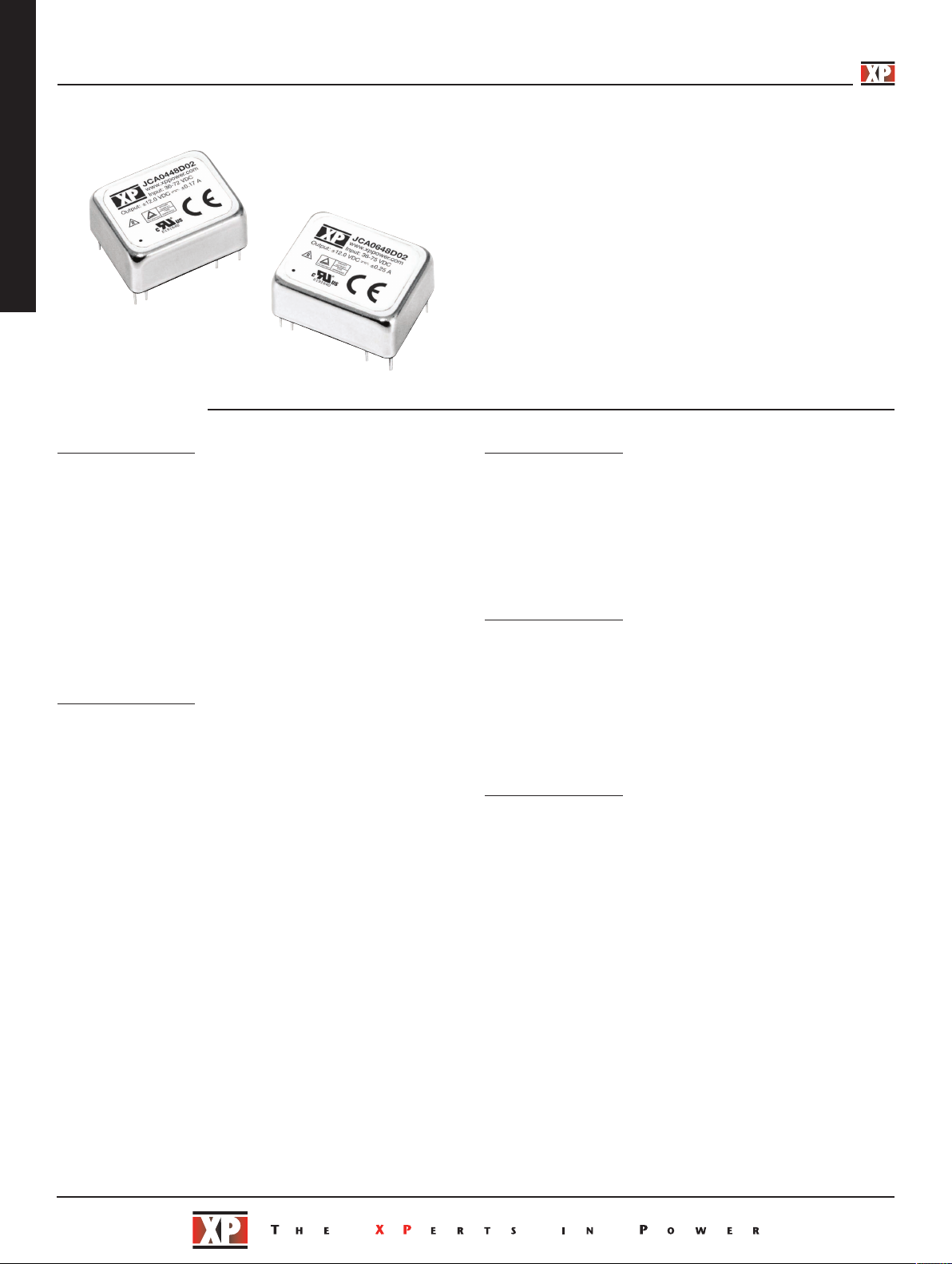

DCDC
Specification
4/6 Watts
• Compact 1.0” x 0.8” Metal Package
• Industry Standard Pin Out
• 2:1 Input Range
• Single & Dual Outputs
• Operating Temperature 40 °C to +100 °C
• UL & TUV Approved
• 3 Year Warranty
JCA Series
Input
Input Voltage Range • 5 V (4.5-9.0 VDC), 12 V (9-18 VDC)
24 V (18-36 VDC), 48 V (36-75 VDC)
Input Current • See table
Input Filter • Pi network
Undervoltage Lockout • Turn On at >90-95% of rated input
Turn Off at <80% of rated input
Input Surge • 5 V models 10 V for 1 s max,
12 V models 25 V for 1 s max,
24 V models 50 V for 1 s max,
48 V models 100 V for 1 s max
Input Reflected Ripple • 80 mA for 5 V models
30 mA for all other models
Output
Output Voltage • See table
Initial Set Accuracy • ±1% max
Start Up Delay • 200 ms max
Start Up Rise Time • 3.5 ms typical
Minimum Load • No minimum load required
Line Regulation • ±0.3%
Load Regulation • ±1%
Cross Regulation • ±5% on dual output models
Transient Response • 4% max deviation, recovery to within
1% in <500 µs for a 25% load change
at 1 A/µs
Ripple & Noise • 50 mV pk-pk, 20 MHz bandwidth
Overcurrent Protection • 150% typical, trip & restart
(hiccup mode)
Short Circuit Protection • Continuous with auto recovery
Overvoltage Protection • 150% typical, Recycle input to reset
Temperature • ±0.05%/°C
Coefficient
xppower.com
General
Efficiency • See table
Isolation • 1500 VDC Input to Output, basic insulation
500 VDC Input to Case
500 VDC Output to Case
Switching Frequency • 300 kHz typical
Power Density • JCA04: 12.5 W/in
3
, JCA06: 18.8 W/in
3
MTBF • 1.0 MHrs to MIL-HDBK-217F at 25 °C, GB
Environmental
Operating Temperature • -40 °C to +100 °C output power derates
from 100% load at +75 °C linearly to
0% load at +100 °C
Case Temperature • +100 °C max
Storage Temperature • -55 °C to +125 °C
Cooling • Convection cooled
Operating Humidity • Up to 95% RH, non-condensing
EMC & Safety
Emissions • EN55022, level A conducted & radiated
(level B with external components,
see application note)
ESD Immunity • EN61000-4-2, level 2 Perf Criteria A
Radiated Immunity • EN61000-4-3 3 V/m Perf Criteria A
Conducted Immunity • EN61000-4-6 3 V rms Perf Criteria A
Magnetic Fields • EN61000-4-8, 10 A/m, Perf Criteria A
Safety Approvals • EN60950-1, UL60950-1,
CSA C22.2 No. 60950-1-03,
CE Mark LVD
