06-May-09
DC-DC
Application Notes
JCH10

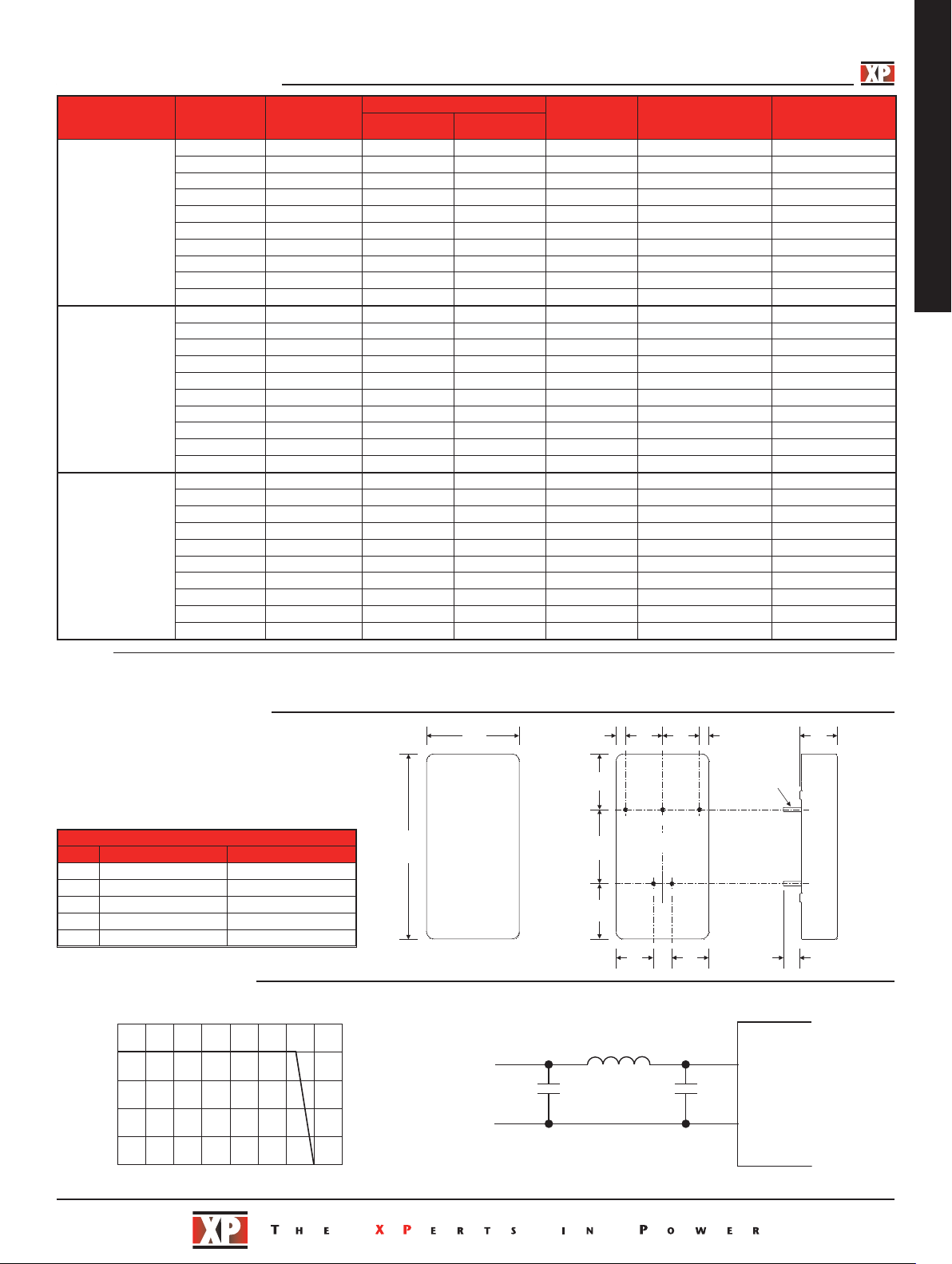

Models and Ratings
Derating Curve
Notes
1. Measured at nominal input voltage.
Mechanical Details
Input Voltage
Output
Voltage
Output
Current
Input Current
(1)
Efficiency
Maximum
Capacitive Load
Model Number
No Load Full Load
9-18 VDC
3.3 V 2000 mA 30 mA 705 mA 78% 2200 µF JCH1012S3V3†^
5.0 V 2000 mA 30 mA 1016 mA 82% 2200 µF JCH1012S05†^
12.0 V 833 mA 30 mA 992 mA 84% 680 µF JCH1012S12†^
15.0 V 666 mA 30 mA 992 mA 84% 470 µF JCH1012S15†^
24.0 V 416 mA 30 mA 980 mA 85% 330 µF JCH1012S24
±3.3 V ±1000 mA 30 mA 1068 mA 78% ±1000 µF JCH1012D03†^
±5.0 V ±1000 mA 30 mA 1016 mA 82% ±1000 µF JCH1012D05†^
±12.0 V ±416 mA 30 mA 992 mA 84% ±470 µF JCH1012D12†^
±15.0 V ±333 mA 30 mA 980 mA 85% ±330 µF JCH1012D15†^
±24.0 V ±208 mA 40 mA 980 mA 85% ±220 µF JCH1012D24
18-36 VDC
3.3 V 2000 mA 25 mA 352 mA 78% 2200 µF JCH1024S3V3†^
5.0 V 2000 mA 25 mA 508 mA 82% 2200 µF JCH1024S05†^
12.0 V 833 mA 25 mA 496 mA 84% 680 µF JCH1024S12†^
15.0 V 666 mA 25 mA 490 mA 85% 470 µF JCH1024S15†^
24.0 V 416 mA 25 mA 484 mA 86% 330 µF JCH1024S24
±3.3 V ±1000 mA 25 mA 352 mA 78% ±1000 µF JCH1024D03†^
±5.0 V ±1000 mA 25 mA 508 mA 82% ±1000 µF JCH1024D05†^
±12.0 V ±416 mA 25 mA 496 mA 84% ±470 µF JCH1024D12†^
±15.0 V ±333 mA 25 mA 496 mA 86% ±330 µF JCH1024D15†^
±24.0 V ±208 mA 30 mA 490 mA 85% ±220 µF JCH1024D24
36-72 VDC
3.3 V 2000 mA 20 mA 176 mA 78% 2200 µF JCH1048S3V3†^
5.0 V 2000 mA 20 mA 251 mA 83% 2200 µF JCH1048S05†^
12.0 V 833 mA 20 mA 248 mA 84% 680 µF JCH1048S12†^
15.0 V 666 mA 20 mA 248 mA 84% 470 µF JCH1048S15†^
24.0 V 416 mA 20 mA 245 mA 86% 330 µF JCH1048S24
±3.3 V ±1000 mA 20 mA 176 mA 78% ±1000 µF JCH1048D03†^
±5.0 V ±1000 mA 20 mA 254 mA 82% ±1000 µF JCH1048D05†^
±12.0 V ±416 mA 20 mA 245 mA 85% ±470 µF JCH1048D12†^
±15.0 V ±333 mA 20 mA 245 mA 85% ±330 µF JCH1048D15†^
±24.0 V ±208 mA 25 mA 242 mA 86% ±220 µF JCH1048D24
1.00
(25.40)
2.00
(50.80)
0.60
(15.24)
0.80
(20.32)
0.60
(15.24)
0.40
(10.16)
0.20
(5.08)
0.40
(10.16)
0.10
(2.54)
0.40
(10.16)
0.40
(10.16)
0.10
(2.54)
Bottom View
0.40
(10.16)
DIA.
0.04
(1.00)
0.20
(5.08)
min
34
12
5
All dimensions are in inches (mm)
Weight: 0.07lbs (30 g)
Pin diameter tolerance: ±0.002 (±0.05)
Pin pitch tolerance: ±0.014 (±0.35)
Case tolerance: ±0.02 (±0.50)
Output Power (%)
Ambient Temperature (°C)
100
75
50
25
-40
-20 0 20
40
60 80
100
120
125
Input Filter
12 µH
68 µF
33 µF
+Vin
-Vin
+
-
PIN CONNECTIONS
Pin Single Dual
1 +Vin +Vin
2 -Vin -Vin
3 +Vout +Vout
4 No Pin Com
5 -Vout -Vout
† Available from Farnell. See pages 266-269. ^ Available from Newark. See pages 270-272.
