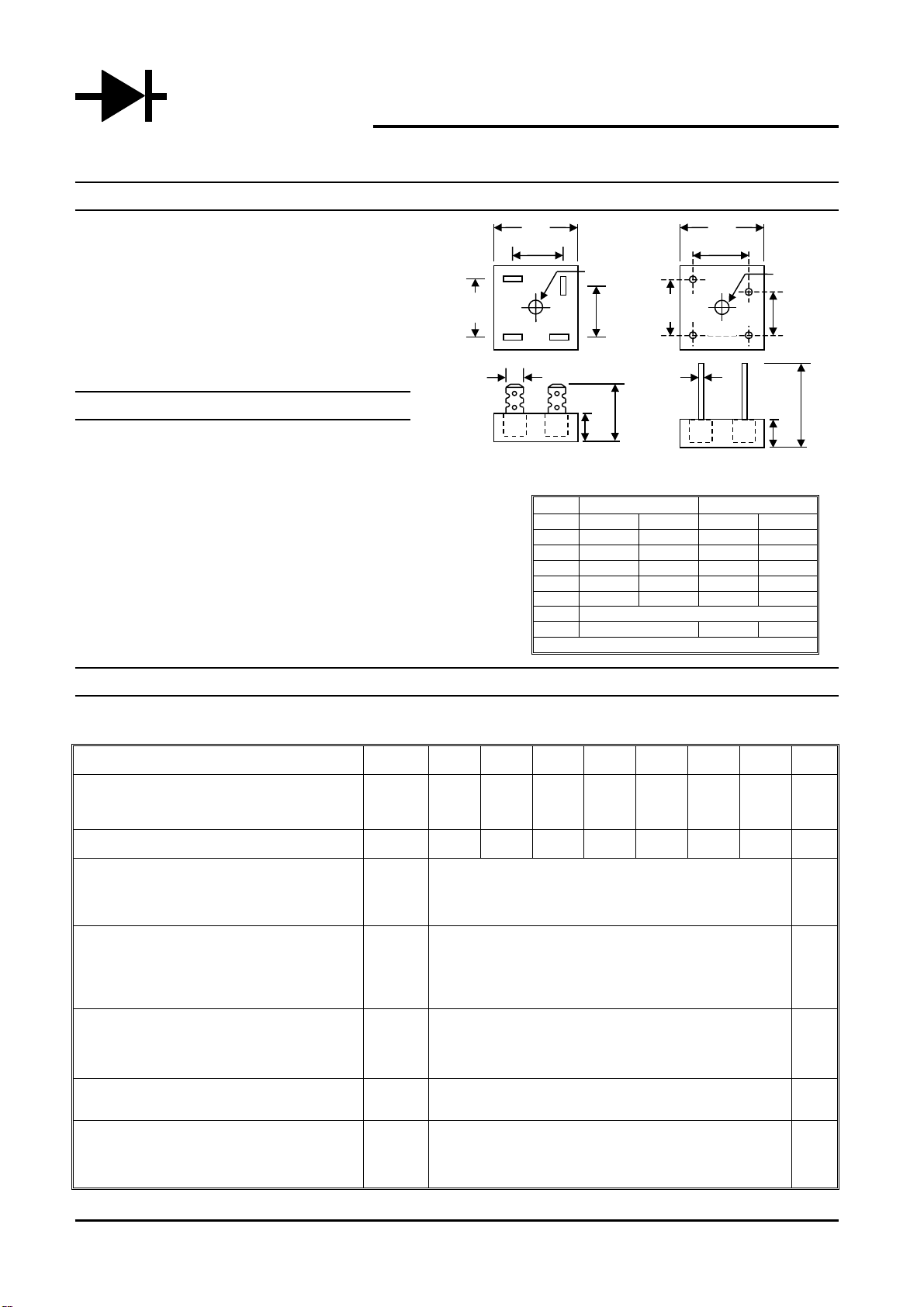

KBPC15, 25, 35/W SERIES 1 of 4 © 2002 Won-Top Electronics
KBPC15, 25, 35/W SERIES
15, 25, 35A HIGH CURRENT BRIDGE RECTIFIER
Features
!
Diffused Junction A A
!
Low Reverse Leakage Current C C
!
Low Power Loss, High Efficiency G G
!
Electrically Isolated Metal Case for ~ ~ +
Maximum Heat Dissipation D + C C
!
Case to Terminal Isolation Voltage 2500V - ~ - ~ D
!
UL Recognized File # E157705
H H
Mechanical Data
E E
!
Case: Metal Case with Electrically B B
Isolated Epoxy
!
Terminals: Plated Leads Solderable per
KBPC
KBPC-W
MIL-STD-202, Method 208
!
Polarity: Symbols Marked on Case
!
Mounting: Through Hole for #10 Screw
!
Weight: KBPC 31.6 grams (approx.)
KBPC-W 28.5 grams (approx.)
!
Marking: Type Number
"W” Suffix Designates Wire Leads
No Suffix Designates Faston Terminals
Maximum Ratings and Electrical Characteristics
@T
A
=25°C unless otherwise specified
Single Phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristics Symbol -00/W -01/W -02/W -04/W -06/W -08/W -10/W Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
V
RRM
V
RWM
V
R
50 100 200 400 600 800 1000 V
RMS Reverse Voltage V
R(RMS)
35 70 140 280 420 560 700 V
Average Rectifier Output Current
@T
C
= 60°C
KBPC15
KBPC25
KBPC35
I
O
15
25
35
A
Non-Repetitive Peak Forward Surge
Current 8.3ms single half sine-wave
Superimposed on rated load
(JEDEC Method)
KBPC15
KBPC25
KBPC35
I
FSM
300
400
400
A
Forward Voltage Drop
(per element)
KBPC15 @I
F
= 7.5A
KBPC25 @I
F
= 12.5A
KBPC35 @I
F
= 17.5A
V
FM
1.2 V
Peark Reverse Current @T
C
= 25°C
At Rated DC Blocking Voltage @T
C
= 125°C
I
RM
10
1.0
µA
mA
I
2
t Rating for Fusing (t < 8.3ms)
(Note 1)
KBPC15
KBPC25
KBPC35
I
2
t
373
373
664
A
2
s
WTE
POWER SEMICONDUCTORS
KBPC KBPC-W
Dim Min Max Min Max
A
28.40 28.70 28.40 28.70
B
10.97 11.23 10.97 11.23
C
15.70 16.70 17.10 19.10
D
17.50 18.50 10.90 11.90
E
22.86 25.40 30.50 —
G
Hole for #10 screw, 5.08Ø Nominal
H
6.35 Typical 0.97Ø 1.07Ø
All Dimension in mm
