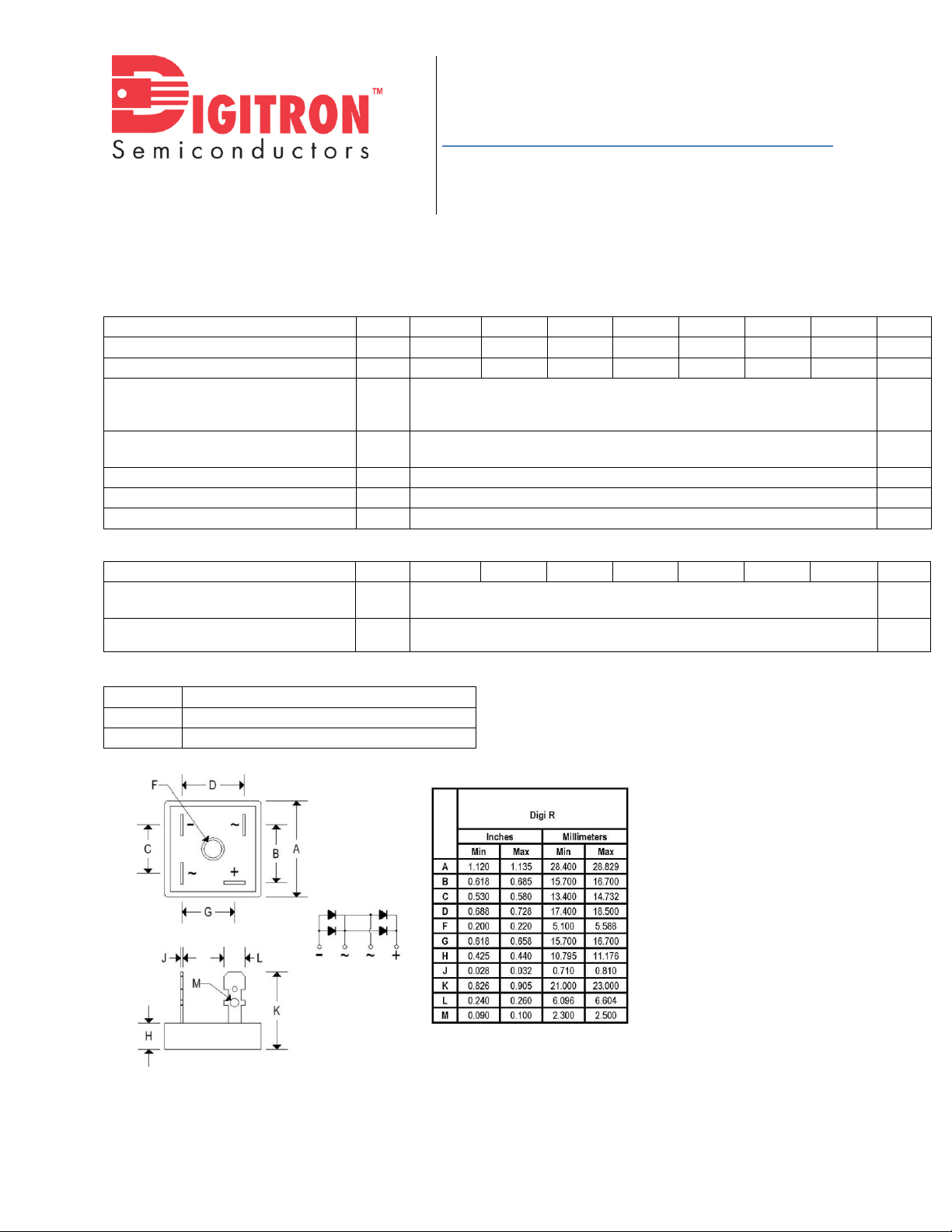

KBPC25005 SERIES
SINGLE PHASE BRIDGE RECTIFIER
Rev. 20160510
FEATURES
Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.
Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.
MAXIMUM RATINGS (T
A
= 25°C UNLESS OTHERWISE NOTED)
Rating
Symbol
KBPC25005
KBPC2501
KBPC2502
KBPC2504
KBPC2506
KBPC2508
Unit
Maximum repetitive peak reverse voltage
V
RRM
50
100
200
400
600
800
Volts
Maximum RMS voltage
V
RMS
35
70
140
280
420
560
Volts
Maximum average forward output rectified current
@ T
A
= 55°C
I
F(AV)
25
Amps
Peak forward surge current single half-sine wave
superimposed on rated load
I
FSM
300
Amps
Operating temperature range
T
C
-55 to +125
°C
Storage temperature range
T
stg
-55 to +150
°C
Typical junction capacitance
C
J
300
pF
ELECTRICAL CHARACTERISTICS (T
A
= 25°C unless otherwise specified)
Characteristic
Symbol
KBPC25005
KBPC2501
KBPC2502
KBPC2504
KBPC2506
KBPC2508
KBPC2510
Units
Maximum forward voltage drop per element
@ 12.5 peak
V
F
1.2
Volts
Maximum reverse current at rated DC blocking
voltage per element T
A
= 25°C
I
R
1.0
µA
MECHANICAL CHARACTERISTICS
Case
Digi R
Marking
Body painted, alpha-numeric
Pin out
See below
