KBPC2500W - KBPC2510WSILICON BRIDGE RECTIFIERS
PRV : 50 - 1000 Volts
Io : 25 Amperes
FEATURES :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free
MECHANICAL DATA :
* Case : Metal Case
* Epoxy : UL94V-O rate flame retardant
* Terminals : plated .25" (6.35 mm). Faston
* Polarity : Polarity symbols marked on case
* Mounting position : Bolt down on heat-sink with
silicone thermal compound between bridge
and mounting surface for maximum heat
transfer efficiency.
* Weight : 15.95 grams (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25 °C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
SYMBOL
KBPC
2500W
KBPC
2501W
KBPC
2502W
KBPC
2504W
KBPC
2506W
KBPC
2508W
KBPC
2510W
UNIT
Maximum Recurrent Peak Reverse Voltage VRRM 501002004006008001000 V
Maximum RMS Voltage VRMS 3570140280420560700 V
Maximum DC Blocking Voltage
VDC
501002004006008001000 V
Maximum Average Forward Current Tc = 55°C
IF(AV) 25 A
Peak Forward Surge Current Single half sine wave
Superimposed on rated load (JEDEC Method)
Current Squared Time at t < 8.3 ms.
I
2
t
375
A
2
S
Maximum Forward Voltage per Diode at IF = 12.5 A VF 1.1 V
Maximum DC Reverse Current Ta = 25 °C
IR 10
µA
at Rated DC Blocking Voltage Ta = 100 °C
IR(H) 200
µA
Typical Thermal Resistance (Note 1)
RθJC
1.45
°C/W
Operating Junction Temperature Range TJ - 40 to + 150
°C
Storage Temperature Range TSTG - 40 to + 150
°C
Note :
1. Thermal Resistance from junction to case with units mounted on a 5" x 6" x 4.9" (12.8cm.x 15.2cm.x 12.4cm.) Al.-Finned Plate
Page 1 of 2Rev. 01 : July 24, 2005
RATING
IFSM 300 A
BR50W

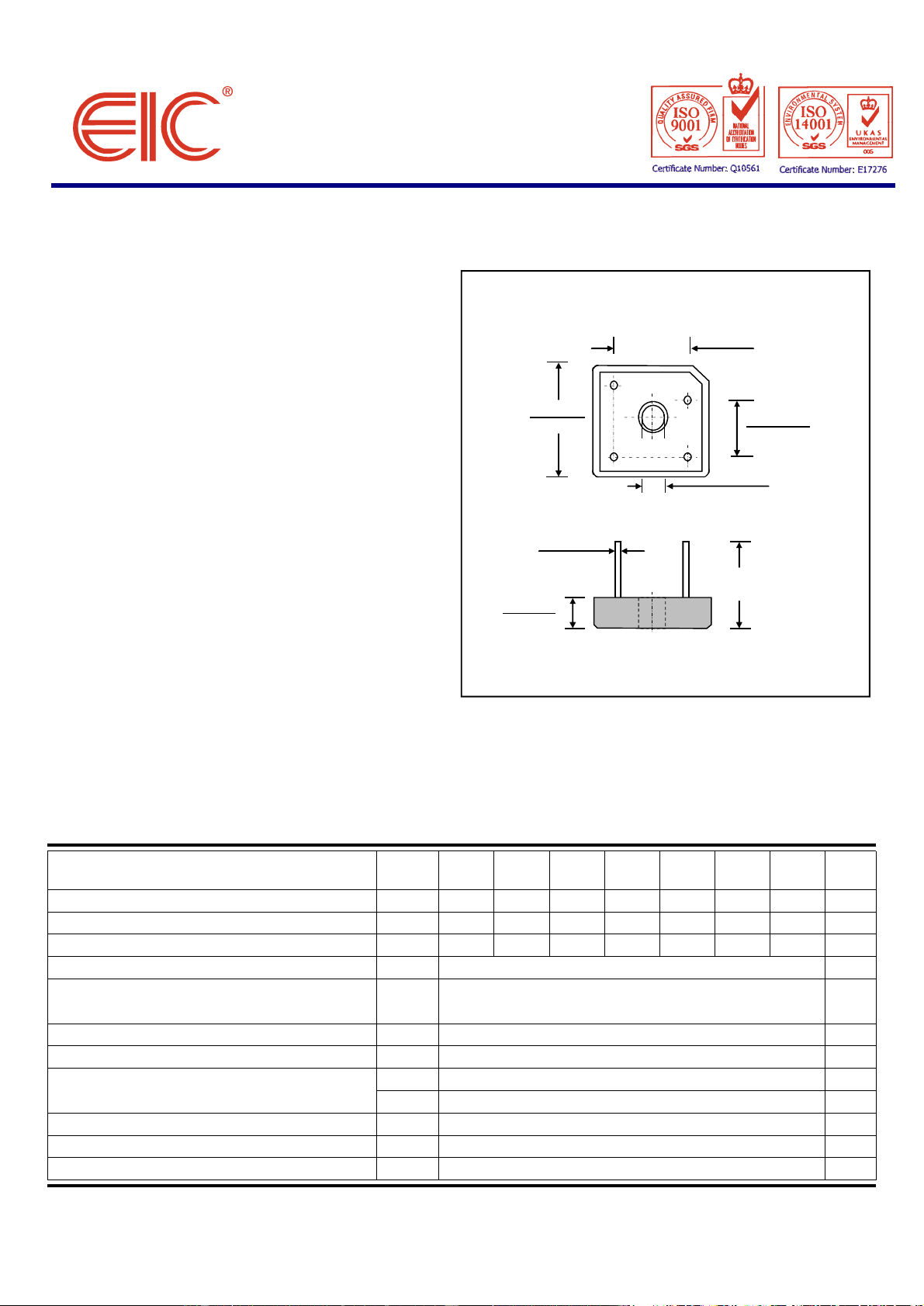

Dimensions in inches and ( millimeters )
0.042 (1.06)
0.038 (0.96)
0.310 (7.87)
0.280(7.11)
1.2 (30.5)
MIN
.
0.470 (11.9)
0.430 (10.9)
0.21 (5.3)
0.20 (5.1)
0.732 (18.6)
0.692 (17.5)
1.130 (28.7)
1.120 (28.4)
