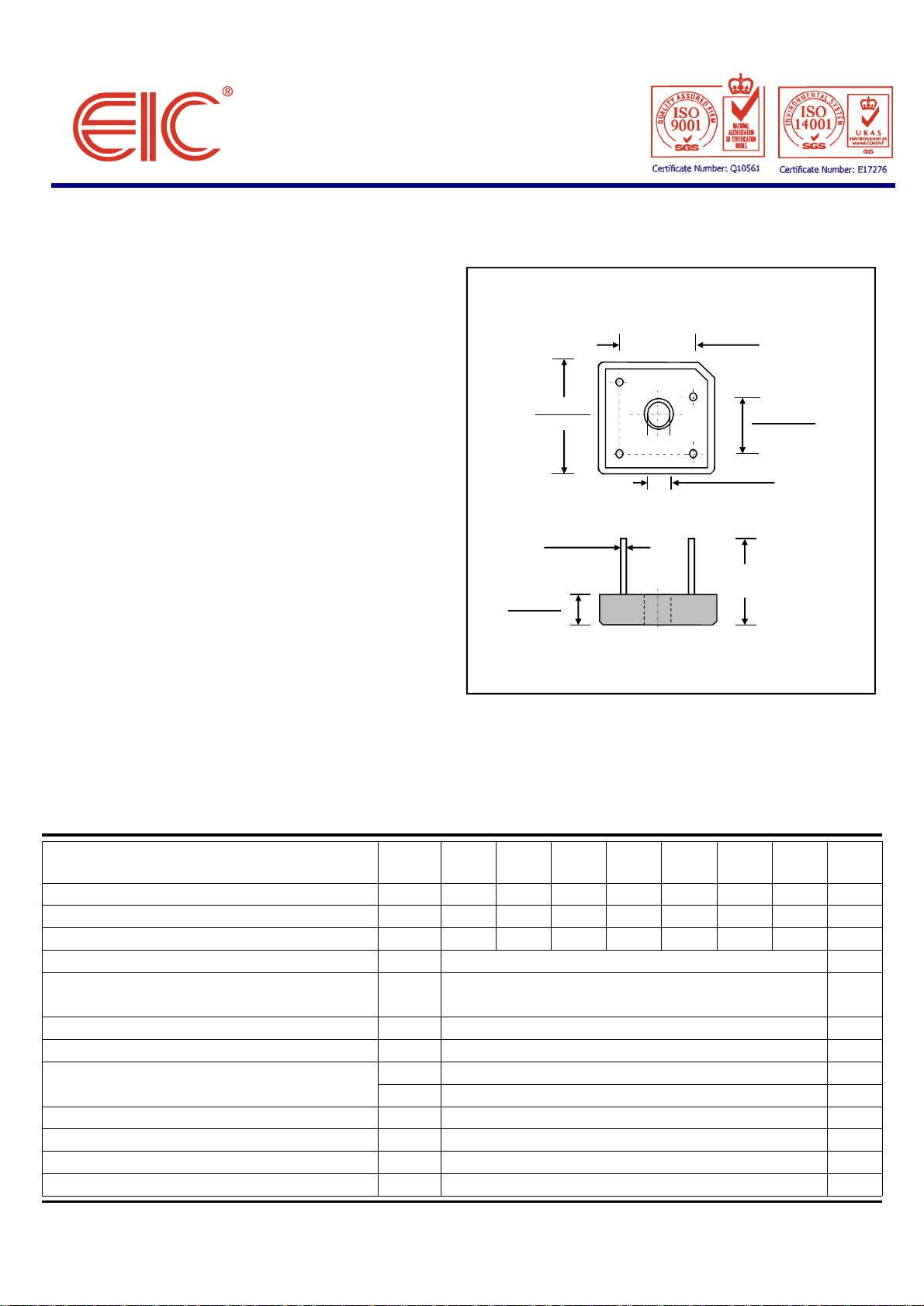

KBPC3500W - KBPC3510WSILICON BRIDGE RECTIFIERS
PRV : 50 - 1000 Volts
Io : 35 Amperes
FEATURES :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free
MECHANICAL DATA :
* Case : Metal Case
* Epoxy : UL94V-O rate flame retardant
* Terminals : plated .25" (6.35 mm). Faston
* Polarity : Polarity symbols marked on case
* Mounting position : Bolt down on heat-sink with
silicone thermal compound between bridge
and mounting surface for maximum heat
transfer efficiency.
* Weight : 17.1 grams(approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at
25
°
C ambient temperature unless otherwise specified
.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
SYMBOL
KBPC
3500W
KBPC
3501W
KBPC
3502W
KBPC
3504W
KBPC
3506W
KBPC
3508W
KBPC
3510W
UNIT
Maximum Recurrent Peak Reverse Voltage
VRRM
501002004006008001000
V
Maximum RMS Voltage
VRMS
3570140280420560700
V
Maximum DC Blocking Voltage
VDC
501002004006008001000
V
Maximum Average Forward Current Tc = 55°C
IF(AV)
35
A
Peak Forward Surge Current Single half sine wave
Superimposed on rated load (JEDEC Method)
Current Squared Time at t < 8.3 ms.
I
2
t
660
A
2
S
Maximum Forward Voltage per Diode at IF = 17.5 A
VF
1.1
V
Maximum DC Reverse Current Ta = 25 °C
IR
10
µA
at Rated DC Blocking Voltage Ta = 100 °C
IR(H)
200
µA
Typical Thermal Resistance (Note 1)
RθJC
1.5
°C/W
Typical Thermal Resistance at Junction to Ambient
RθJA
10
°C
Operating Junction Temperature Range
TJ
- 40 to + 150
°C
Storage Temperature Range
TSTG
- 40 to + 150
°C
Note :
1. Thermal Resistance from junction to case with units mounted on a 7.5" x 3.5" x 4.6" (19cm.x 9cm.x 11.8cm.) Al.-Finned Plate
Page 1 of 2Rev. 01 : July 24, 2005
RATING
IFSM
400
A
BR50W
Dimensions in inches and ( millimeters )
0.042 (1.06)
0.038 (0.96)
0.310 (7.87)
0.280(7.11)
1.2 (30.5)
MIN.
0.470 (11.9)
0.430 (10.9)
0.21 (5.3)
0.20 (5.1)
0.732 (18.6)
0.692 (17.5)
1.130 (28.7)
1.120 (28.4)
