Signal/Coax D-Sub connector
Specications:
Electrical:
Operating voltage : 250V AC / DC Max.
Signal Current rating : 5A Max.
High Power contact current rating : 20 or 40A
Coaxial Impedance : 50Ω (75Ω optional)
Contact resistance : 20MΩ Max. initial
Insulation resistance : 5,000 MΩ Min.
Dielectric withstanding voltage : 1,000V AC for 1 Minute
Description
Signal/Coax D-Sub connectors are a popular interface for many mixed signal I/O applica-
tions. Offered in ve shell sizes they are a good choice for a low cost industry standard
connection that requires utilization of standard signal and high performance, low impedance
signals either in signal-coax or signal - power choices. Connectors are manufactured with
precision stamped standard signal contacts and precision turned coax contacts. These con-
nectors are manufactured with precision stamped contacts offering a choice of contact plat-
ing and a wide selection of mating and mounting options.

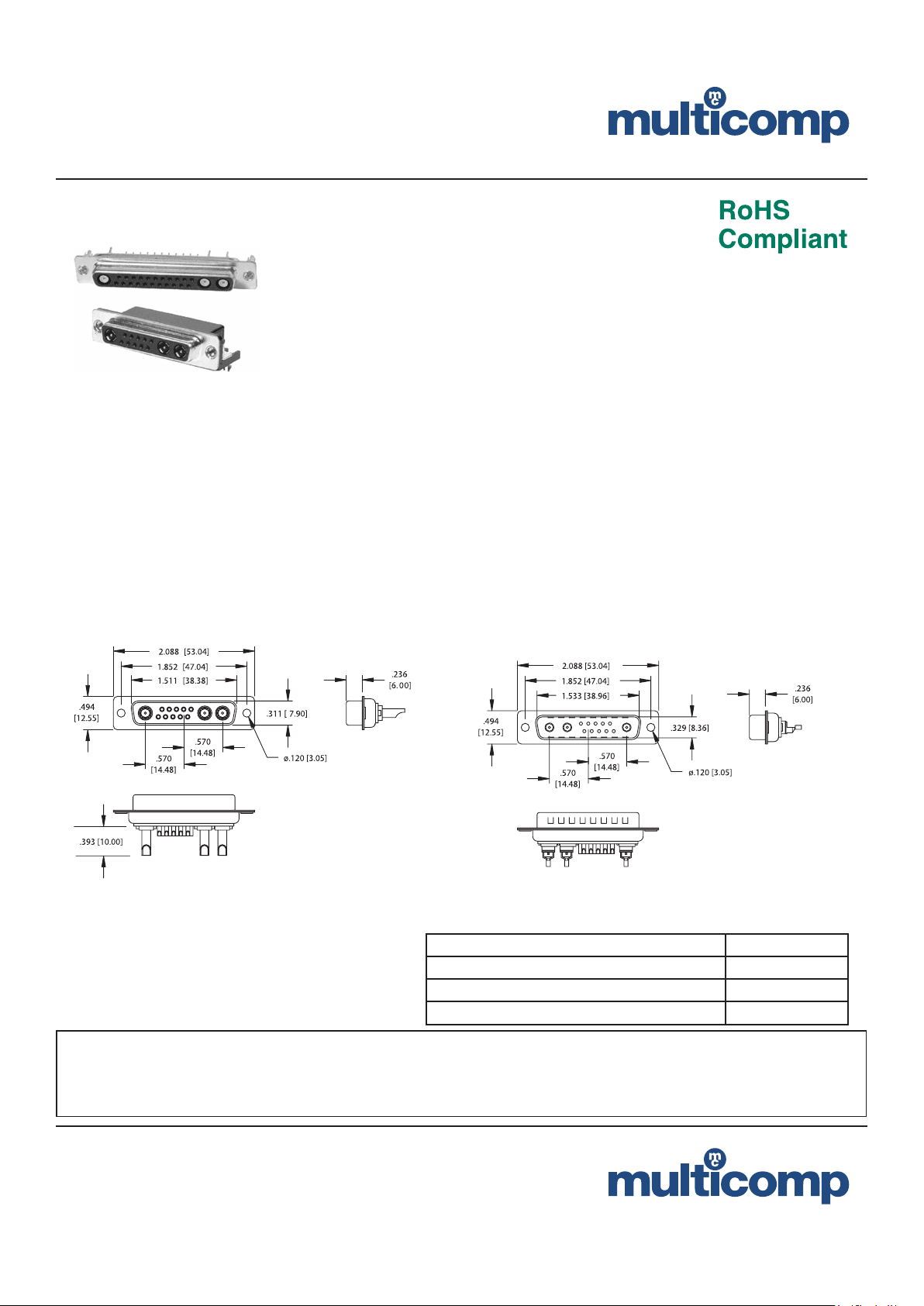

D3W3-SDP-31 D5W5-PD-21
Dimensions : Inches (Millimetres)
Important Notice : This data sheet and its contents (the “Information”) belong to the members of the Premier Farnell group of companies (the “Group”) or are licensed to it. No licence is granted
for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change
without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any
error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any
assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence.
Multicomp is the registered trademark of the Group. © Premier Farnell plc 2012.
Part Number Table
Description Part Number
Connector, D-Sub Combo, Receptacle, 3 Pos. D3W3-SDP-31
Connector, D-Sub Combo, Plug, 5 Pos. D5W5-PD-21
Connector, D-Sub Combo, Receptacle, 5 Pos. D5W5-SPD-31
