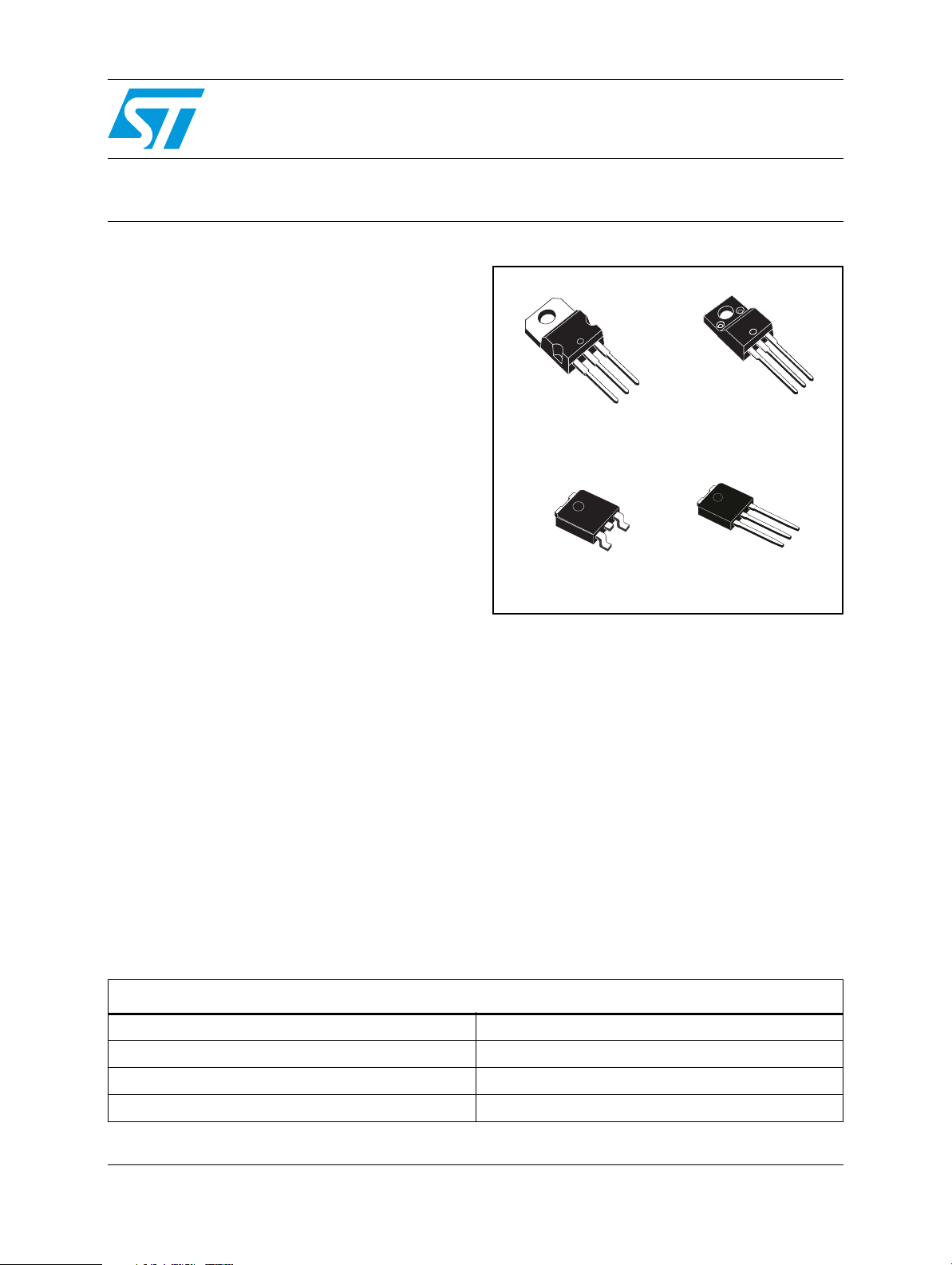

February 2008 Rev 11 1/29
29
L78MxxC
Positive voltage regulators
Features
■ Output current to 0.5 A
■ Output voltages of 5; 6; 8; 9; 12; 15; 18; 24 V
■ Thermal overload protection
■ Short circuit protection
■ Output transition SOA protection
Description
The L78Mxx series of three-terminal positive
regulators is available in TO-220, TO-220FP,
DPAK and IPAK packages and with several fixed
output voltages, making it useful in a wide range
of applications. These regulators can provide
local on-card regulation, eliminating the
distribution problems associated with single point
regulation. Each type employs internal current
limiting, thermal shut-down and safe area
protection, making it essentially indestructible. If
adequate heat sinking is provided, they can
deliver over 0.5 A output current. Although
designed primarily as fixed voltage regulators,
these devices can be used with external
components to obtain adjustable voltage and
currents.
TO-220FP
DPAK
TO-220
IPAK
Table 1. Device summary
Part numbers
L78M05C L78M12C
L78M06C L78M15C
L78M08C L78M18C
L78M09C L78M24C
