The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
15/11/2011
1

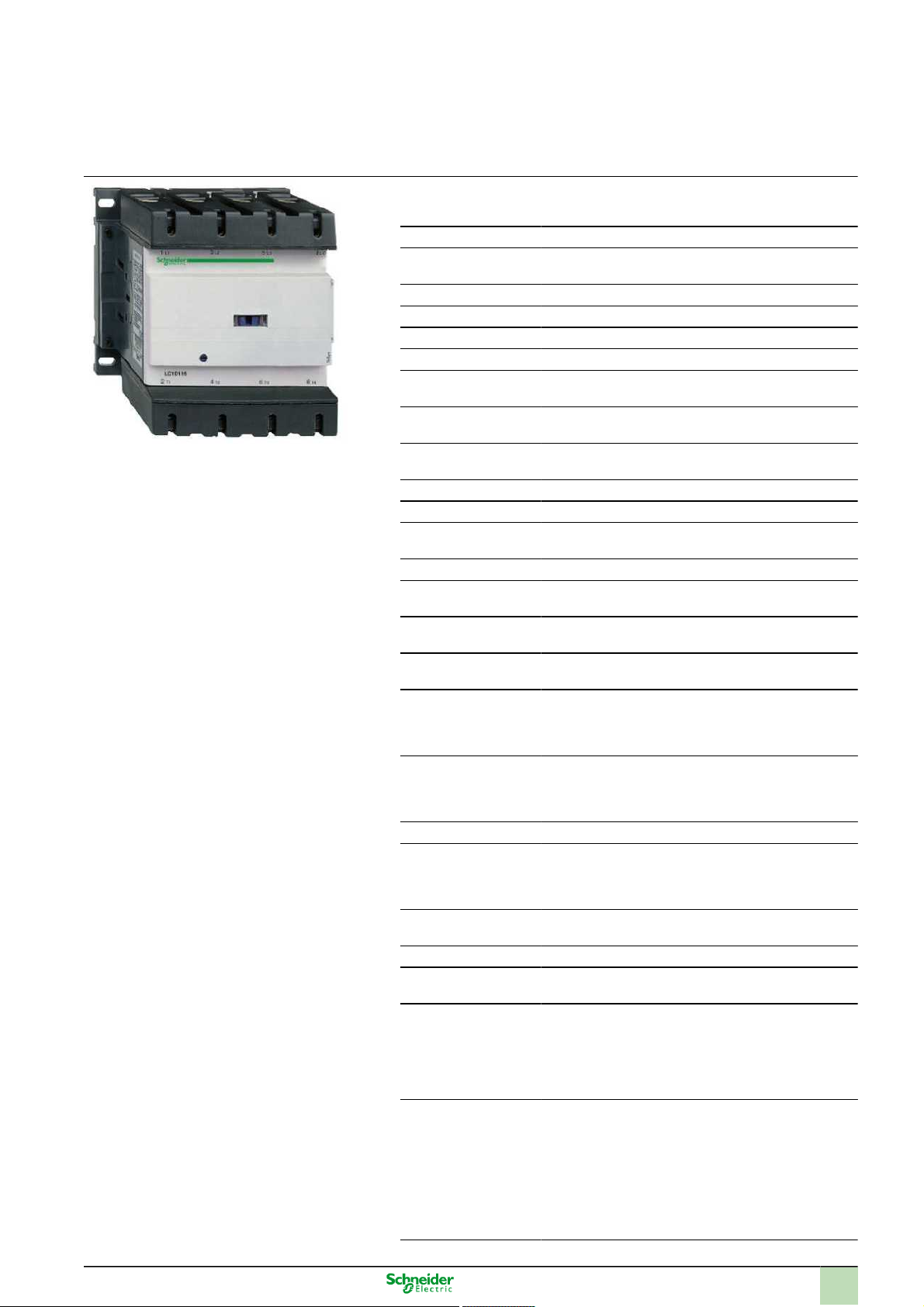

Product data sheet
Characteristics
LC1D1150046B7
TeSys D contactor - 4P(4 NO) - AC-1 - <= 440
V 200 A - 24 V AC coil
Main
Range of product TeSys D
Product or component
type
Contactor
Device short name LC1D
Contactor application Resistive load
Utilisation category AC-1
Poles description 4P
Power pole contact
composition
4 NO
[Ue] rated operational
voltage
<= 690 V DC for power circuit
<= 1000 V AC 25...400 Hz for power circuit
[Ie] rated operational
current
200 A (<= 60 °C) at <= 440 V AC AC-1 for power
circuit
Control circuit type AC 50/60 Hz
Control circuit voltage 24 V AC 50/60 Hz
[Uimp] rated impulse
withstand voltage
8 kV conforming to IEC 60947
Overvoltage category III
[Ith] conventional free
air thermal current
200 A at <= 60 °C for power circuit
Irms rated making
capacity
1260 A at 440 V for power circuit conforming to IEC
60947
Rated breaking
capacity
1100 A at 440 V for power circuit conforming to IEC
60947
[Icw] rated short-time
withstand current
250 A <= 40 °C 10 min power circuit
550 A <= 40 °C 1 min power circuit
950 A <= 40 °C 10 s power circuit
1100 A <= 40 °C 1 s power circuit
Associated fuse rating 250 A gG at <= 690 V coordination type 1 for power
circuit
200 A gG at <= 690 V coordination type 2 for power
circuit
Average impedance 0.6 mOhm at 50 Hz - Ith 200 A for power circuit
[Ui] rated insulation
voltage
600 V for power circuit certifications CSA
600 V for power circuit certifications UL
1000 V for power circuit conforming to IEC
60947-4-1
Power dissipation per
pole
24 W AC-1
Safety cover Without
Mounting support Plate
Rail
Standards EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
CSA C22.2 n°14
Product certifications BV
CCC
CSA
DNV
GL
GOST
RINA
UL
LROS
