LC1D1506FD 其他数据使用手册 - Schneider Electric（施耐德）
制造商:
Schneider Electric（施耐德）
分类:
工业继电器/通用
描述:
3 极直流控制接触器内置线圈抑制 3 常开极 辅助触点配置，一个常开，一个常闭 关闭时间 12 至 22 ms 开启时间 4 至 19 ms ### 注后缀为 BL 的接触器接受前部安装辅助接触块，但仅限于 2 触点型，不接受侧面安装触点。### 认可UL 和 CSA### Schneider Electric TeSys D 系列
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
LC1D1506FD数据手册
Page:
of 3 Go
若手册格式错乱，请下载阅览PDF原文件
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
15/11/2011
1

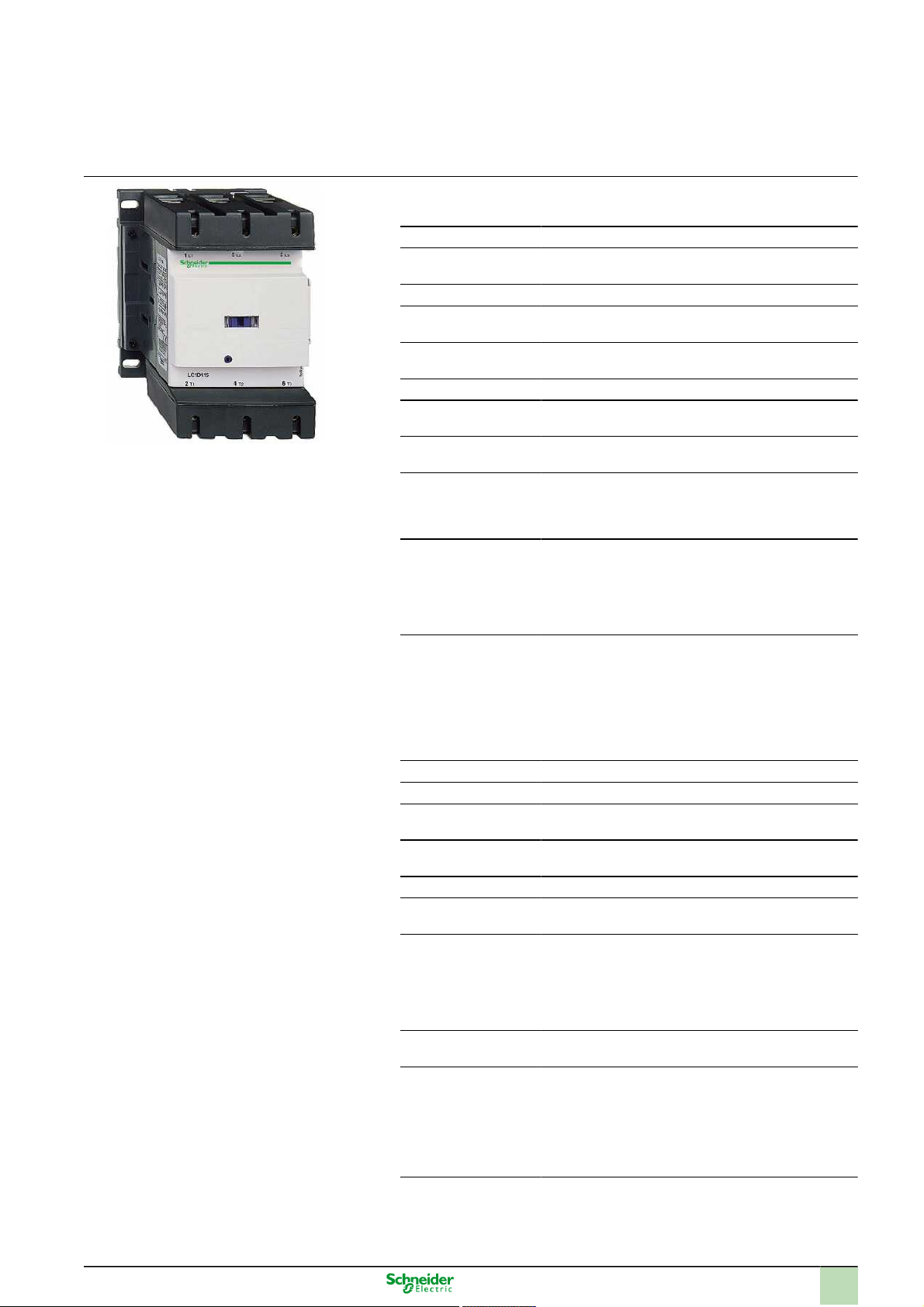

Product data sheet
Characteristics
LC1D1506FD
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440
V 150 A - 110 V DC coil
Main
Range of product TeSys D
Product or component
type
Contactor
Device short name LC1D
Contactor application Motor control
Resistive load
Utilisation category AC-1
AC-3
Poles description 3P
Power pole contact
composition
3 NO
[Ue] rated operational
voltage
<= 690 V DC for power circuit
<= 1000 V AC 25...400 Hz for power circuit
[Ie] rated operational
current
200 A (<= 60 °C) at <= 440 V AC AC-1 for power
circuit
150 A (<= 60 °C) at <= 440 V AC AC-3 for power
circuit
Motor power kW 40 kW at 220...230 V AC 50/60 Hz
75 kW at 380...400 V AC 50/60 Hz
80 kW at 415...440 V AC 50/60 Hz
90 kW at 500 V AC 50/60 Hz
100 kW at 660...690 V AC 50/60 Hz
75 kW at 1000 V AC 50/60 Hz
Motor power HP
(according to UL / CSA)
40 hp at 200/208 V AC 50/60 Hz for 3 phases
motors
50 hp at 230/240 V AC 50/60 Hz for 3 phases
motors
100 hp at 460/480 V AC 50/60 Hz for 3 phases
motors
125 hp at 575/600 V AC 50/60 Hz for 3 phases
motors
Control circuit type DC standard
Control circuit voltage 110 V DC
Auxiliary contact
composition
1 NO + 1 NC
[Uimp] rated impulse
withstand voltage
8 kV conforming to IEC 60947
Overvoltage category III
[Ith] conventional free
air thermal current
200 A at <= 60 °C for power circuit
Irms rated making
capacity
140 A AC for signalling circuit conforming to IEC
60947-5-1
250 A DC for signalling circuit conforming to IEC
60947-5-1
1660 A at 440 V for power circuit conforming to IEC
60947
Rated breaking
capacity
1400 A at 440 V for power circuit conforming to IEC
60947
[Icw] rated short-time
withstand current
250 A <= 40 °C 10 min power circuit
100 A 1 s signalling circuit
120 A 500 ms signalling circuit
140 A 100 ms signalling circuit
580 A <= 40 °C 1 min power circuit
1200 A <= 40 °C 10 s power circuit
1400 A <= 40 °C 1 s power circuit
