LC1K06103FE7 产品手册 - Schneider Electric（施耐德）
制造商:
Schneider Electric（施耐德）
描述:
3 极接触器，带弹簧端子接触器的切换电压为 440V 交流，线圈功耗（交流线圈额定频率 50/60Hz）为 4.5VA（保持）和 30VA（涌入）。弹簧端子具有安全挡块，防止布线时由于用力过度造成端子损坏 稳定连接紧密性 1 个常开辅助触点 抗震动和温度循环 符合 IEC947-4 EN60947-4-1 标准 DIN 导轨或螺钉安装 特别适合与 GV2-M 电动机断路器配合使用 ### Schneider Electric K 系列
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
电气规格在P28
导航目录
LC1K06103FE7数据手册
Page:
of 44 Go
若手册格式错乱，请下载阅览PDF原文件
2/18
2
2.2

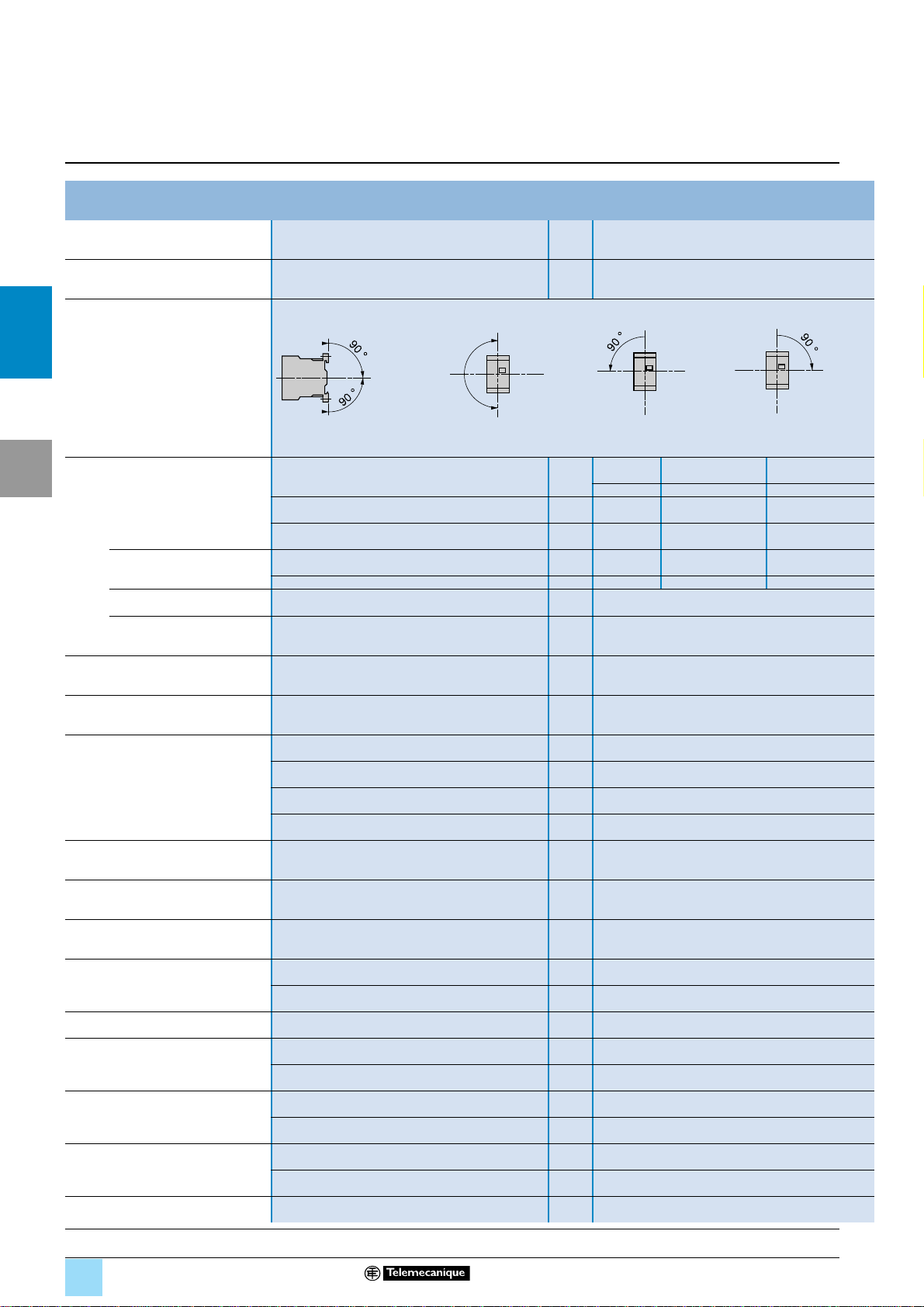

Contactors
Contactors and reversing contactors
types LCp-K and LPp-K
Environment
Conforming to standards IEC/EN 60947-1, IEC/EN 60947-4-1, NF C 63-110,
VDE 0660
Approvals LCpp
pp
and LPpp
pp
-K06 to K12 UL, CSA, DEMKO, NEMKO, SEMKO, FI
Operating positions Vertical axis Horizontal axis
Without derating Without derating Possible positions for LCp-K only.
Contactor energisation voltage: 0.85 Uc
Max to
Cabling
Min Max IEC/EN 60947
Screw clamp connections Solid conductor mm
2
1 x 1.5 2 x 4 1 x 4 + 1 x 2.5
Flexible cable without cable end mm
2
1 x 0.75 2 x 4 2 x 2.5
Flexible cable with cable end mm
2
1 x 0.34 1 x 1.5 + 1 x 2.5 1 x 1.5 + 1 x 2.5
Spring terminal connections Solid conductor mm
2
1 x 0.75 1 x 1.5 2 x 1.5
Flexible conductor without cable end mm
2
1 x 0.75 1 x 1.5 2 x 1.5
Faston connectors Clip mm 2 x 2.8 or 1 x 6.35
Solder pins for With locating device between power
printed circuit board and control circuits 4 mm x 35 microns
Tightening torque Philips head n˚ 2 and Ø 6 N.m 0.8…1.3
Terminal referencing Conforming to standards EN 50005 and EN 50012 Up to 5 contacts
Rated insulation voltage (Ui) Conforming to IEC/EN 60947-4-1 V 690
Conforming to VDE 0110 gr C V 750
Conforming to NF C 20-040 V 690
Conforming to CSA 22-2 n˚ 14, UL 508 V 600
Rated impulse withstand voltage
(Uimp)
kV 8
Protective treatment Conforming to IEC 68 (DIN 50016) “TC” (Klimafest, Climateproof)
Degree of protection Conforming to VDE 0106 Protection against direct finger contact
Ambient air temperature Storage ˚C - 50…+ 80
around the device
Operation ˚C - 25…+ 50
Maximum operating altitude Without derating m 2000
Vibration resistance Contactor open 2 gn
5 ... 300 Hz
Contactor closed 4 gn
Flame resistance Conforming to UL 94 Self-extinguishing materials V1
Conforming to NF F 16-101 and 16-102 Conforming to requirement 2
Shock resistance Contactor open 10 g
(1/2 sine wave, 11 ms)
Contactor closed 15 g
Safe circuit separation Conforming to VDE 0106 and IEC 536 VLSV (Very Low Safety voltage), up to 400 V
Characteristics
Selection:
pages 1/14 to 1/37
References:
pages 2/22 to 2/35
Dimensions:
pages 2/40 and 2/42
Schemes:
pages 2/41 and 2/43
1
8
0
