LC1K0901E7 其他数据使用手册 - Schneider Electric（施耐德）
制造商:
Schneider Electric（施耐德）
分类:
工业继电器/通用
描述:
3 极接触器，带螺钉夹或焊接端子接触器有 440V 交流切换电压和线圈消耗为（交流线圈额定值 50 / 60Hz）4.5VA（保持）和 30VA（涌入）。使用类别 AC3 DIN 导轨或螺钉安装 环境空气温度范围 -25 至 +50°C ### 认可CSA, UL, NEMKO, DEMKO, SEMKO, FIMKO### 标准BS5424 第 1 部分/IEC 947，VDE 0660, NFC63 110### Schneider Electric K 系列
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
LC1K0901E7数据手册
Page:
of 3 Go
若手册格式错乱，请下载阅览PDF原文件
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Nov 17, 2011
1

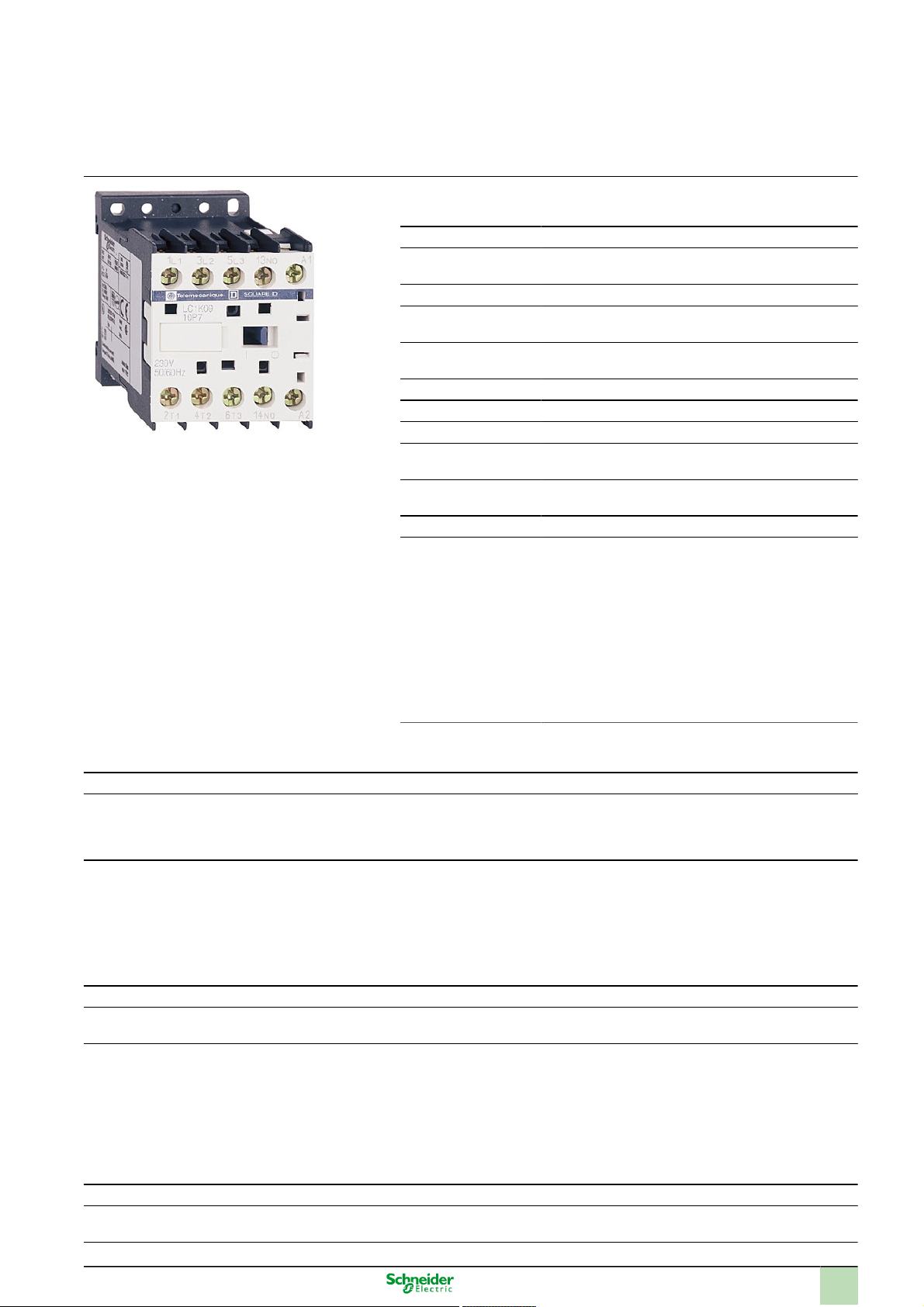

Product data sheet
Characteristics
LC1K0901E7
contactor TeSys LC1-K - 3 poles - AC-3 440V 9
A - coil 48 V AC
Main
Range of product TeSys K
Product or component
type
Contactor
Device short name LC1K
Contactor application Motor control
Resistive load
Utilisation category AC-1
AC-3
Control circuit type AC
Coil type Standard
Poles description 3P
Pole contact composi-
tion
3 NO
[Ie] rated operational
current
9 A AC AC-3 power circuit
20 A ≤ 50 °C AC AC-1 power circuit
Control circuit voltage 48 V AC 50/60 Hz
Connections - terminals Screw clamp terminal power circuit 1 0,34...2,5 mm²
flexible with
Screw clamp terminal power circuit 2 0,75...4 mm²
flexible without
Screw clamp terminal power circuit 1 0,75...4 mm²
flexible without
Screw clamp terminal power circuit 2 1,5...4 mm²
solid without
Screw clamp terminal power circuit 1 1,5...4 mm²
solid without
Screw clamp terminal power circuit 2 0,34...2,5 mm²
flexible with
Complementary
Coil technology Without built-in bidirectional peak limiting diode suppressor
Motor power kW 2,2 kW 220...230 V AC 50/60 Hz
4 kW 380...415 V AC 50/60 Hz
4 kW 440...500 V AC 50/60 Hz
4 kW 660...690 V AC 50/60 Hz
Motor power hp 2 hp 200/208 V AC 60 Hz UL
2 hp 200/208 V AC 60 Hz CSA
3 hp 230/240 V AC 60 Hz UL
3 hp 230/240 V AC 60 Hz CSA
5 hp 460/480 V AC 60 Hz UL
5 hp 460/480 V AC 60 Hz CSA
5 hp 575/600 V AC 60 Hz UL
5 hp 575/600 V AC 60 Hz CSA
Auxiliary contact composition 1 NC
Control circuit voltage limits 0.8...1.15 Uc ≤ 50 °C operational 50/60 Hz
>= 0.20 Uc ≤ 50 °C drop-out 50/60 Hz
[Ui] rated insulation voltage 600 V CSA C22-2 No 14 control circuit
600 V UL 508 CSA C22-2 No 14 power circuit
690 V IEC 60947 power circuit
690 V BS 5424 power circuit
690 V NF C 20-040 power circuit
690 V BS 5424 control circuit
690 V IEC 60947 control circuit
750 V VDE 0110 group C power circuit
750 V VDE 0110 group C control circuit
[Uimp] rated impulse withstand voltage 8 kV
Mounting support Plate
Rail
