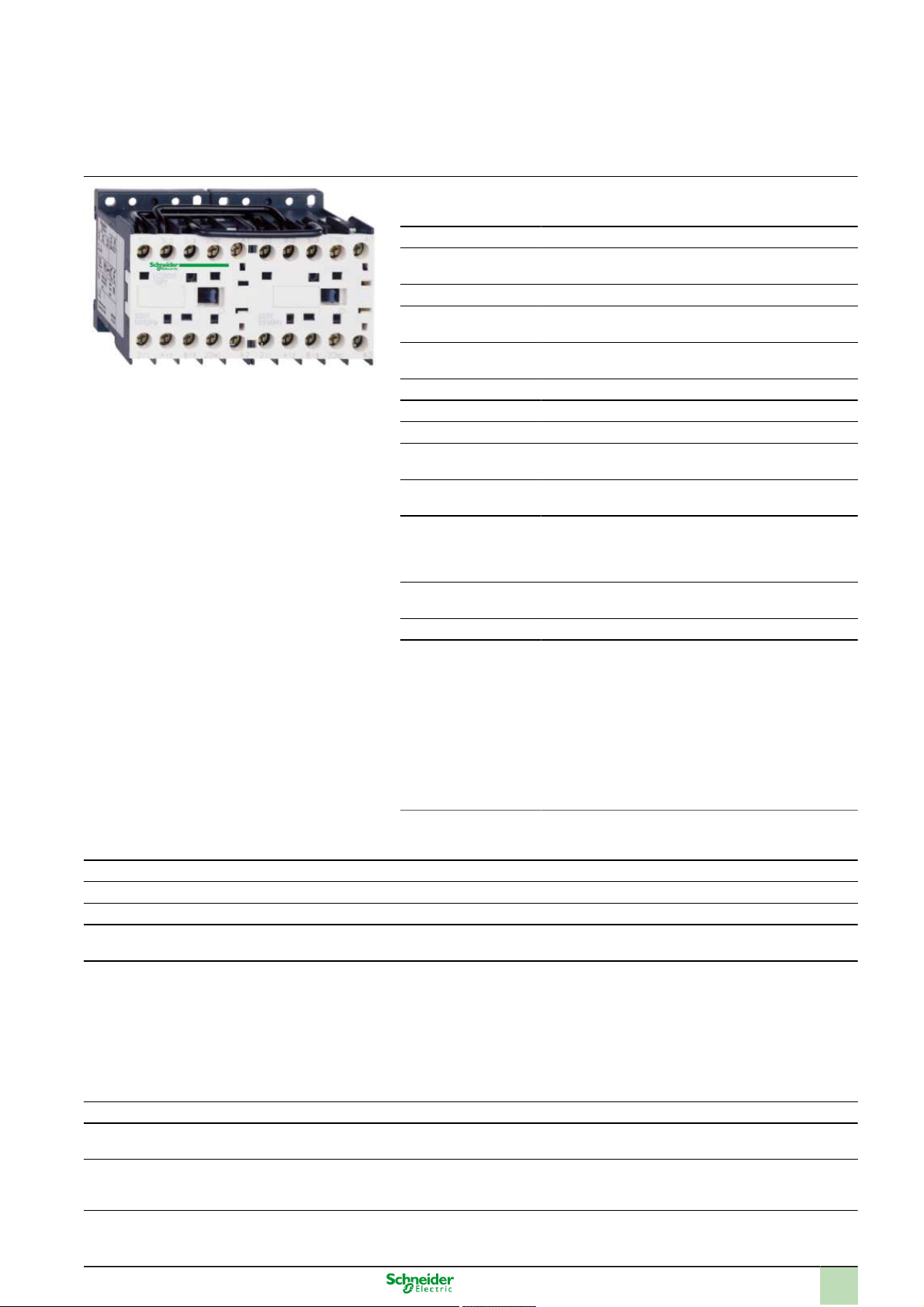

Product data sheet
Characteristics
LC2K0910C7
reversing contactor TeSys LC2-K - 3 poles -
AC-3 440V 9 A - coil 36 V AC
Main
Range of product TeSys K
Product or component
type
Reversing contactor
Device short name LC2K
Contactor application Motor control
Resistive load
Utilisation category AC-1
AC-3
Control circuit type AC
Coil type Standard
Poles description 3P
Pole contact composi-
tion
3 NO
[Ie] rated operational
current
20 A (<= 50 °C) AC network AC-1 for power circuit
9 A AC network AC-3 for power circuit
Motor power kW 4 kW at 380...415 V AC 50/60 Hz
4 kW at 440...500 V AC 50/60 Hz
4 kW at 660...690 V AC 50/60 Hz
2.2 kW at 220...230 V AC 50/60 Hz
Auxiliary contact com-
position
1 NO
Control circuit voltage 36 V AC 50/60 Hz
Connections - terminals Screwclamp terminal power circuit: 1...2 cable
0.75...4 mm² - cable stiffness: flexible - without cable
end
Screwclamp terminal power circuit: 1...2 cable
1.5...4 mm² - cable stiffness: solid
Screwclamp terminal power circuit: 1 cable
0.34...1.5 mm² - cable stiffness: flexible - with cable
end
Screwclamp terminal power circuit: 1 cable
0.34...2.5 mm² - cable stiffness: flexible - with cable
end
Complementary
Assembly style Ready assembled
Coil technology Without built-in bidirectional peak limiting diode suppressor
Interlocking type Mechanical
Control circuit voltage limits >= 0.20 Uc at <= 50 °C drop-out 50/60 Hz
0.8...1.15 Uc at <= 50 °C operational 50/60 Hz
[Ui] rated insulation voltage 600 V conforming to CSA C22-2 No 14 for control circuit
600 V certifications UL 508 conforming to CSA C22-2 No 14 for power circuit
690 V conforming to BS 5424 for control circuit
690 V conforming to IEC 60947 for control circuit
690 V conforming to BS 5424 for power circuit
690 V conforming to IEC 60947 for power circuit
690 V conforming to NF C 20-040 for power circuit
750 V conforming to VDE 0110 group C for control circuit
750 V conforming to VDE 0110 group C for power circuit
[Uimp] rated impulse withstand voltage 8 kV
Mounting support Plate
Rail
Flame retardance Class C2 conforming to NF F 16-101
Class C2 conforming to NF F 16-102
V1 conforming to UL 94
