LM20
SNIS106Q –DECEMBER 1999–REVISED JANUARY 2015
LM20 2.4-V, 10-µA, SC70, DSBGA Temperature Sensor
1 Features 3 Description
The LM20 is a precision analog output CMOS
1
• Rated for −55°C to 130°C Range
integrated-circuit temperature sensor that operates
• Available in SC70 and DSBGA Package
over −55°C to 130°C. The power supply operating
• Predictable Curvature Error
range is 2.4 V to 5.5 V. The transfer function of LM20
is predominately linear, yet has a slight predictable
• Suitable for Remote Applications
parabolic curvature. The accuracy of the LM20 when
• Accuracy at 30°C ±1.5 to ±4°C (Maximum)
specified to a parabolic transfer function is ±1.5°C at
• Accuracy at 130°C and −55°C ±2.5 to ±5°C
an ambient temperature of 30°C. The temperature
(Maximum)
error increases linearly and reaches a maximum of
±2.5°C at the temperature range extremes. The
• Power Supply Voltage Range 2.4 V to 5.5 V
temperature range is affected by the power supply
• Current Drain 10 μA (Maximum)
voltage. At a power supply voltage of 2.7 V to 5.5 V,
• Nonlinearity ±0.4% (Typical)
the temperature range extremes are 130°C and
• Output Impedance 160 Ω (Maximum)
−55°C. Decreasing the power supply voltage to 2.4 V
changes the negative extreme to −30°C, while the
• Load Regulation
positive extreme remains at 130°C.
0 μA < I
L
< 16 μA −2.5 mV (Maximum)
The LM20 quiescent current is less than 10 μA.
2 Applications Therefore, self-heating is less than 0.02°C in still air.
Shutdown capability for the LM20 is intrinsic because
• Cellular Phones
its inherent low power consumption allows it to be
• Computers
powered directly from the output of many logic gates
or does not necessitate shutdown.
• Power Supply Modules
• Battery Management
Device Information
(1)
• FAX Machines
PART NUMBER PACKAGE BODY SIZE (NOM)
• Printers
SC70 (5) 2.00 mm × 1.25 mm
LM20
• HVAC
DSBGA (4) 0.96 mm × 0.96 mm
• Disk Drives
(1) For all available packages, see the orderable addendum at
• Appliances
the end of the data sheet.

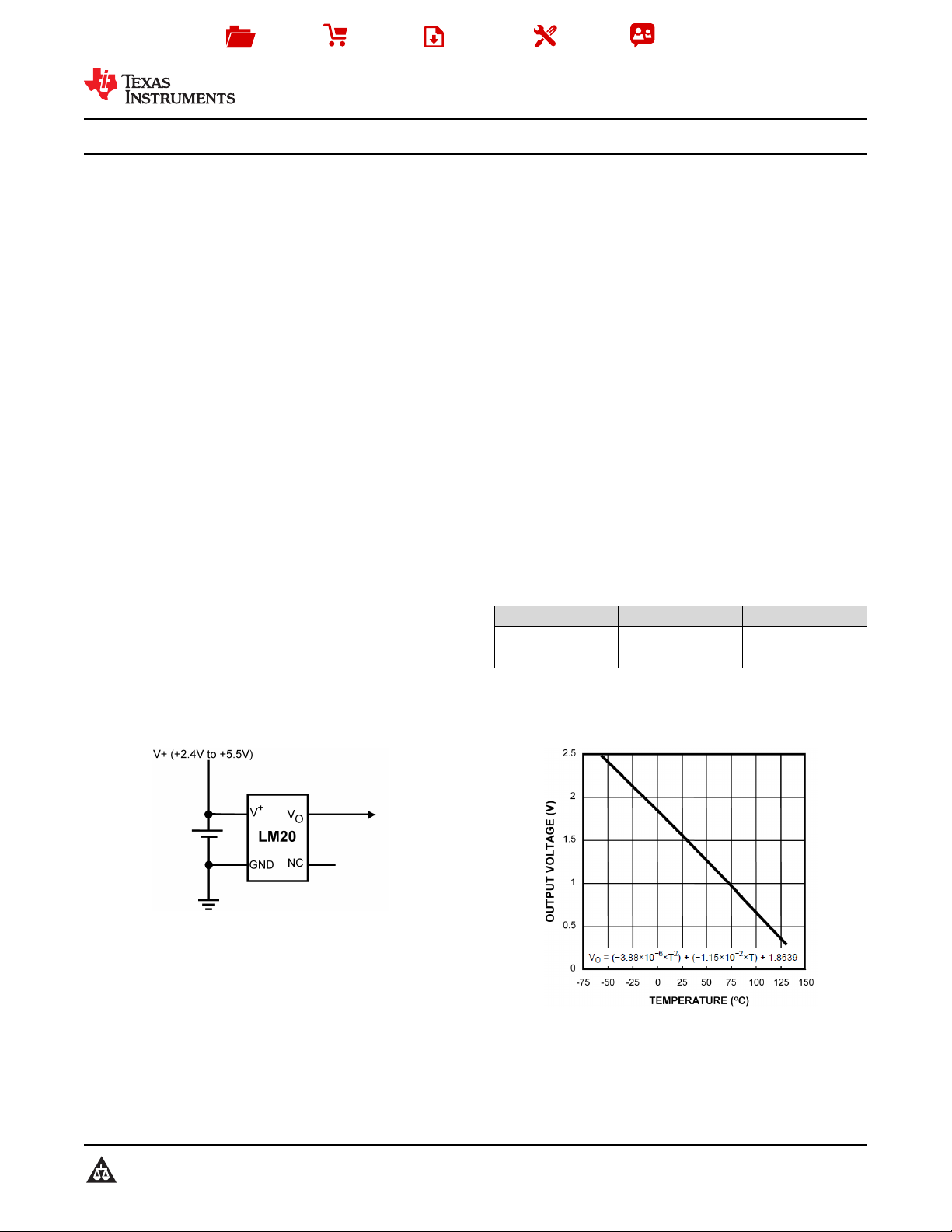

Simplified Schematic Output Voltage vs Temperature
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
