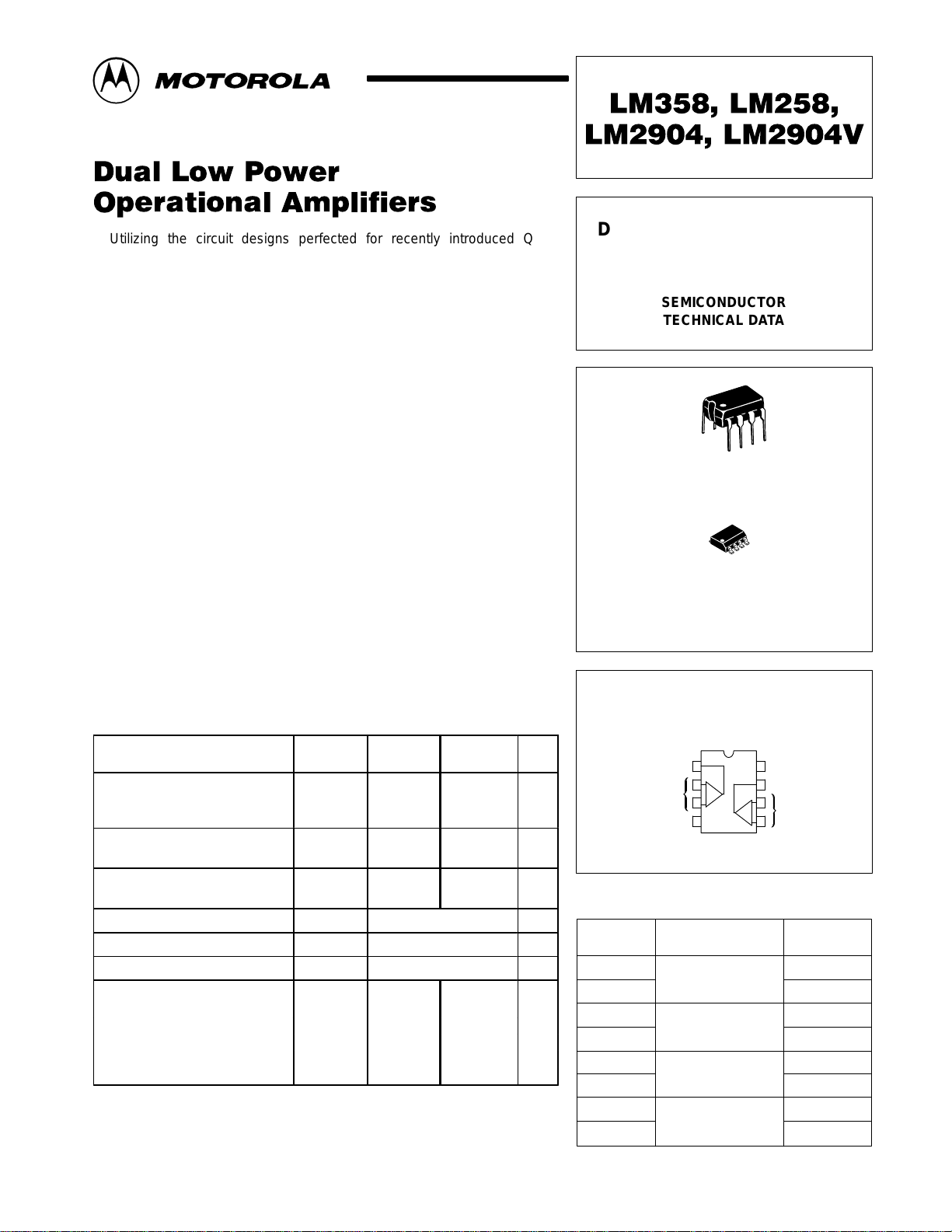

SEMICONDUCTOR
TECHNICAL DATA
DUAL DIFFERENTIAL INPUT
OPERATIONAL AMPLIFIERS
ORDERING INFORMATION
PIN CONNECTIONS
Order this document by LM358/D
D SUFFIX
PLASTIC PACKAGE
CASE 751
(SO–8)
N SUFFIX
PLASTIC PACKAGE
CASE 626
1
1
8
8
V
EE
/Gnd
Inputs A
Inputs B
Output B
Output A
V
CC
–
–
+
+
1
2
3
4
8
7
6
5
(Top View)
Device
Operating
Temperature Range
Package
LM2904VD
LM2904VN
LM258D
LM258N
LM358D
LM358N
SO–8
Plastic DIP
SO–8
Plastic DIP
SO–8
Plastic DIP
T
A
= –40° to +125°C
T
A
= –25° to +85°C
T
A
= 0° to +70°C
LM2904D
LM2904N
SO–8
Plastic DIP
T
A
= –40° to +105°C
1
MOTOROLA ANALOG IC DEVICE DATA
Utilizing the circuit designs perfected for recently introduced Quad
Operational Amplifiers, these dual operational amplifiers feature 1) low
power drain, 2) a common mode input voltage range extending to
ground/V
EE
, 3) single supply or split supply operation and 4) pinouts
compatible with the popular MC1558 dual operational amplifier. The LM158
series is equivalent to one–half of an LM124.
These amplifiers have several distinct advantages over standard
operational amplifier types in single supply applications. They can operate at
supply voltages as low as 3.0 V or as high as 32 V, with quiescent currents
about one–fifth of those associated with the MC1741 (on a per amplifier
basis). The common mode input range includes the negative supply, thereby
eliminating the necessity for external biasing components in many
applications. The output voltage range also includes the negative power
supply voltage.
• Short Circuit Protected Outputs
• True Differential Input Stage
• Single Supply Operation: 3.0 V to 32 V
• Low Input Bias Currents
• Internally Compensated
• Common Mode Range Extends to Negative Supply
• Single and Split Supply Operation
• Similar Performance to the Popular MC1558
• ESD Clamps on the Inputs Increase Ruggedness of the Device without
Affecting Operation
MAXIMUM RATINGS (T
A
= +25°C, unless otherwise noted.)
Rating
Symbol
LM258
LM358
LM2904
LM2904V
Unit
Power Supply Voltages Vdc
Single Supply V
CC
32 26
Split Supplies V
CC
, V
EE
±16 ±13
Input Differential Voltage
Range (Note 1)
V
IDR
±32 ±26 Vdc
Input Common Mode Voltage
Range (Note 2)
V
ICR
–0.3 to 32 –0.3 to 26 Vdc
Output Short Circuit Duration t
SC
Continuous
Junction Temperature T
J
150 °C
Storage Temperature Range T
stg
–55 to +125 °C
Operating Ambient Temperature
Range
T
A
°C
LM258 –25 to +85 –
LM358 0 to +70 –
LM2904 – –40 to +105
LM2904V – –40 to +125
NOTES: 1.Split Power Supplies.
2. For Supply Voltages less than 32 V for the LM258/358 and 26 V for the LM2904, the
absolute maximum input voltage is equal to the supply voltage.
Motorola, Inc. 1996 Rev 2
