LM4562
January 26, 2010
Dual High Performance, High Fidelity Audio Operational
Amplifier
General Description
The LM4562 is part of the ultra-low distortion, low noise, high
slew rate operational amplifier series optimized and fully
specified for high performance, high fidelity applications.
Combining advanced leading-edge process technology with
state-of-the-art circuit design, the LM4562 audio operational
amplifiers deliver superior audio signal amplification for out-
standing audio performance. The LM4562 combines ex-
tremely low voltage noise density (2.7nV/√Hz
) with vanish-
ingly low THD+N (0.00003%) to easily satisfy the most
demanding audio applications. To ensure that the most chal-
lenging loads are driven without compromise, the LM4562
has a high slew rate of ±20V/μs and an output current capa-
bility of ±26mA. Further, dynamic range is maximized by an
output stage that drives 2kΩ loads to within 1V of either power
supply voltage and to within 1.4V when driving 600Ω loads.
The LM4562's outstanding CMRR (120dB), PSRR (120dB),
and V
OS
(0.1mV) give the amplifier excellent operational am-
plifier DC performance.
The LM4562 has a wide supply range of ±2.5V to ±17V. Over
this supply range the LM4562’s input circuitry maintains ex-
cellent common-mode and power supply rejection, as well as
maintaining its low input bias current. The LM4562 is unity
gain stable. This Audio Operational Amplifier achieves out-
standing AC performance while driving complex loads with
values as high as 100pF.
The LM4562 is available in 8–lead narrow body SOIC, 8–lead
Plastic DIP, and 8–lead Metal Can TO-99. Demonstration
boards are available for each package.
Key Specifications
■ Power Supply Voltage Range ±2.5V to ±17V
■
THD+N (A
V
= 1, V
OUT
= 3V
RMS
, f
IN
= 1kHz)
R
L
= 2kΩ
0.00003% (typ)
R
L
= 600Ω
0.00003% (typ)
■ Input Noise Density 2.7nV/√Hz (typ)
■ Slew Rate
±20V/μs (typ)
■ Gain Bandwidth Product
55MHz (typ)
■ Open Loop Gain (R
L
= 600Ω)
140dB (typ)
■ Input Bias Current
10nA (typ)
■ Input Offset Voltage
0.1mV (typ)
■ DC Gain Linearity Error
0.000009%
Features
■
Easily drives 600Ω loads
■
Optimized for superior audio signal fidelity
■
Output short circuit protection
■
PSRR and CMRR exceed 120dB (typ)
■
SOIC, DIP, TO-99 metal can packages
Applications
■
Ultra high quality audio amplification
■
High fidelity preamplifiers
■
High fidelity multimedia
■
State of the art phono pre amps
■
High performance professional audio
■
High fidelity equalization and crossover networks
■
High performance line drivers
■
High performance line receivers
■
High fidelity active filters

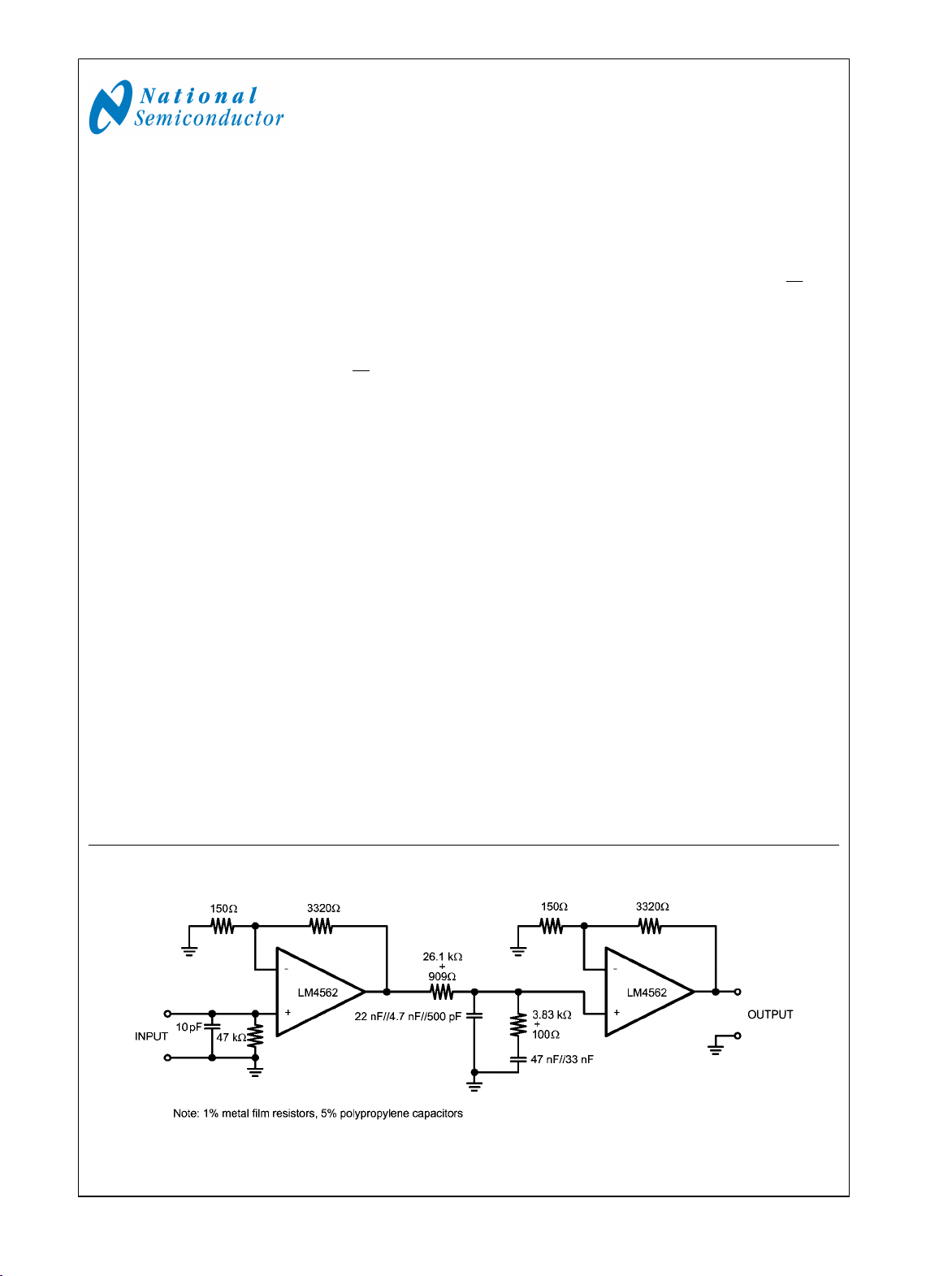

Typical Application
201572k5
Passively Equalized RIAA Phono Preamplifier
© 2010 National Semiconductor Corporation 201572 www.national.com
LM4562 Dual High Performance, High Fidelity Audio Operational Amplifier
