LM6132 Dual/LM6134 Quad

Low Power 10 MHz Rail-to-Rail I/O Operational

Amplifiers

General Description

The LM6132/34 provides new levels of speed vs power per-

formance in applications where low voltage supplies or

power limitations previously made compromise necessary.

With only 360 µA/amp supply current, the 10 MHz

gain-bandwidth of this device supports new portable applica-

tions where higher power devices unacceptably drain battery

life.

The LM6132/34 can be driven by voltages that exceed both

power supply rails, thus eliminating concerns over exceeding

the common-mode voltage range. The rail-to-rail output

swing capability provides the maximum possible dynamic

range at the output. This is particularly important when oper-

ating on low supply voltages. The LM6132/34 can also drive

large capacitive loads without oscillating.

Operating on supplies from 2.7V to over 24V, the LM6132/34

is excellent for a very wide range of applications, from bat-

tery operated systems with large bandwidth requirements to

high speed instrumentation.

Features

(For 5V Supply, Typ Unless Noted)

n Rail-to-Rail input CMVR −0.25V to 5.25V

n Rail-to-Rail output swing 0.01V to 4.99V

n High gain-bandwidth, 10 MHz at 20 kHz

n Slew rate 12 V/µs

n Low supply current 360 µA/Amp

n Wide supply range 2.7V to over 24V

n CMRR 100 dB

n Gain 100 dB with R

= 10k

n PSRR 82 dB

Applications

n Battery operated instrumentation

n Instrumentation Amplifiers

n Portable scanners

n Wireless communications

n Flat panel display driver

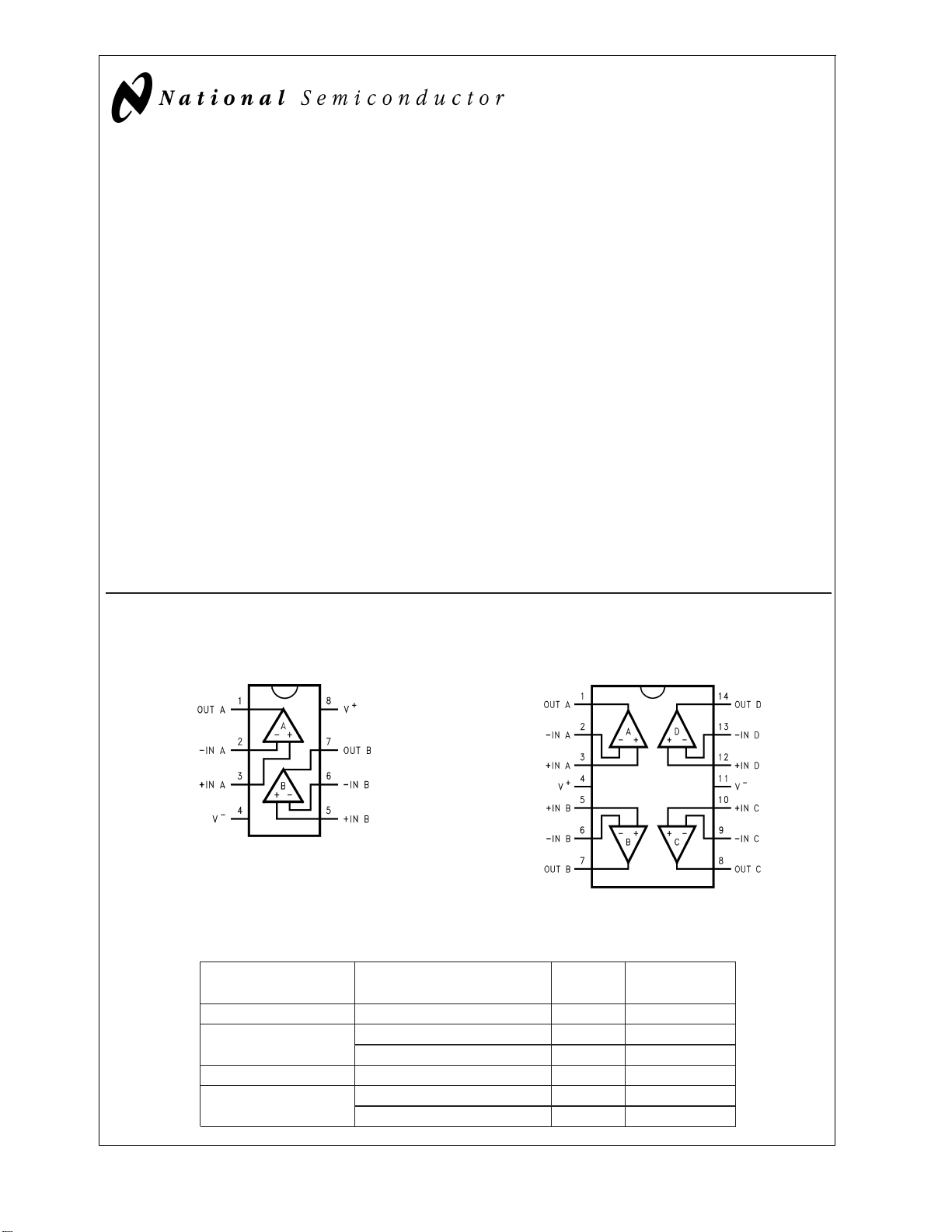

Connection Diagrams

Ordering Information

Package Temperature Range NSC Transport

Industrial, −40˚C to +85˚C Drawing Media

8-Pin Molded DIP LM6132AIN, LM6132BIN N08E Rails

8-Pin Small Outline LM6132AIM, LM6132BIM M08A Rails

LM6132AIMX, LM6132BIMX M08A Tape and Reel

14-Pin Molded DIP LM6134AIN, LM6134BIN N14A Rails

14-Pin Small Outline LM6134AIM, LM6134BIM M14A Rails

LM6134AIMX, LM6134BIMX M14A Tape and Reel

8-Pin DIP/SO

DS012349-1

Top View

14-Pin DIP/SO

DS012349-2

Top View

April 2000

LM6132 Dual and LM6134 Quad, Low Power 10 MHz Rail-to-Rail I/O Operational Amplifiers
