LM628, LM629
www.ti.com
SNVS781B –MAY 2004–REVISED MAY 2004
LM628/LM629 Precision Motion Controller
Check for Samples: LM628, LM629
1
FEATURES
23
• 32-bit position, velocity, and acceleration
• Velocity, target position, and filter parameters
registers may be changed during motion
• Programmable digital PID filter with 16-bit • Position and velocity modes of operation
coefficients
• Real-time programmable host interrupts
• Programmable derivative sampling interval
• 8-bit parallel asynchronous host interface
• 8- or 12-bit DAC output data (LM628)
• Quadrature incremental encoder interface with
• 8-bit sign-magnitude PWM output data (LM629) index pulse input
• Internal trapezoidal velocity profile generator • Available in a 28-pin dual in-line package or a
24-pin surface mount package (LM629 only)
DESCRIPTION
The LM628/LM629 are dedicated motion-control processors designed for use with a variety of DC and brushless
DC servo motors, and other servomechanisms which provide a quadrature incremental position feedback signal.
The parts perform the intensive, real-time computational tasks required for high performance digital motion
control. The host control software interface is facilitated by a high-level command set. The LM628 has an 8-bit
output which can drive either an 8-bit or a 12-bit DAC. The components required to build a servo system are
reduced to the DC motor/actuator, an incremental encoder, a DAC, a power amplifier, and the LM628. An
LM629-based system is similar, except that it provides an 8-bit PWM output for directly driving H-switches. The
parts are fabricated in NMOS and packaged in a 28-pin dual in-line package or a 24-pin surface mount package
(LM629 only). Both 6 MHz and 8 MHz maximum frequency versions are available with the suffixes -6 and -8,
respectively, used to designate the versions. They incorporate an SDA core processor and cells designed by
SDA.

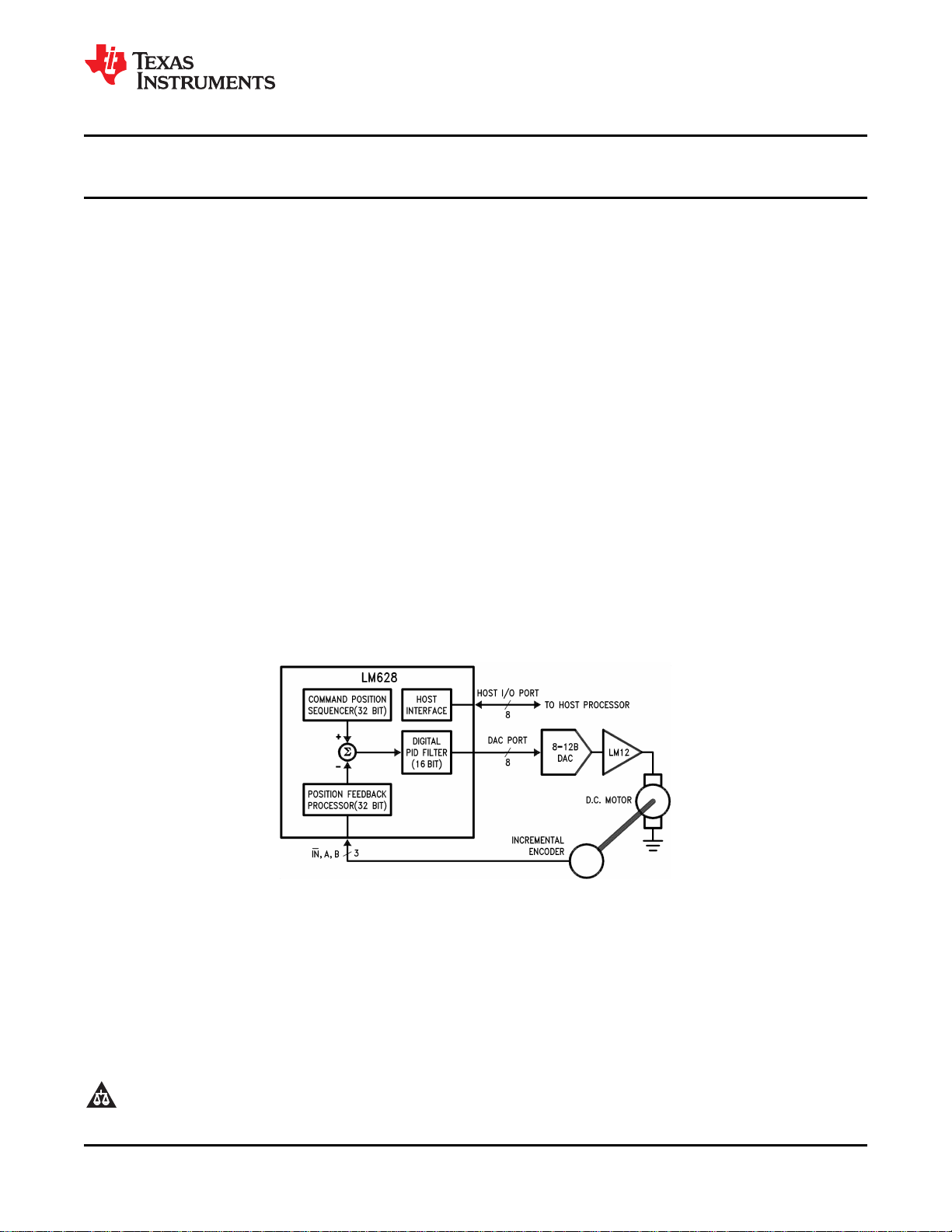

Figure 1. Block Diagram
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2TRI-STATE is a registered trademark of National Semiconductor Corporation.
3All other trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Copyright © 2004, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
