LM6171
High Speed Low Power Low Distortion Voltage Feedback
Amplifier
General Description
The LM6171 is a high speed unity-gain stable voltage feed-
back amplifier. It offers a high slew rate of 3600V/µs and a
unity-gain bandwidth of 100 MHz while consuming only 2.5
mA of supply current. The LM6171 has very impressive AC
and DC performance which is a great benefit for high speed
signal processing and video applications.
The
±
15V power supplies allow for large signal swings and
give greater dynamic range and signal-to-noise ratio. The
LM6171 has high output current drive, low SFDR and THD,
ideal for ADC/DAC systems. The LM6171 is specified for
±
5V operation for portable applications.
The LM6171 is built on National’s advanced VIP
™
III (Verti-
cally Integrated PNP) complementary bipolar process.
Features
(Typical Unless Otherwise Noted)
n Easy-To-Use Voltage Feedback Topology
n Very High Slew Rate: 3600V/µs
n Wide Unity-Gain-Bandwidth Product: 100 MHz
n −3dB Frequency
@
A
V
= +2: 62 MHz
n Low Supply Current: 2.5 mA
n High CMRR: 110 dB
n High Open Loop Gain: 90 dB
n Specified for
±
15V and
±
5V Operation
Applications
n Multimedia Broadcast Systems
n Line Drivers, Switchers
n Video Amplifiers
n NTSC, PAL
®
and SECAM Systems
n ADC/DAC Buffers
n HDTV Amplifiers
n Pulse Amplifiers and Peak Detectors
n Instrumentation Amplifier
n Active Filters

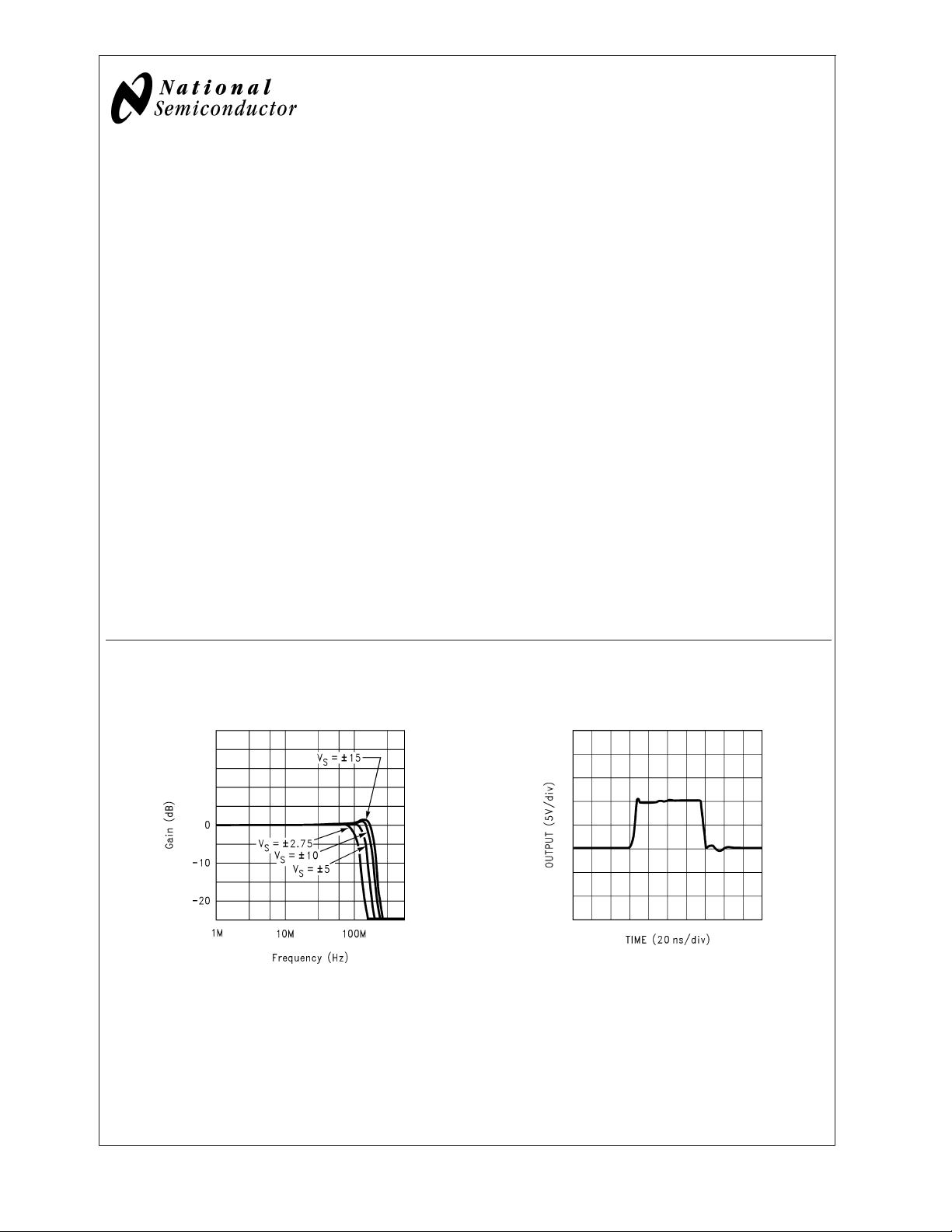

Typical Performance Characteristics
Closed Loop Frequency Responsevs. Supply Voltage
(A
V
= +1)
Large Signal Pulse Response
A
V
= +1, V
S
=
±
15
01233605
01233609
VIP
™
is a trademark of National Semiconductor Corporation.
PAL
®
is a registered trademark of and used under licence from Advanced Micro Devices, Inc.
February 2003
LM6171 High Speed Low Power Low Distortion Voltage Feedback Amplifier
© 2003 National Semiconductor Corporation DS012336 www.national.com
