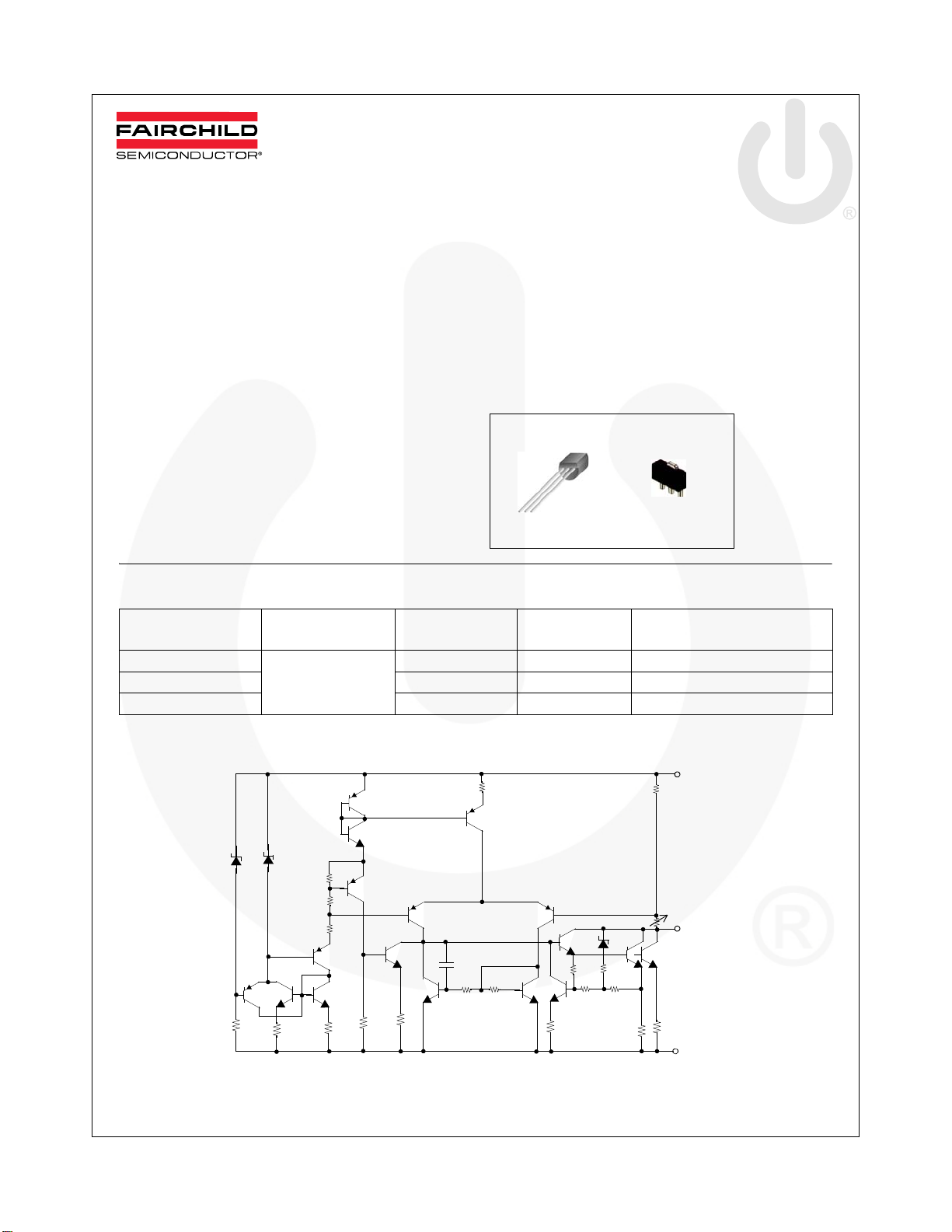

MC79L05A / LM79L05A — 3-Terminal 0.1 A Negative Voltage Regulator
© 2004 Fairchild Semiconductor Corporation www.fairchildsemi.com
MC79L05A / LM79L05A Rev. 1.1.0 1
December 2012
MC79L05A / LM79L05A
3-Terminal 0.1 A Negative Voltage Regulator
Features
Output Current up to 100 mA
No External Components
Internal Thermal Over load Protection
Internal Short-Circuit Current Limiting
Output Voltage Offered in ±5% Tolerance
Output Voltage: -5 V
Ordering Information
Block Diagram
Figure 1. Block Diagram
Part Number
Operating Tem-
perature Range
Top Mark Package Packing Method
MC79L05ACHX
0 ~ +125°C
9A SOT-89 Tape and Reel
MC79L05ACP MC79L05ACP TO-92 Bulk
LM79L05ACZ LM79L05ACZ TO-92 Bulk
Q1
Q2
Q3
Q4
Q5
Q6
Q7
Q8
Q9
Q10
Q11
Q12
Q13Q14
Q15
Q16
Q17
R1
R2
R3
R4
R5
R6
R7
R15
R16
R17
R18
R26
R22
R24 R25
R29
R
R28
R23+R21
R27
D3
D2
D1
C1
GND
Output
Input
Description
These regulators employ internal current limiting and
thermal shutdown.
TO-92
1.GND 2.Input 3.Output
1
SOT-89
1
