LMC6061
Precision CMOS Single Micropower Operational
Amplifier
General Description
The LMC6061 is a precision single low offset voltage, mi-
cropower operational amplifier, capable of precision single
supply operation. Performance characteristics include ultra
low input bias current, high voltage gain, rail-to-rail output
swing, and an input common mode voltage range that in-
cludes ground. These features, plus its low power consump-
tion, make the LMC6061 ideally suited for battery powered
applications.
Other applications using the LMC6061 include precision
full-wave rectifiers, integrators, references, sample-and-hold
circuits, and true instrumentation amplifiers.
This device is built with National’s advanced double-Poly
Silicon-Gate CMOS process.
For designs that require higher speed, see the LMC6081
precision single operational amplifier.
For a dual or quad operational amplifier with similar features,
see the LMC6062 or LMC6064 respectively.
PATENT PENDING
Features
(Typical Unless Otherwise Noted)
n Low offset voltage: 100 µV
n Ultra low supply current: 20 µA
n Operates from 4.5V to 15V single supply
n Ultra low input bias current: 10 fA
n Output swing within 10 mV of supply rail, 100k load
n Input common-mode range includes V
−
n High voltage gain: 140 dB
n Improved latchup immunity
Applications
n Instrumentation amplifier
n Photodiode and infrared detector preamplifier
n Transducer amplifiers
n Hand-held analytic instruments
n Medical instrumentation
n D/A converter
n Charge amplifier for piezoelectric transducers

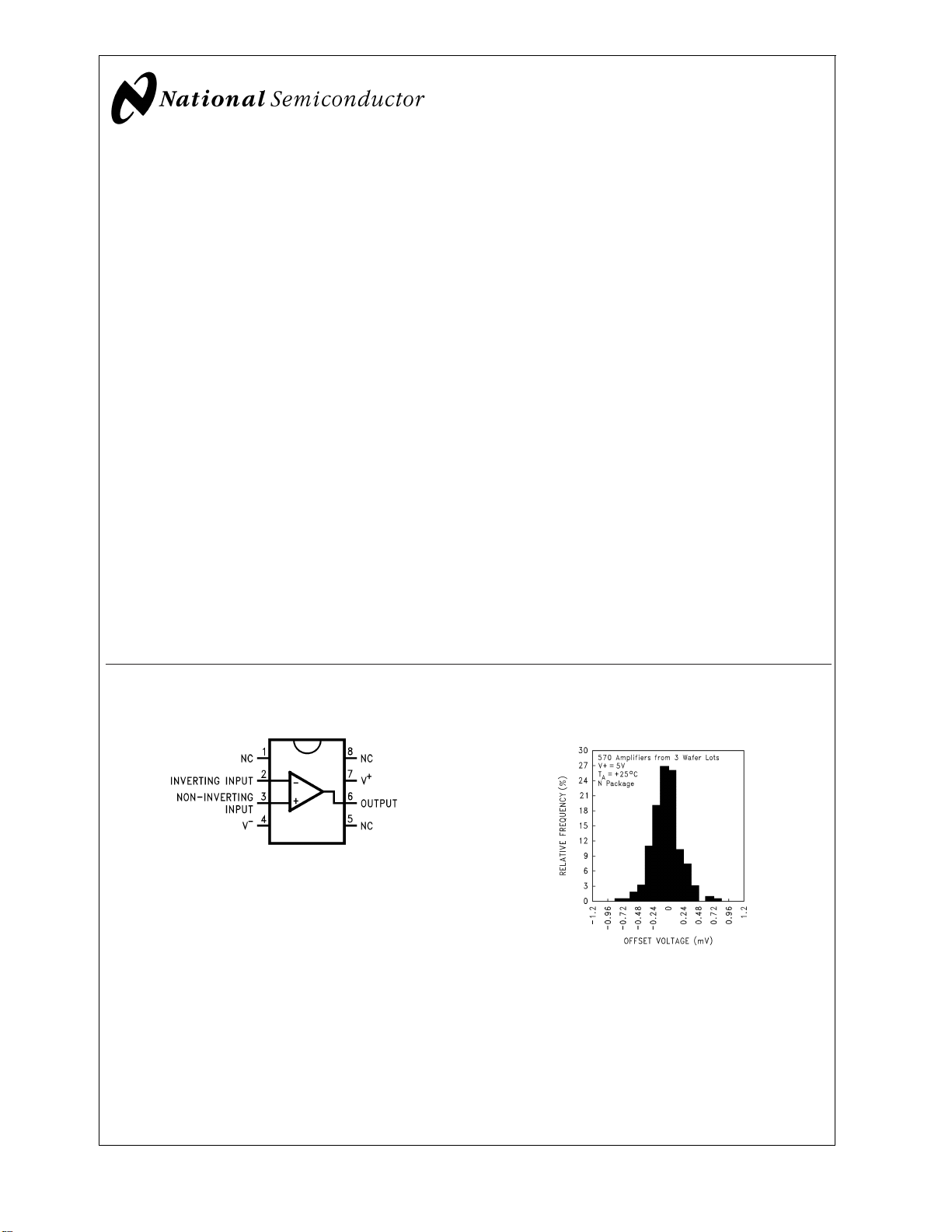

Connection Diagram
8-Pin DIP/SO
01142201
Top View
Distribution of LMC6061
Input Offset Voltage
(T
A
= +25˚C)
01142215
April 2001
LMC6061 Precision CMOS Single Micropower Operational Amplifier
© 2001 National Semiconductor Corporation DS011422 www.national.com
