LMC6084
Precision CMOS Quad Operational Amplifier
General Description
The LMC6084 is a precision quad low offset voltage opera-
tional amplifier, capable of single supply operation. Perfor-
mance characteristics include ultra low input bias current,
high voltage gain, rail-to-rail output swing, and an input
common mode voltage range that includes ground. These
features, plus its low offset voltage, make the LMC6084
ideally suited for precision circuit applications.
Other applications using the LMC6084 include precision full-
wave rectifiers, integrators, references, and sample-and-
hold circuits.
This device is built with National’s advanced Double-Poly
Silicon-Gate CMOS process.
For designs with more critical power demands, see the
LMC6064 precision quad micropower operational amplifier.
For a single or dual operational amplifier with similar fea-
tures, see the LMC6081 or LMC6082 respectively.
PATENT PENDING
Features
(Typical unless otherwise stated)
n Low offset voltage: 150 µV
n Operates from 4.5V to 15V single supply
n Ultra low input bias current: 10 fA
n Output swing to within 20 mV of supply rail, 100k load
n Input common-mode range includes V
−
n High voltage gain: 130 dB
n Improved latchup immunity
Applications
n Instrumentation amplifier
n Photodiode and infrared detector preamplifier
n Transducer amplifiers
n Medical instrumentation
n D/A converter
n Charge amplifier for piezoelectric transducers

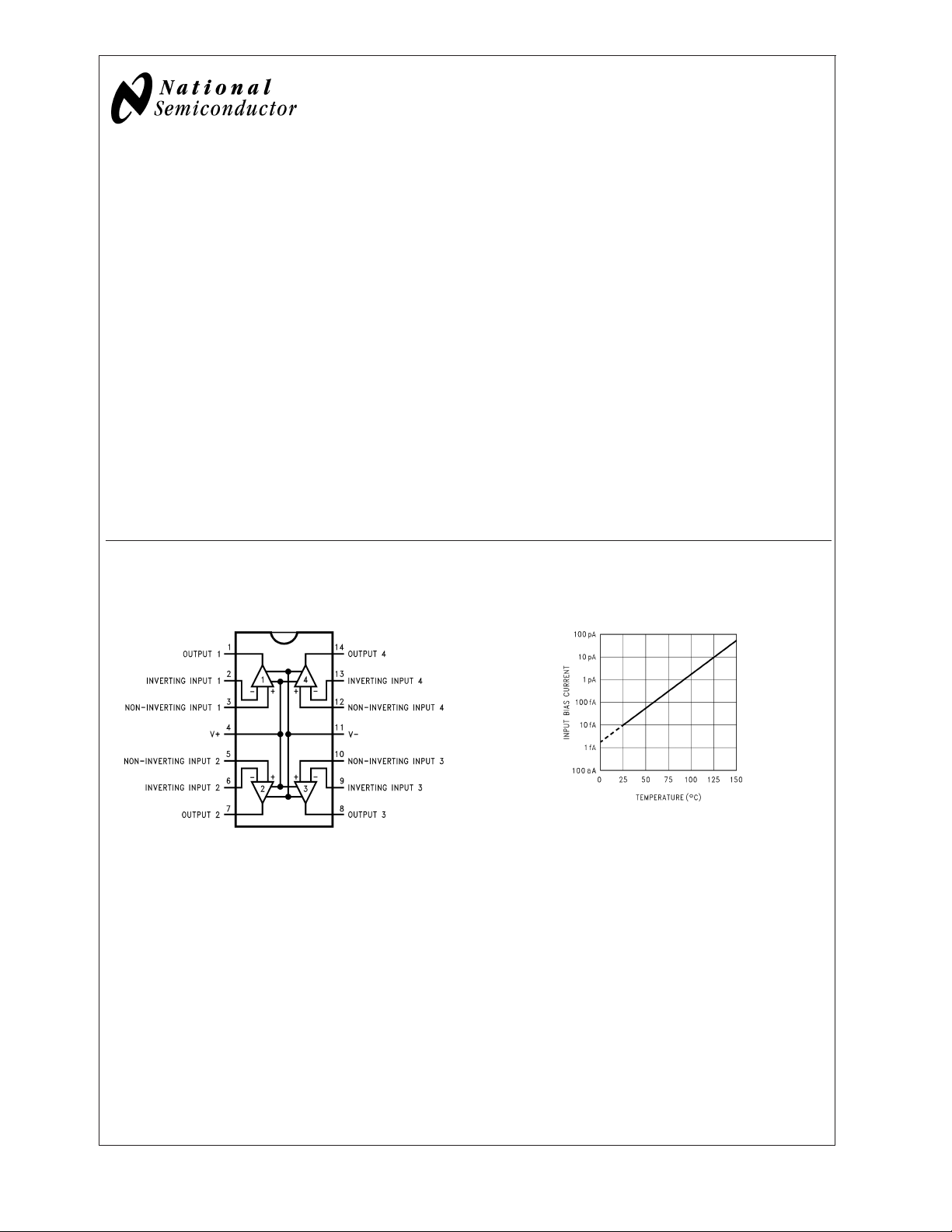

Connection Diagrams
14-Pin DIP/SO
Input Bias Current
vs Temperature
01146701
Top View
01146720
August 2000
LMC6084 Precision CMOS Quad Operational Amplifier
© 2004 National Semiconductor Corporation DS011467 www.national.com
