LMC7660
www.ti.com
SNOSBZ9C –APRIL 1997–REVISED APRIL 2013
LMC7660 Switched Capacitor Voltage Converter
Check for Samples: LMC7660
1
FEATURES
DESCRIPTION
The LMC7660 is a CMOS voltage converter capable
2
• Operation Over Full Temperature and Voltage
of converting a positive voltage in the range of +1.5V
Range without an External Diode
to +10V to the corresponding negative voltage of
• Low Supply Current, 200 μA Max
−1.5V to −10V. The LMC7660 is a pin-for-pin
• Pin-for-pin Replacement for the 7660
replacement for the industry-standard 7660. The
converter features: operation over full temperature
• Wide Operating Range 1.5V to 10V
and voltage range without need for an external diode,
• 97% Voltage Conversion Efficiency
low quiescent current, and high power efficiency.
• 95% Power Conversion Efficiency
The LMC7660 uses its built-in oscillator to switch 4
• Easy to Use, Only 2 External Components
power MOS switches and charge two inexpensive
• Extended Temperature Range
electrolytic capacitors.

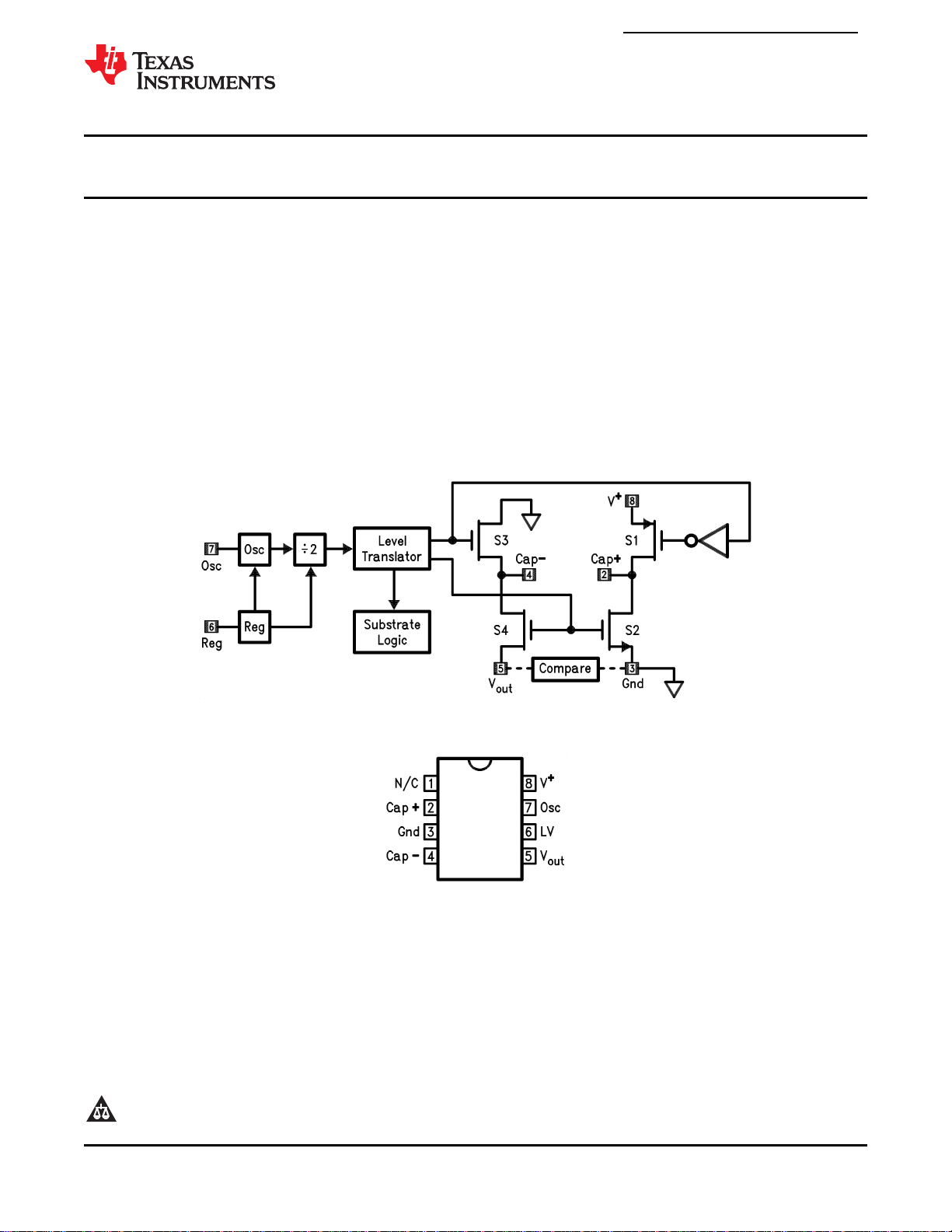

Block Diagram
Pin Configuration
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2All trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Copyright © 1997–2013, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
