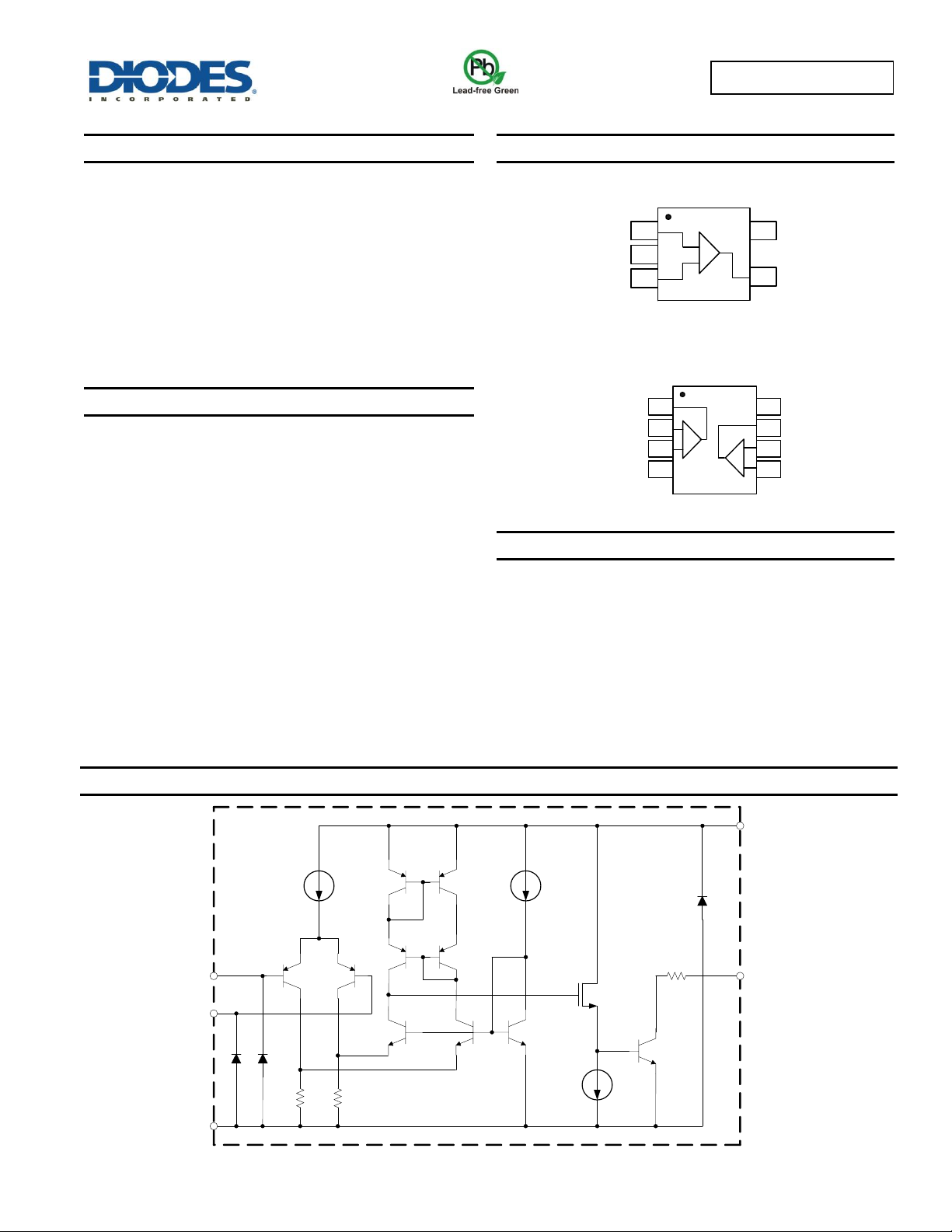

LMV331/ LMV393
Document number: DS37022 Rev. 2 - 2
1 of 13
www.diodes.com
August 2015
© Diodes Incorporated
ADVANCED I NF ORMATION
LMV331/ LMV393
GENERAL PURPOSE LOW VOLTAGE COMPARATOR
Description
The LMV331/LMV393 series are low-voltage, (2.7V to 5.5V) single
and dual comparators, which are designed to effectively reduce cost
and space at low-voltage levels.
These devices offer specifications that meet or exceed the familiar
LM331/LM393 devices operating with a lower supply voltage and
consuming a far lower supply current.
The LMV331 is available in 5-Pin SOT353/SOT25 packages that
reduce space on PC boards and portable electronic devices. LMV393
is available in industry standard SOP-8 and MSOP-8 packages.
Features
Guaranteed 2.7V and 5.5V performance
Operating temperature range (-40°C to +125°C)
Low supply current 40 µA/comparator Typ
Input Common Mode Voltage Range includes ground
Open Collector Output for Maximums Flexibility
SOT353, SOT25, MSOP-8, SO-8: Available in “Green” Molding
Compound (No Br, Sb)
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Pin Assignments
(Top View)
1
2
3
4
5
SOT25/SOT353
V
CC
IN-
IN+
V
EE
OUT
+
-
(Top View)
1
2
3
7
6
54
8
SO-8/MSOP-8
1OUT
V
CC
2IN-
2IN+
1IN-
1IN+
V
EE
2OUT
1
+
-
+
-
2
Applications
Mobile Communications
Battery Powered Devices
Notebooks and PDA’s
General Purpose Low-Voltage Applications
General Purpose Portable Devices
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Schematic Diagram
OUTPUT
V
CC
IN-
IN+
V
EE
Each Comparator
