LMV821-N, LMV821-N-Q1, LMV822-N, LMV822-N-Q1
LMV824-N, LMV824-N-Q1
www.ti.com
SNOS032E –AUGUST 1999–REVISED FEBRUARY 2013
LMV821/LMV821-Q1/LMV822/LMV822-Q1/LMV824/LMV824-Q1 Single/Dual/Quad Low
Voltage, Low Power, R-to-R Output, 5 MHz Op Amps
Check for Samples: LMV821-N, LMV821-N-Q1, LMV822-N, LMV822-N-Q1, LMV824-N, LMV824-N-Q1
1
FEATURES
APPLICATIONS
2
• (For Typical, 5 V Supply Values; Unless
• Cordless Phones
Otherwise Noted)
• Cellular Phones
• LMV821-N/LMV822-N/LMV824-N are available
• Laptops
in Automotive AEC-Q100 Grade 1 versions
• PDAs
• Ultra Tiny, SC70-5 Package 2.0 x 2.0 x 1.0 mm
• PCMCIA
• Guaranteed 2.5 V, 2.7 V and 5 V Performance
• Maximum VOS 3.5 mV (Guaranteed) DESCRIPTION
The LMV821/LMV822/LMV824 bring performance
• VOS Temp. Drift 1 uV/° C
and economy to low voltage / low power systems.
• GBW product @ 2.7 V 5 MHz
With a 5 MHz unity-gain frequency and a guaranteed
• I
Supply
@ 2.7 V 220 μA/Amplifier
1.4 V/µs slew rate, the quiescent current is only 220
µA/amplifier (2.7 V). They provide rail-to-rail (R-to-R)
• Minimum SR 1.4 V/us (Guaranteed)
output swing into heavy loads (600 Ω Guarantees).
• CMRR 90 dB
The input common-mode voltage range includes
• PSRR 85 dB
ground, and the maximum input offset voltage is
• V
CM
@ 5V -0.3V to 4.3V
3.5mV (Guaranteed). They are also capable of
comfortably driving large capacitive loads (refer to the
• Rail-to-Rail (R-to-R) Output Swing
application notes section).
• @600 Ω Load 160 mV from rail
The LMV821 (single) is available in the ultra tiny
• @10 kΩ Load 55 mV from rail
SC70-5 package, which is about half the size of the
• Stable with High Capacitive Loads (Refer to
previous title holder, the SOT23-5.
Application Section)
Overall, the LMV821/LMV822/LMV824
(Single/Dual/Quad) are low voltage, low power,
performance op amps, that can be designed into a
wide range of applications, at an economical price.

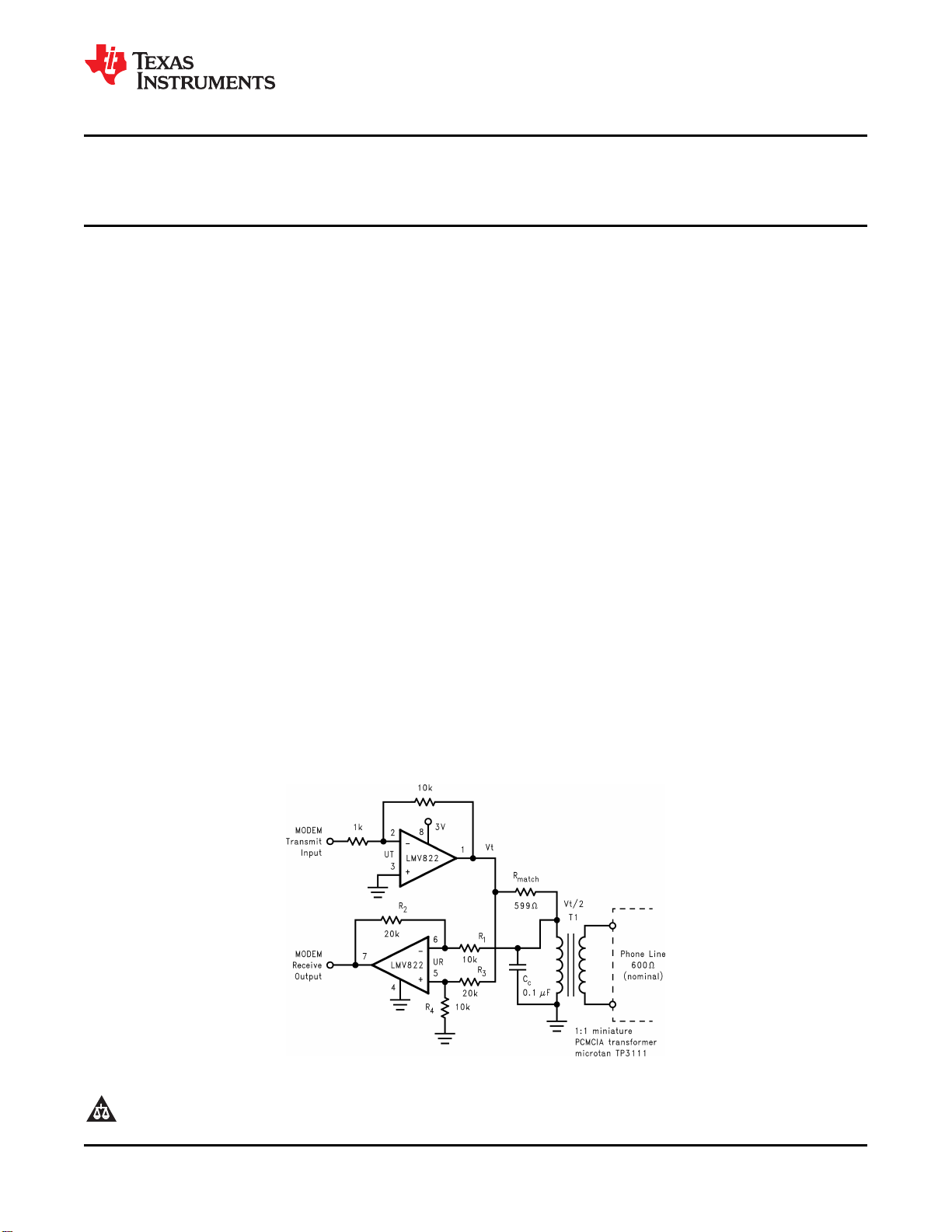

Telephone-line Transceiver for a PCMCIA Modem Card
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2All trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Copyright © 1999–2013, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
