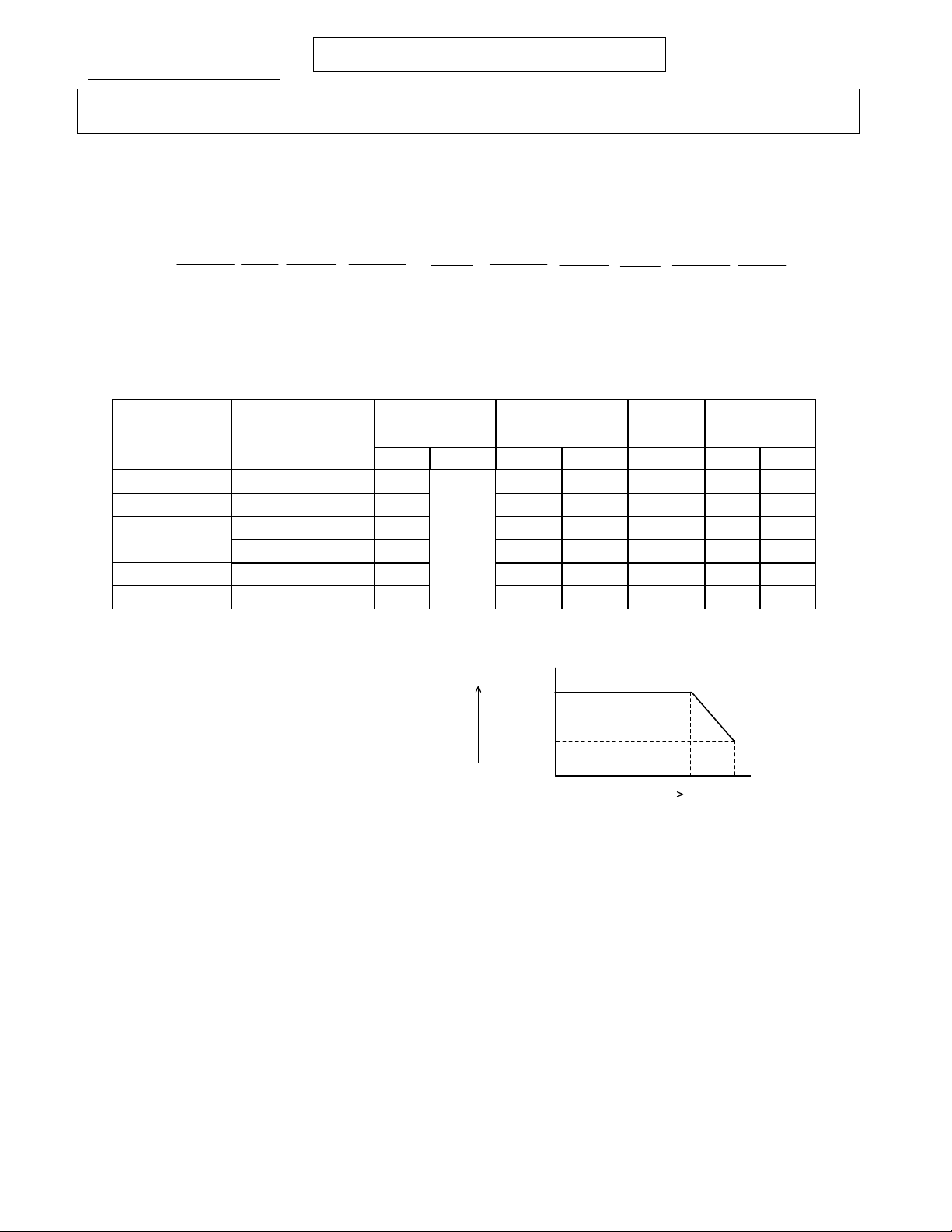

Spec No. JELF243B-0019K-01 P.1/9
MURATA MFG.CO., LTD
Reference
Only
Operating Temperature (°C)
85 125
0
Rated Current (A)
at 85°C
Rated current
at 125°C
Rated current
CHIP COIL (CHIP INDUCTORS) LQM2HPN□□□□G0L REFERENCE SPECIFICATION
1. Scope
This reference specification applies to LQM2HPN_G0 series, Chip Coil (Chip Inductors).
2. Part Numbering
(ex) LQ M 2H P N 1R0 M G 0 L
Product ID Structure Dimension Applications Category Inductance Tolerance Dimension Other Packaging
(L×W) and (T)
L: Taping
Characteristics *B: BULK
*B: Bulk packing also available
3. Rating
・Operating Temperature Range. – 55°C to +125°C
・Storage Temperature Range. – 55°C to
+125°C
Customer
Part Number
MURATA
Part Number
Inductance
DC Resistance
(Ω)
Self
Resonant
Frequency
Rated Current*
1
(A)
(μH) Tolerance
Typ Max (MHz min.) 85℃*
2
125℃*
2
LQM2HPNR47MG0L 0.47
±20%
0.040 0.050 100 1.8 1.3
LQM2HPN1R0MG0L 1.0 0.055 0.069 60 1.6 1.2
LQM2HPN1R5MG0L 1.5 0.070 0.088 50 1.5 1.1
LQM2HPN2R2MG0L 2.2 0.080 0.10 40 1.3 0.97
LQM2HPN3R3MG0L 3.3 0.10 0.125 30 1.2 0.9
LQM2HPN4R7MG0L 4.7 0.11 0.138 25 1.1 0.82
*1 When applied Rated current to the Products, temperature rise caused by self-generated heat shall be limited to
40 ℃ max
*2 As for the Rated current marked with
*2
,
Rated Current is derated as right figure
depending on the operating temperature.
4. Testing Conditions
《Unless otherwise specified》 《In case of doubt》
Temperature : Ordinary Temperature / 15°C to 35°C Temperature : 20°C ± 2°C
Humidity
: Ordinary Humidity / 25%(RH) to 85%(RH) Humidity : 60%(RH) to 70%(RH)
Atmospheric Pressure : 86kPa to 106kPa
