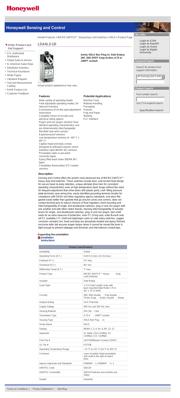

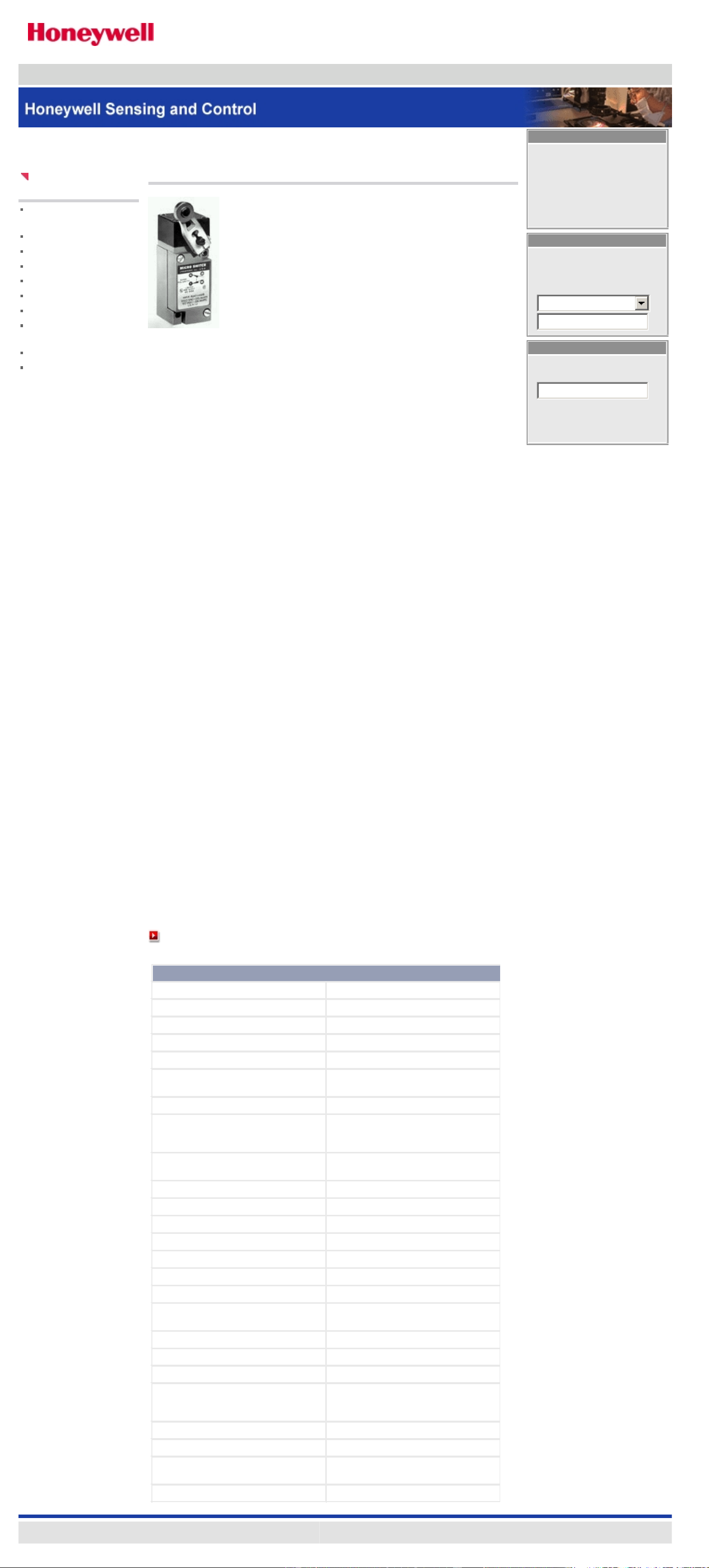

LSA4L3-1D
Series HDLS Non Plug-in: Side Rotary;
2NC 2NO DPDT Snap Action; 0.75 in -
14NPT conduit
Actual product appearance may vary.
Features
?
Wide variety of operating heads
?
Field adjustable operating modes, for
reduced inventory
?
Convenience of on-the-spot adjustment
instructions
?
Complete choice of circuitry and
electrical rating options
?
Plug-in and non plug-in versions have
identical operating characteristics and
are dimensionally interchangeable
?
Manifold (rear-wire) version
?
Explosion-proof versions
?
Low temperature versions to -40? C (-
40? F)
?
Captive head and body screws
?
Designed to withstand seismic shock
?
Stainless steel (NEMA 4X) versions
?
Pre-leaded cable or pre-wired
connector types
?
Epoxy filled wash down (NEMA 6P)
types
?
Completely fluorocarbon (FC) sealed
versions
Potential Applications
?
Machine Tools
?
Material Handling
?
Packaging
?
Presses
?
Pulp and Paper
?
Welding
?
PLC Interface
Description
Sensing and Control offers the world's most advanced line of MICRO SWITCH™
heavy-duty limit switches. These switches include boss -and-socket head design
for secure head-to-body retention, unique all-metal drive train for consistent
operating characteristics even at high temperature (lasts longer without the need
for frequent adjustment than drive trains with plastic parts,) self-lifting pressure
plate terminals save wiring time, easily identified grounding terminal (inside) for
compliance with OSHA and other regulatory agency standards, one piece flat
gasket (seals better than gaskets that go around curves and corners, does not
contact terminal pins to reduce chances of fluid migration,) front mounting and
interchangeability of single- and double-pole switches, plug-in and non plug-in with
one another and with other switch brands, tracking interchangeability of actuator
levers for single- and double-pole switches, plug-in and non plug-in, twin shaft
seals for an extra measure of protection, inner FC O-ring seal, outer Buna-N seal
(all FC available,) FC shaft and diaphragm seals on side rotary switches, rugged
corrosion-resistant zinc head and body are phosphate treated and epoxy finished,
exclusive teller tab assures proper torque (when it cannot be moved the lever is
tight enough to prevent slippage) and domestic and international conduit taps.
Supporting Documentation
Installation
Instructions
Product Specifications
Availability Global
Operating Force (O.F.) 0,45 N m max. [4 in lb max.]
Pretravel (P.T.) 15° max.
Overtravel (O.T.) 60° min.
Differential Travel (D.T.) 7° max.
Product Type MICRO SWITCH™ Heavy -Duty
Limit Switches
Actuator Side Rotary
Lever Style 1.5 in Fixed Length Lever with
back mounted Steel Roller (.75 in
dia. x .25 in wide)
Circuitry 2NC 2NO Double -Pole Double -
Throw, Snap -Action, Double -Break
Ampere Rating 10 A (Thermal)
Supply Voltage 600 Vac and 250 Vdc max.
Housing Material Zinc Die -Cast
Termination Type 0.75 in - 14NPT conduit
Housing Type HDLS Non Plug -in
Series Name HDLS
Sealing NEMA 1, 3, 4, 4X, 6, 6P, 12, 13
Approvals UL listed, CSA Certified, CE
Certified, CCC Certified
CSA File # LR57326/Master Contract 152457
UL File # E37138
Operating Temperature Range -12 °C to 121 °C [10 °F to 250 °F]
Comment Lever Included; Head assembled
with shaft to the right of switch
front
Agency Approvals and Standards EN60947 -1, EN60947 -5-1
UNSPSC Code 302119
UNSPSC Commodity 302119 Switches and controls and
relays
