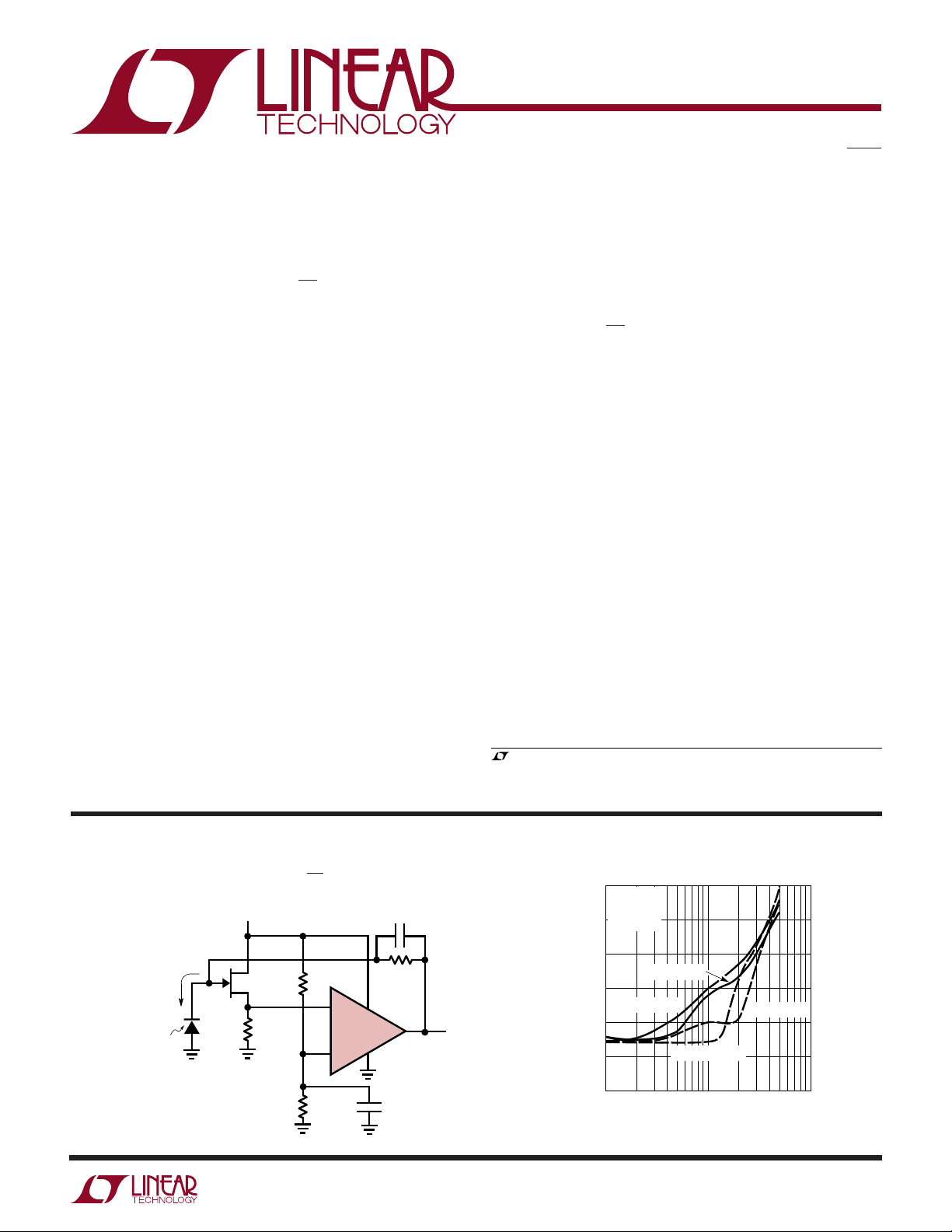

1
62001fa
LT6200/LT6200-5
LT6200-10/LT6201
■
Low Noise Voltage: 0.95nV/√Hz (100kHz)
■
Gain Bandwidth Product:
LT6200/LT6201 165MHz A
V
= 1
LT6200-5 800MHz A
V
≥ 5
LT6200-10 1.6GHz A
V
≥ 10
■
Low Distortion: –80dB at 1MHz, R
L
= 100Ω
■
Dual LT6201 in Tiny DFN Package
■
Input Common Mode Range Includes Both Rails
■
Output Swings Rail-to-Rail
■
Low Offset Voltage: 1mV Max
■
Wide Supply Range: 2.5V to 12.6V
■
Output Current: 60mA Min
■
SOT-23 and SO-8 Packages
■
Operating Temperature Range –40°C to 85°C
■
Power Shutdown, Thermal Shutdown
165MHz, Rail-to-Rail Input
and Output, 0.95nV/√Hz
Low Noise, Op Amp Family
, LTC and LT are registered trademarks of Linear Technology Corporation.
The LT
®
6200/LT6201 are single and dual ultralow noise,
rail-to-rail input and output unity gain stable op amps that
feature 0.95nV/√Hz noise voltage. These amplifiers com-
bine very low noise with a 165MHz gain bandwidth,
50V/µs slew rate and are optimized for low voltage signal
conditioning systems. A shutdown pin reduces supply
current during standby conditions and thermal shutdown
protects the part from overload conditions.
The LT6200-5/LT6200-10 are single amplifiers optimized
for higher gain applications resulting in higher gain band-
width and slew rate. The LT6200 family maintains its
performance for supplies from 2.5V to 12.6V and are
specified at 3V, 5V and ±5V.
For compact layouts the LT6200/LT6200-5/LT6200-10 are
available in the 6-lead ThinSOT
TM
and the 8-pin SO pack-
age. The dual LT6201 is available in an 8-pin SO package
with standard pinouts as well as a tiny, dual fine pitch
leadless package (DFN). These amplifiers can be used as
plug-in replacements for many high speed op amps to
improve input/output range and noise performance.
■
Transimpedance Amplifiers
■
Low Noise Signal Processing
■
Active Filters
■
Rail-to-Rail Buffer Amplifiers
■
Driving A/D Converters
FEATURES
DESCRIPTIO
U
APPLICATIO S
U
–
+
5V
I
PD
DIODE
C
F
10k
0.1µF
10k
1k
V
OUT
≈ 2V
+I
PD
• R
F
PHILIPS
BF862
R
F
LT6200
6200 TA01
Distortion vs Frequency
Single Supply, 1.5nV/√Hz, Photodiode Amplifier
TYPICAL APPLICATIO
U
FREQUENCY (Hz)
100k
–110
DISTORTION (dBc)
–100
–90
–80
–70
–50
1M 10M
6200 G35
–60
HD2, R
L
= 100Ω
HD3, R
L
= 100Ω
HD3, R
L
= 1k
A
V
= 1
V
O
= 2V
P-P
V
S
= ±2.5V
HD2, R
L
= 1k
ThinSOT is a trademark of Linear Technology Corporation.
