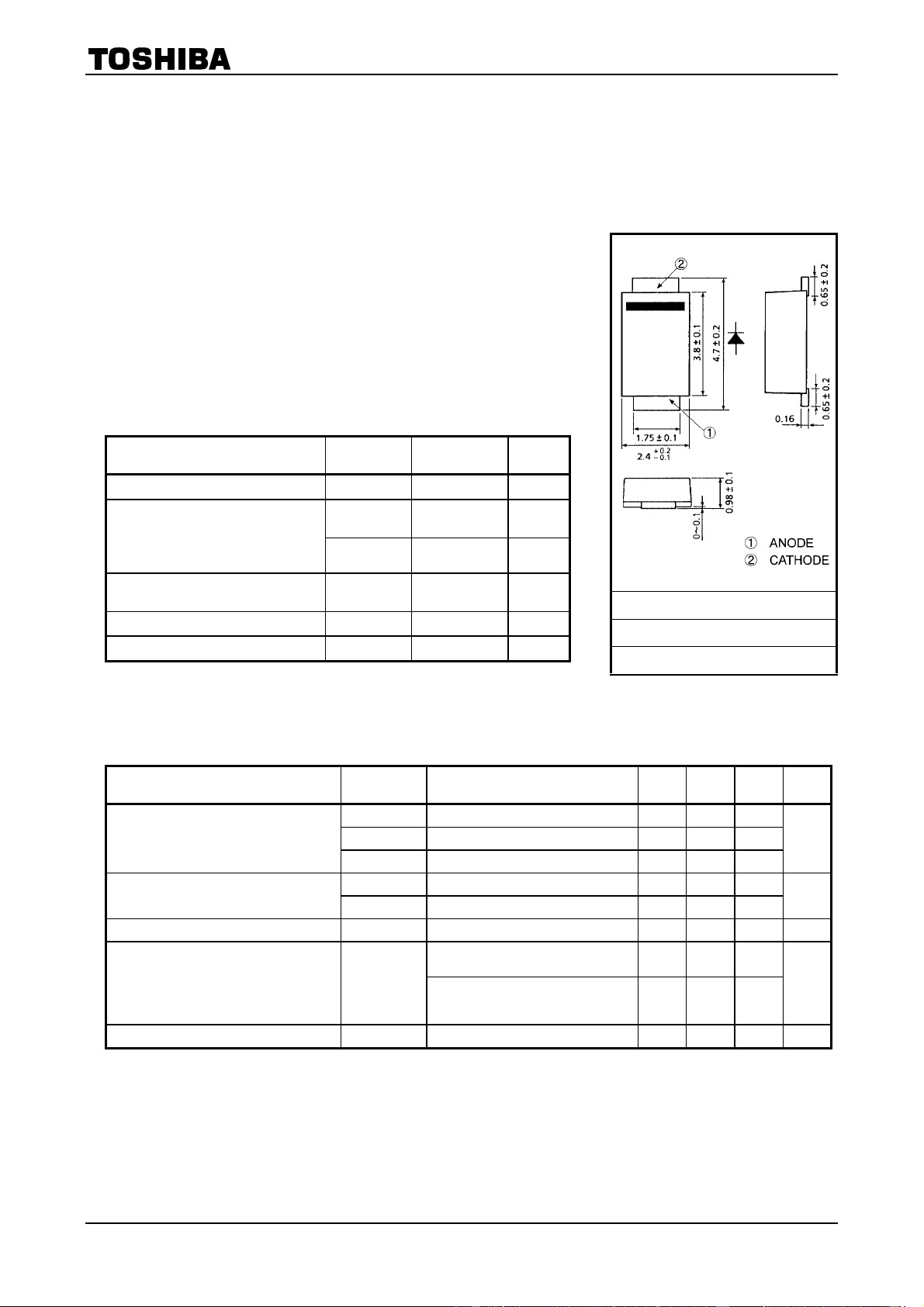

CMS08
2003-02-17
1
TOSHIBA Schottky Barrier Rectifier Schottky Barrier Type
CMS08
Switching Mode Power Supply Applications
Portable Equipment Battery Applications
· Forward voltage: V
FM
= 0.37 V (max)
· Average forward current: I
F (AV)
= 1.0 A
· Repetitive peak reverse voltage: V
RRM
= 30 V
· Suitable for compact assembly due to small surface-mount package
“M−FLAT
TM
” (Toshiba package name)
Maximum Ratings
(Ta =
==
= 25°C)
Characteristics Symbol Rating Unit
Repetitive peak reverse voltage V
RRM
30 V
I
F (AV)
(Note)
1.0
(Ta = 51°C)
A
Average forward current
I
F (AV)
1.0
(Tℓ = 106°C)
A
Peak one cycle surge forward current
(non-repetitive)
I
FSM
25 (50 Hz) A
Junction temperature T
j
-40~125 °C
Storage temperature T
stg
-40~150 °C
Note: Device mounted on a ceramic board
(board size: 50 mm ´ 50 mm, soldering land: 2 mm ´ 2 mm)
Electrical Characteristics
(Ta =
==
= 25°C)
Characteristics Symbol Test Condition Min Typ. Max Unit
V
FM (1)
I
FM
= 0.1 A ¾ 0.23 ¾
V
FM (2)
I
FM
= 0.5 A ¾ 0.29 ¾
Peak forward voltage
V
FM (3)
I
FM
= 1.0 A ¾ 0.32 0.37
V
I
RRM
V
RRM
= 5 V ¾ 0.04 ¾
Repetitive peak reverse current
I
RRM
V
RRM
= 30 V ¾ 0.38 1.5
mA
Junction capacitance C
j
V
R
= 10 V, f = 1.0 MHz ¾ 70 ¾ pF
Device mounted on a ceramic board
(soldering land: 2 mm ´ 2 mm)
¾ ¾ 60
Thermal resistance R
th (j-a)
Device mounted on a glass-epoxy
board
(soldering land: 6 mm ´ 6 mm)
¾ ¾ 135
°C/W
Thermal resistance R
th (j-ℓ)
¾ ¾ ¾ 16 °C/W
Unit: mm
JEDEC ―
JEITA ―
TOSHIBA 3-4E1A
Weight: 0.023 g (typ.)
