MAX232, MAX232I
DUAL EIA-232 DRIVER/RECEIVER
SLLS047D – FEBRUARY 1989 – REVISED MAY 1995
Copyright 1995, Texas Instruments Incorporated
2–1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
• Operates With Single 5-V Power Supply
• LinBiCMOS Process Technology
• Two Drivers and Two Receivers
• ±30-V Input Levels
• Low Supply Current...8 mA Typ
•Meets or Exceeds ANSI EIA/TIA-232-E and
ITU Recommendation V.28
• Designed to be Interchangeable With
Maxim MAX232
• Applications
EIA/TIA-232-E
Battery-Powered Systems
Terminals
Modems
Computers
• ESD Protection Exceeds 2000 V Per
MIL-STD-883, Method 3015
description
The MAX232 is a dual driver/receiver that
includes a capacitive voltage generator to supply
EIA/TIA-232-E voltage levels from a single 5-V
supply. Each receiver converts EIA/TIA-232-E
inputs to 5-V TTL/CMOS levels. These receivers
have a typical threshold of 1.3 V and a typical
hysteresis of 0.5 V, and can accept ±30-V inputs.
Each driver converts TTL/CMOS input levels into
EIA/TIA-232-E levels. The driver, receiver, and
voltage-generator functions are available as cells
in the Texas Instruments LinASIC library.
The MAX232 is characterized for operation from
0°C to 70°C. The MAX232I is characterized for
operation from –40°C to 85°C.
LinASIC and LinBiCMOS are trademarks of Texas Instruments Incorporated.
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
C1+
V
S+
C1–
C2+
C2–
V
S–
T2OUT
R2IN
V
CC
GND
T1OUT
R1IN
R1OUT
T1IN
T2IN
R2OUT

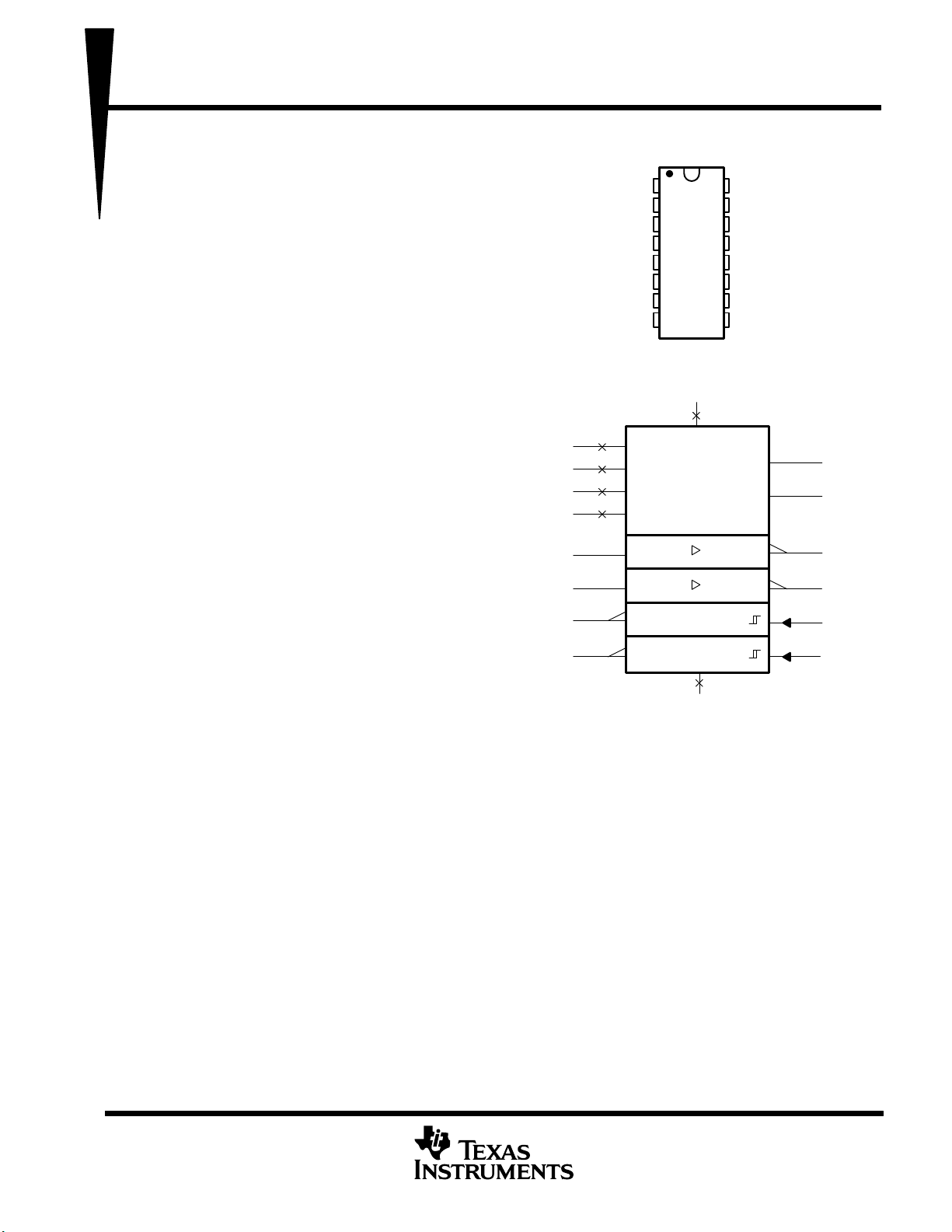

DW OR N PACKAGE
(TOP VIEW)
logic symbol
†
†
This symbol is in accordance with ANSI/IEEE Std 91-1984 and
IEC Publication 617-12.
2V
CC
– 1.5 V
–2V
CC
+ 1.5 V
2
6
14
7
13
8
C1+
C1–
C2+
C2–
1
3
4
5
11
10
12
9
GND
15
0 V
V
CC
16
5 V
C1+
C1–
C2+
C2–
T1IN
T2IN
R1OUT
R2OUT
T1OUT
T2OUT
R1IN
R2IN
V
S+
V
S–
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
