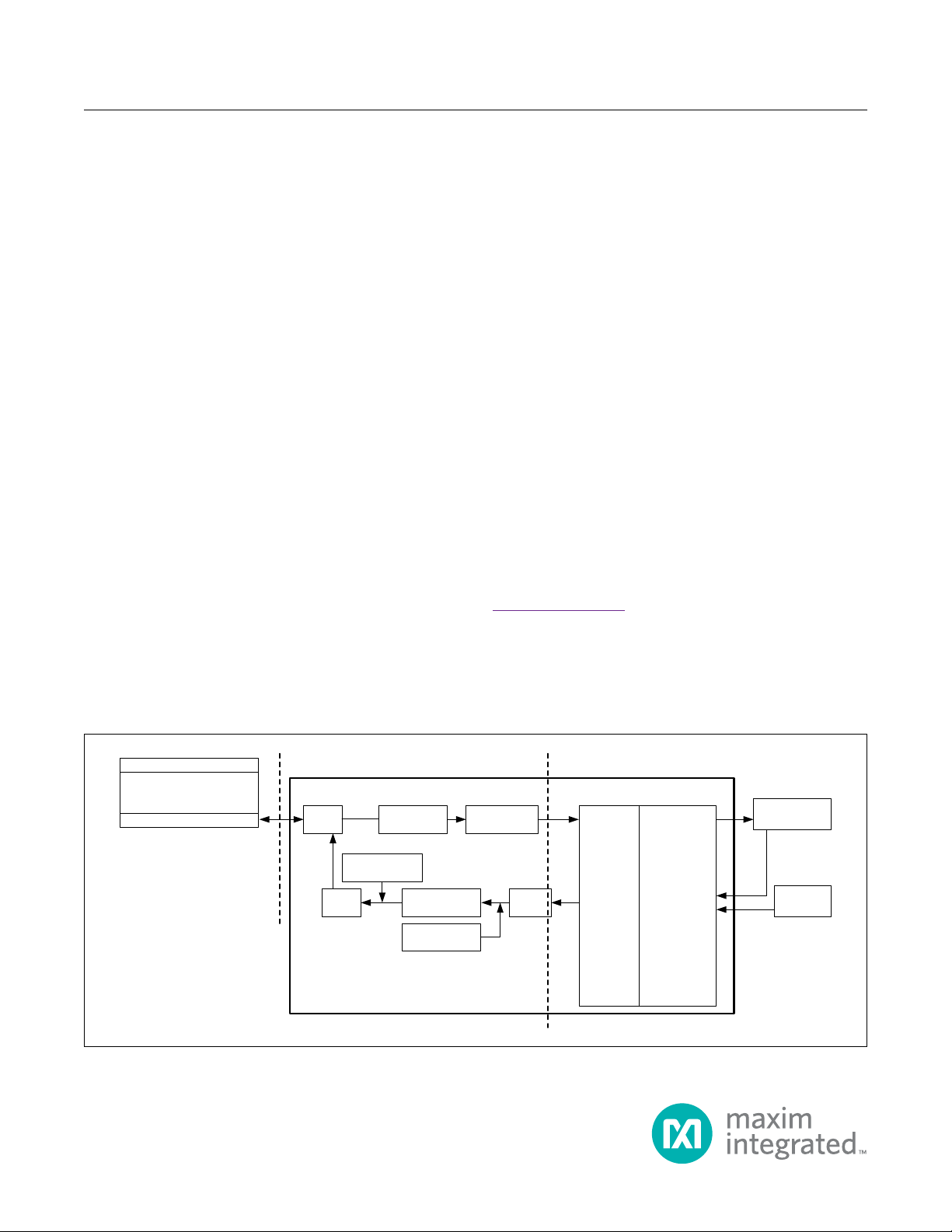

General Description
The MAX30102 is an integrated pulse oximetry and
heart-rate monitor module. It includes internal LEDs,
photodetectors, optical elements, and low-noise electronics
with ambient light rejection. The MAX30102 provides a
complete system solution to ease the design-in process
for mobile and wearable devices.
The MAX30102 operates on a single 1.8V power supply
and a separate 5.0V power supply for the internal LEDs.
Communication is through a standard I
2
C-compatible
interface. The module can be shut down through software
with zero standby current, allowing the power rails to
remain powered at all times.
Applications
● Wearable Devices
● Fitness Assistant Devices
Benets and Features
● Heart-Rate Monitor and Pulse Oximeter Sensor in
LED Reflective Solution
● Tiny 5.6mm x 3.3mm x 1.55mm 14-Pin Optical Module
• Integrated Cover Glass for Optimal, Robust
Performance
● Ultra-Low Power Operation for Mobile Devices
• Programmable Sample Rate and LED Current for
Power Savings
• Low-Power Heart-Rate Monitor (< 1mW)
• Ultra-Low Shutdown Current (0.7µA, typ)
● Fast Data Output Capability
• High Sample Rates
● Robust Motion Artifact Resilience
• High SNR
● -40°C to +85°C Operating Temperature Range
Ordering Information appears at end of data sheet.
19-7740; Rev 0; 9/15
DIODE
LED DRIVERS
RED/IR LED
PACKAGING
HUMAN
SUBJECT
ELECTRICAL OPTICAL
AMBIENT
LIGHT
18-BIT
CURRENT ADC
AMBIENT LIGHT
CANCELLATION
DIGITAL NOISE
CANCELLATION
DATA
FIFO
HOST (AP)
I
2
C
DRIVER
HARDWARE FRAMEWORK
APPLICATIONS
ACRYLIC
(COVER
GLASS)
MAX30102
MAX30102 High-Sensitivity Pulse Oximeter and
Heart-Rate Sensor for Wearable Health
System Diagram
