Small, High-Performance USB Switches Integrate Low
Power and High-ESD Protection
Multiplex Both USB and Analog Signals in Handheld Devices
2
The MAX14585*/MAX14585A* high-ESD-protected DPDT switches multiplex Hi-Speed USB (480Mbps) and
analog signals such as AC-coupled audio or video. These devices combine the low on-capacitance (C
ON
) and
low on-resistance (R
ON
) necessary for high-performance switching applications in portable electronics. They
include an internal negative supply to pass audio signals that swing down to -1.8V below ground.
*Future product—contact factory for availability.
**Human Body Model.
High-Performance USB Switches
Low Power Consumption for Extended
Battery Operation
• Low supply current 6µA (typ)
• Single 2.7V to 5.5V supply operation (V
CC
)
High Level of Integration for Design
Flexibility and Performance
• 3Ω (typ) on-resistance
• 950MHz bandwidth
• 0.05% THD+N audio channel
• Audio channel override control input
• Distortion-free negative signal throughput
down to -1.8V on audio channel
• 28V-capable V
B
input with automatic USB
selection by V
BUS
detection
• Low-capacitance Hi-Speed USB for both USB inputs
• Dual power supply architecture (V
B
and V
CC
)
• ±15kV HBM** ESD protection on COM_ pins
Reduces Required Board Space
• Internal shunt resistor reduces click and pop
(MAX14585)
• 1.4mm x 1.8mm, 10-pin UTQFN package
Part Configuration
Supply Voltage
(V)
V
BUS
Detection/Enable
Shunt Resistor
Package
(mm x mm)
MAX14585*
DPDT
2.7 to 5.5 or V
BUS
Detection
✓
10-UTQFN (1.4 x 1.8)
MAX14585A*
MAX14508E
2.7 to 5.0
Enable
✓
MAX14509AE
MAX14510E
DetectionMAX14531E
DP3T 2.7 to 5.5 12-WLP (1.5 x 2)
MAX14532E
✓

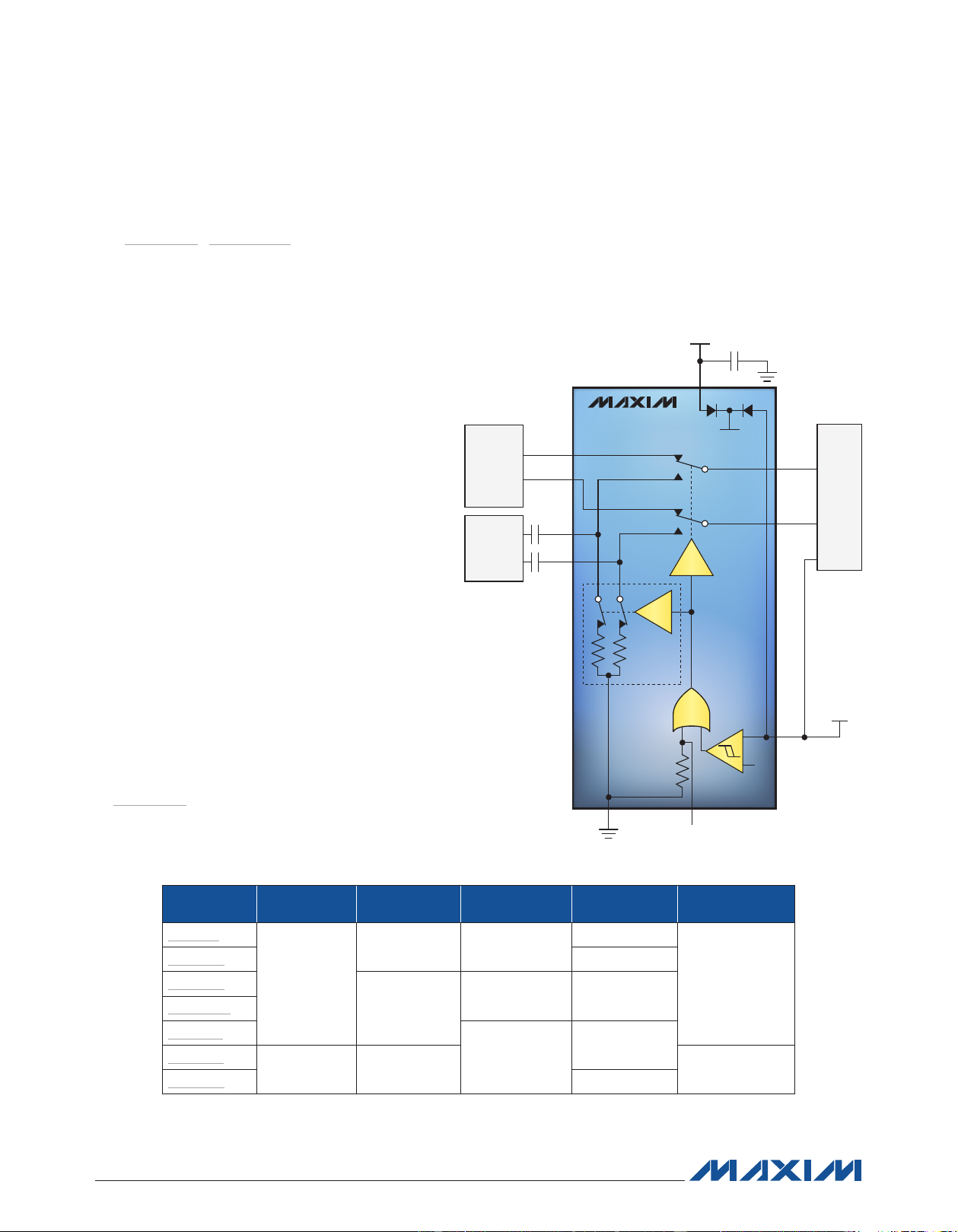

MAX14585
ONLY
V
VBDET
AN02
GND AOR
AN01
UNC2
COM1
COM2
V
B
V
BUS
V
CC
UNC1
3.0V
0.1µF
V
CCINT
MAX14585*
MAX14585A*
AUDIO
AMPLIFIER
HI-SPEED
USB
TRANSCEIVER
USB + AUDIO
CONNECTOR
