For pricing delivery, and ordering information please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
General Description
The MAX4541–MAX4544 are precision, dual analog
switches designed to operate from a single +2.7V to +12V
supply. Low power consumption (5µW) makes these parts
ideal for battery-powered equipment. These switches offer
low leakage currents (100pA max) and fast switching
speeds (t
ON
= 150ns max, t
OFF
= 100ns max).
When powered from a +5V supply, the MAX4541–
MAX4544 offer 2Ω max matching between channels, 60Ω
max on-resistance (R
ON
), and 6Ω max R
ON
flatness.
These switches also offer 5pC max charge injection and
a minimum of 2000V ESD protection per Method 3015.7.
The MAX4541/MAX4542/MAX4543 are dual single-pole/
single-throw (SPST) devices and the MAX4544 is a single-
pole/double-throw (SPDT) device. The MAX4541 has two
normally open (NO) switches and the MAX4542 has two
normally closed (NC) switches. The MAX4543 has one NO
and one NC switch and can be used as an SPDT, while
the MAX4544 is an SPDT. The MAX4541/MAX4542/
MAX4543 are available in tiny SOT23-8 and QFN-8 pack-
ages, and the MAX4544 is available in a SOT23-6 package.
________________________Applications
____________________________Features
♦ Low R
ON
: 60Ω max (33Ω typ)
♦ R
ON
Matching Between Channels: 2Ω max
♦ R
ON
Flatness: 6Ω max
♦ Guaranteed Charge Injection: 5pC max
♦ +2.7V to +12V Single-Supply Operation
♦ Low Power Consumption: <5µW
♦ Low Leakage Current Over Temperature:
10nA max at +85°C
♦ Fast Switching: t
ON
= 35ns, t
OFF
= 25ns
♦ Guaranteed Break-Before-Make
(MAX4543/MAX4544 only)
♦ TTL/CMOS-Logic Compatible
♦ Pin Compatible with MAX323/MAX324/MAX325
♦ MAX4541/42/43 Available in SOT23-8
MAX4544 Available in SOT23-6
MAX4541–MAX4544
Low-Voltage, Single-Supply
Dual SPST/SPDT Analog Switches
________________________________________________________________ Maxim Integrated Products 1
19-1202; Rev 3; 8/02
Ordering Information continued at end of data sheet.
*Dice are specified at T
A
= +25°C.
Ordering Information

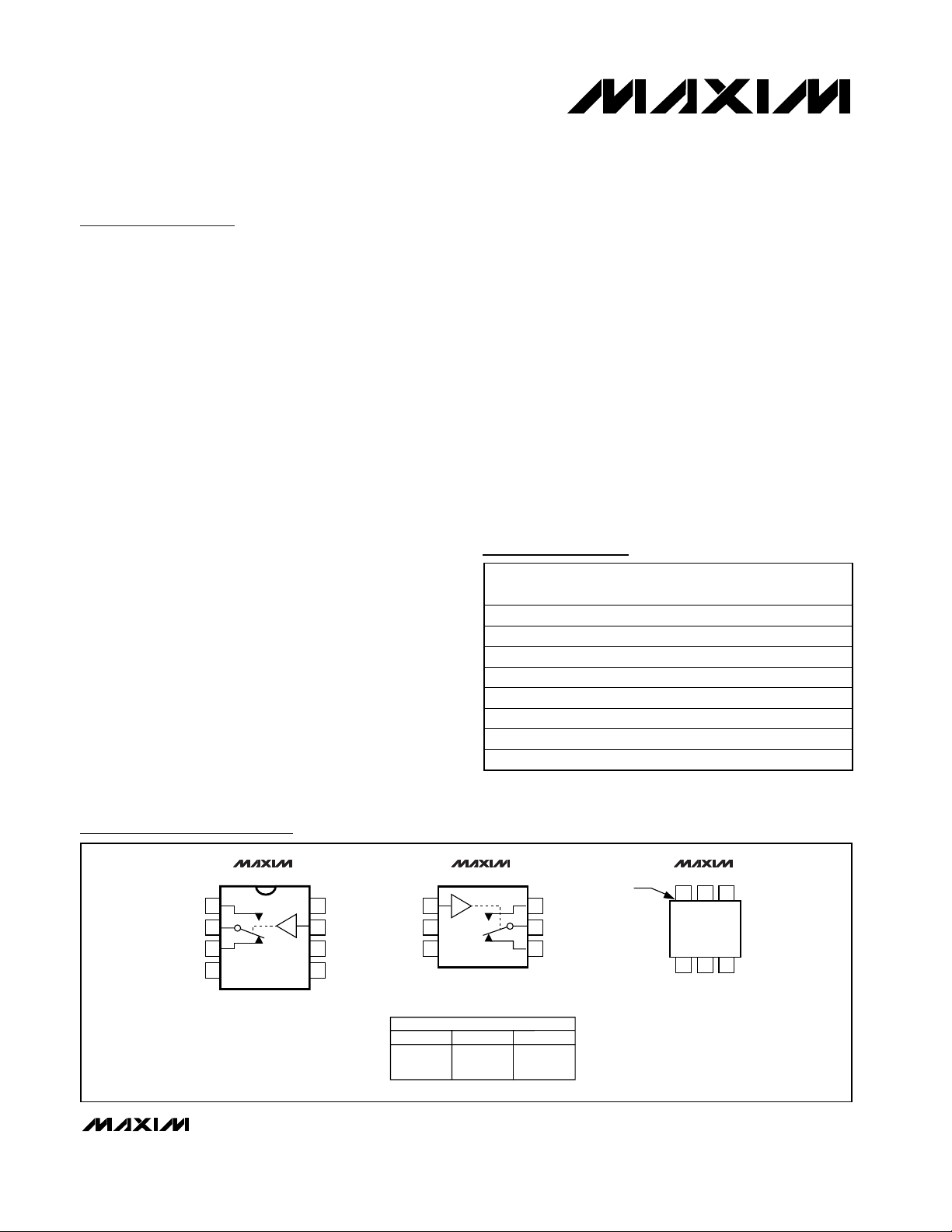

Pin Configurations/Functional Diagrams/Truth Tables
µMAX/SO/DIP/QFN
8
7
6
5
1
2
3
4
V+
PIN 6
IN
N.C.
N.C.
GND
NC
COM
NO
MAX4544
SOT23-6*
6
5
4
1
2
3
NO
COM
NC
GND
V+
IN
6
AAAM
54
123
MAX4544 MAX4544
SWITCHES SHOWN FOR "0" INPUT
N.C. = NOT INTERNALLY CONNECTED
MAX4541/MAX4542/MAX4543
APPEAR AT END OF DATA SHEET.
*NOTE: SOT23-6 PACKAGE
HAS LETTERING NEAREST PIN 6
TOP VIEW
MAX4544
LOGIC NC
0
1
ON
OFF
NO
OFF
ON
Battery-Operated Systems
Sample-and-Hold Circuits
Heads-Up Displays
Guidance and Control
Systems
Audio and Video
Switching
Military Radios
Test Equipment
Communications Systems
+3V/+5V DACs and ADCs
PBX, PABX
Cell Phones
Ultrasound
Pagers
PART TEMP RANGE
PIN-
PACKAGE
TOP
MARK
MAX4541CUA 0°C to +70°C 8 µMAX —
MAX4541CSA 0°C to +70°C 8 SO —
MAX4541CPA 0°C to +70°C 8 Plastic DIP —
MAX4541C/D 0°C to +70°C Dice* —
MAX4541EKA-T -40°C to +85°C 8 SOT23-8 AAAE
MAX4541EGA -40°C to +85°C 8 QFN —
MAX4541EUA -40°C to +85°C 8 µMAX —
MAX4541ESA -40°C to +85°C 8 SO —
