_______________General Description
The MAX4545/MAX4546/MAX4547 are low-voltage
T-switches designed for switching RF and video signals
from DC to 300MHz in 50Ω and 75Ω systems. The
MAX4545 contains four normally open single-pole/single-
throw (SPST) switches. The MAX4546 contains two dual
SPST switches (one normally open, one normally closed.)
The MAX4547 contains two single-pole/double-throw
(SPDT) switches.
Each switch is constructed in a “T” configuration, ensuring
excellent high-frequency off isolation and crosstalk of
-80dB at 10MHz. They can handle Rail-to-Rail
®
analog sig-
nals in either direction. On-resistance (20Ω max) is
matched between switches to 1Ω max and is flat (0.5Ω
max) over the specified signal range, using ±5V supplies.
The off leakage current is less than 5nA at +25°C and
50nA at +85°C.
These CMOS switches can operate with dual power sup-
plies ranging from ±2.7V to ±6V or a single supply
between +2.7V and +12V. All digital inputs have 0.8V/2.4V
logic thresholds, ensuring both TTL- and CMOS-logic com-
patibility when using ±5V or a single +5V supply.
________________________Applications
RF Switching
Video Signal Routing
High-Speed Data Acquisition
Test Equipment
ATE Equipment
Networking
____________________________Features
♦ Low 50Ω Insertion Loss: -1dB at 100MHz
♦ High 50Ω Off Isolation: -80dB at 10MHz
♦ Low 50Ω Crosstalk: -80dB at 10MHz
♦ DC to 300MHz -3dB Signal Bandwidth
♦ 20Ω Signal Paths with ±5V Supplies
♦ 1Ω Signal-Path Matching with ±5V Supplies
♦ 0.5Ω Signal-Path Flatness with ±5V Supplies
♦ ±2.7V to ±6V Dual Supplies
+2.7V to +12V Single Supply
♦ Low Power Consumption: <1µW
♦ Rail-to-Rail Bidirectional Signal Handling
♦ Pin Compatible with Industry-Standard DG540,
DG542, DG643
♦ >2kV ESD Protection per Method 3015.7
♦ TTL/CMOS-Compatible Inputs
with Single +5V or ±5V
MAX4545/MAX4546/MAX4547
Quad/Dual, Low-Voltage,
Bidirectional RF/Video Switches
________________________________________________________________
Maxim Integrated Products
1
TOP VIEW
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
MAX4546
DIP/SO/QSOP
IN2
COM2
GND2
NO2
V+
NC3
GND3
COM3
N01
GND1
COM1
IN1
COM4
GND4
NC4
V-
20
19
18
17
16
15
14
13
1
2
3
4
5
6
7
8
IN2
COM2
GND2
NO2N01
GND1
COM1
IN1
V+
GND6
N03
GND3GND4
N04
GND5
V-
12
11
9
10
COM3
IN3IN4
COM4
MAX4545
DIP/SO/SSOP
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
MAX4547
DIP/SO/QSOP
N02
V+
GND2
COM2
GND3
V-
NC2
IN2
GND1
V-
N01
IN1
NC1
V+
GND4
COM1
MAX4545
SWITCHES SHOWN
FOR LOGIC “0” INPUT
LOGIC SWITCH
0
1
OFF
ON
MAX4547
LOGIC NO-COM
0
1
OFF
ON
NC-COM
ON
OFF
MAX4546
LOGIC 1, 2
0
1
OFF
ON
3, 4
ON
OFF

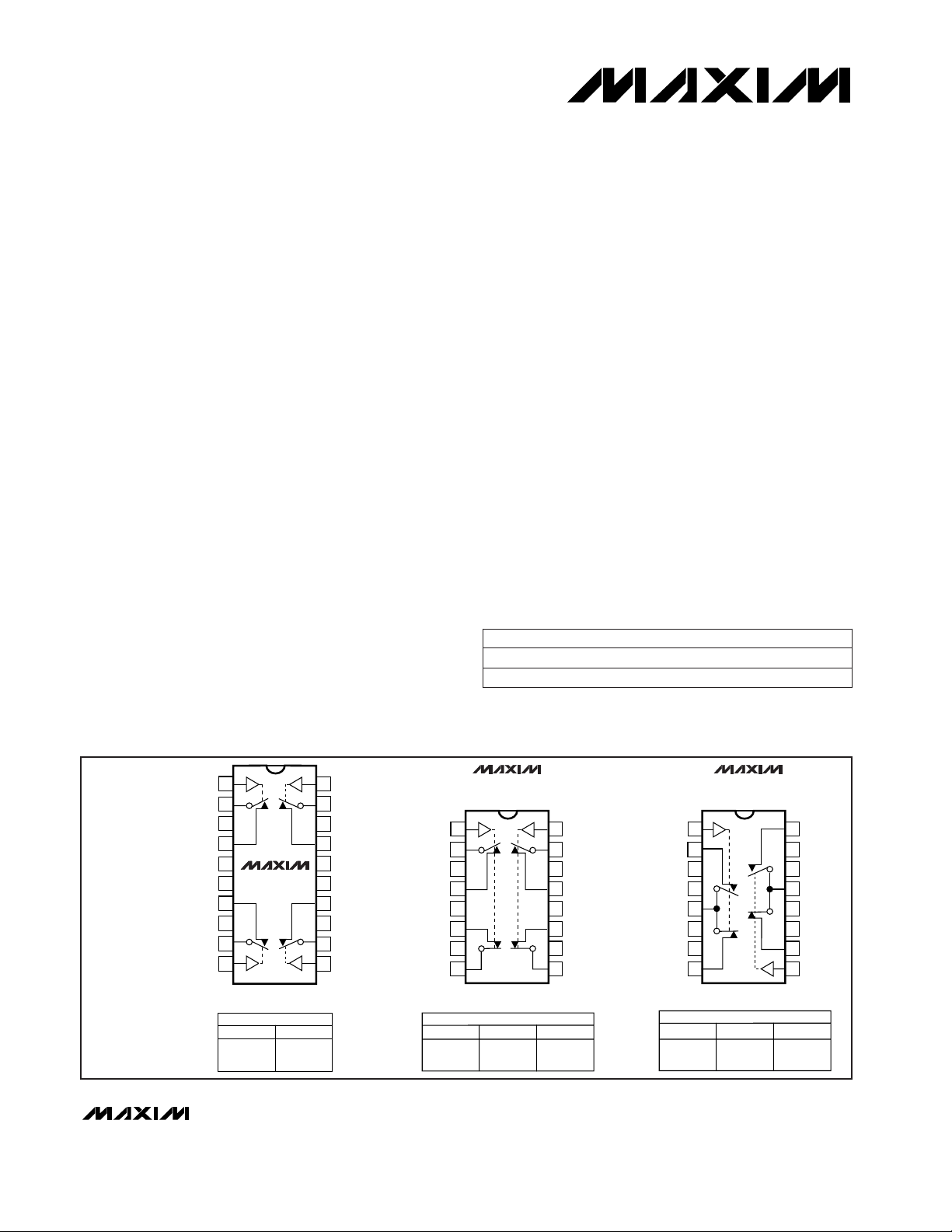

_____________________Pin Configurations/Functional Diagrams/Truth Tables
19-1232; Rev 0; 6/97
______________Ordering Information
Ordering Information continued at end of data sheet.
For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800
Rail-to-Rail is a registered trademark of Nippon Motorola Ltd.
PART
MAX4545CPP
MAX4545CWP 0°C to +70°C
0°C to +70°C
TEMP. RANGE PIN-PACKAGE
20 Plastic DIP
20 Wide SO
