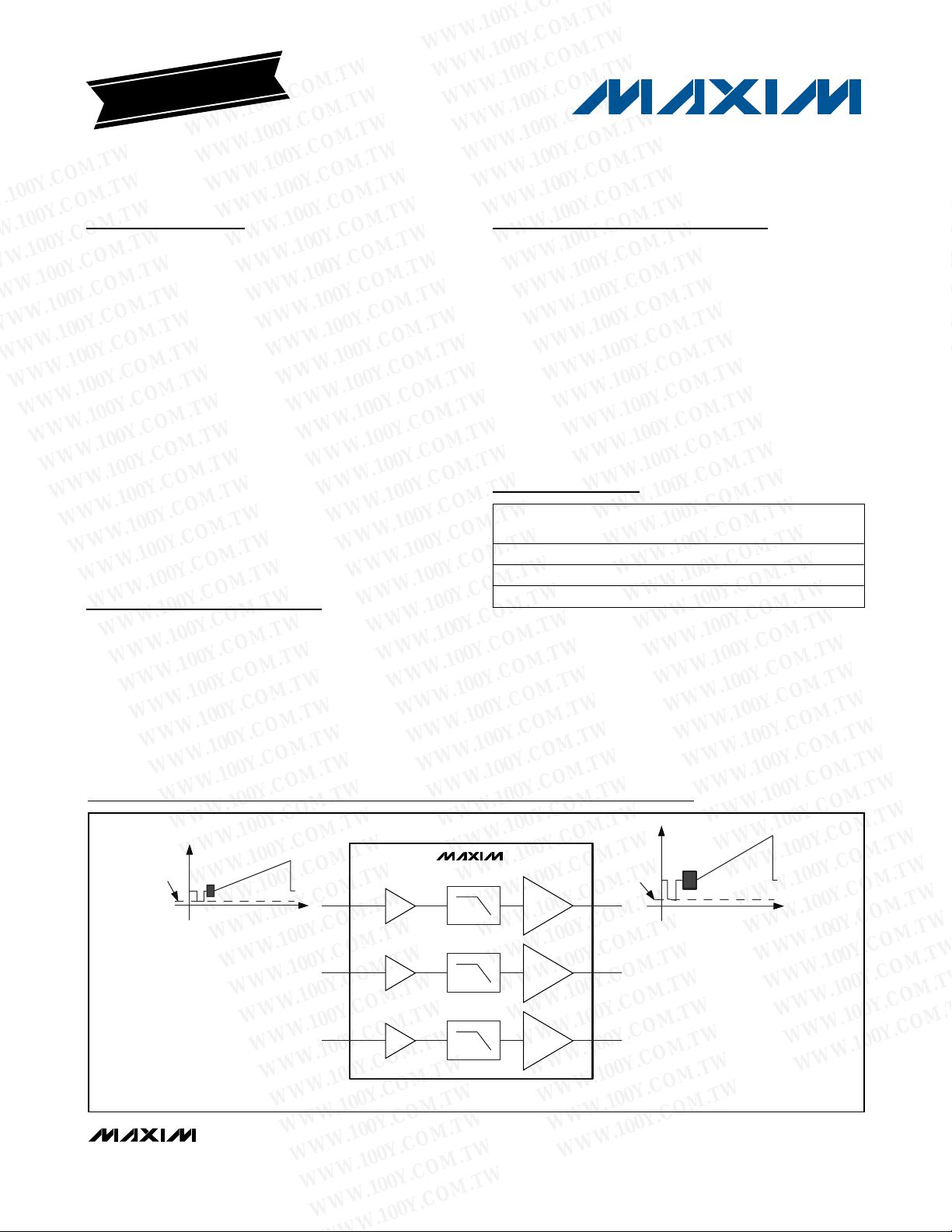

General Description

The MAX9583/MAX9584/MAX9585 are small, low-power,

multichannel video amplifiers with integrated reconstruc-

tion filters. Specially suited for standard-definition video

signals, these devices are ideal for a wide range of

television, set-top box, and portable applications.

The MAX9583/MAX9584/MAX9585 inputs can be

directly connected to the outputs of a video digital-to-

analog converter (DAC). The reconstruction filter typical-

ly has ±1dB passband flatness at 8.5MHz and 55dB

attenuation at 27MHz. The amplifiers have a 2V/V gain

and the outputs can be DC-coupled to a 75Ω load which

is the equivalent of two video loads, or AC-coupled to a

150Ω load.

The MAX9583/MAX9584/MAX9585 operate from a 2.7V to

3.6V single supply and are specified over the -40°C to

+125°C automotive temperature range. The MAX9583 is

offered in a small, 6-pin thin SOT23 package. The

MAX9584 is offered in a small, 8-pin µMAX

package,

and the MAX9585 is offered in a small, 10-pin µMAX

package.

Applications

Set-Top Boxes

Televisions

Portable

Features

o Dual- (MAX9583), Triple- (MAX9584),

and Quad- (MAX9585) Channel Devices

o 8.5MHz, ±1dB Passband

o 55dB Attenuation at 27MHz

o Fixed Gain of 2V/V

o Low Power: 3.5mA per Channel

o 2.7V to 3.6V Single-Supply Operation

o Small SOT23 and µMAX Packages

MAX9583/MAX9584/MAX9585

Dual, Triple, and Quad Standard-Definition Video

Filter Amplifiers with DC-Coupled Input Buffers

________________________________________________________________

Maxim Integrated Products

INA

OUTA

LPF

= 2V/V

MAX9584

50mV

300mV

TO 400mV

BUFFER

INB

OUTB

LPF

= 2V/V

INC

OUTC

LPF

= 2V/V

BUFFER

Block Diagrams

19-0817; Rev 5; 10/07

For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,

or visit Maxim’s website at www.maxim-ic.com.

EVALUATION KIT

AVAILABLE

Pin Configurations and Selector Guide located at end of

data sheet.

µMAX is a registered trademark of Maxim Integrated Products, Inc.

Ordering Information

Note: All devices are specified over the -40°C to +125°C operat-

ing temperature range.

Denotes a lead-free package.

T = Tape and reel.

PART PIN-PACKAGE CHANNELS

PKG

CODE

MAX9583AZT+T 6 Thin SOT23-6

Z6+1

MAX9584AUA+T 8 µMAX-8

U8+1

MAX9585AUB+T 10 µMAX-10

U10+2

Block Diagrams continued at end of data sheet.
