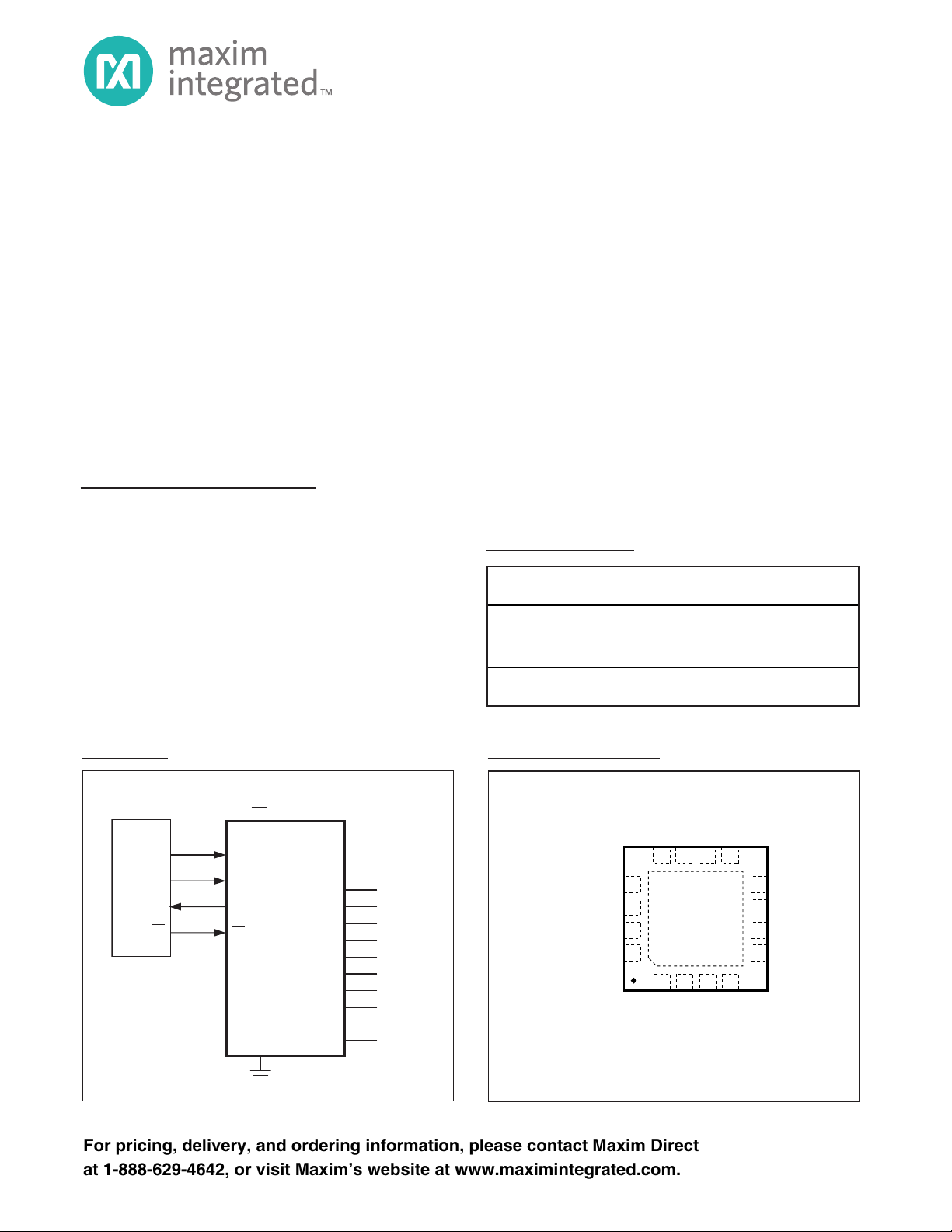

AVAILABLE
Functional Diagrams
Pin Configurations appear at end of data sheet.
Functional Diagrams continued at end of data sheet.
UCSP is a trademark of Maxim Integrated Products, Inc.
For pricing, delivery, and
ordering information, please contact Maxim Direct
at 1-888-629-4642, or visit Maxim’s website at www.maximintegrated.com.
General Description
The MAX7317 serial-interfaced peripheral provides
microprocessors with 10 I/O ports rated to 7V. Each
port can be individually configured as either an open-
drain output, or an overvoltage-protected Schmitt input.
The MAX7317 supports hot insertion. All port pins
remain high impedance in power-down (V+ = 0V) with
up to 8V asserted on them.
The MAX7317 is available in 16-pin thin QFN and QSOP
packages and operates in the -40°C to +125°C range.
For a similar part with constant-current outputs and
8-bit PWM controls, refer to the MAX6966/MAX6967
data sheet.
Applications
Portable Equipment
Cellular Phones
White Goods
Industrial Controllers
Automotive
System Monitoring
Features
♦ High-Speed, 26MHz SPI™-/QSPI-™/MICROWIRE™-
Compatible Serial Interface
♦ 2.25V to 3.6V Operation
♦ I/O Port Inputs are Overvoltage Protected to 7V
♦ I/O Port Outputs are 7V-Rated Open Drain
♦ I/O Ports Support Hot Insertion
♦ 0.7µA (typ), 1.9µA (max) Standby Current
♦ Tiny 3mm x 3mm, 0.8mm High Thin QFN Package
♦ -40°C to +125°C Temperature Range
10-Port SPI-Interfaced I/O Expander with
Overvoltage and Hot-Insertion Protection
THIN QFN
MAX7317ATE
13
14
15
1234
5
6
16
12 11 10 9
8
7
V+
DIN
SCLK
P0
P1
P2
P3
P9
P8
P7
CS
P5
P6
GND
P4
DOUT
TOP VIEW
Pin Configurations
Ordering Information
µC
DIN
P0
P1
P2
P3
P4
P5
P6
P7
P8
P9
DOUT
SCLK
GND
MOSI
MISO
SCLK
CS
CS
I/O PORTS
MAX7317
+3.3V
Typical Application Circuit
19-3380; Rev 2; 4/05
PART
TEMP
RANGE
PIN-
PACKAGE
TOP
MARK
PKG
CODE
MAX7317ATE
-40°C to
+125°C
16 Thin QFN
3mm x 3mm x
0.8mm
ACH
T1633-4
MAX7317AEE
-40°C to
+125°C
16 QSOP — —
Pin Configurations continued at end of data sheet.
SPI and QSPI are trademarks of Motorola, Inc.
MICROWIRE is a trademark of National Semiconductor Corp.
MAX7317
