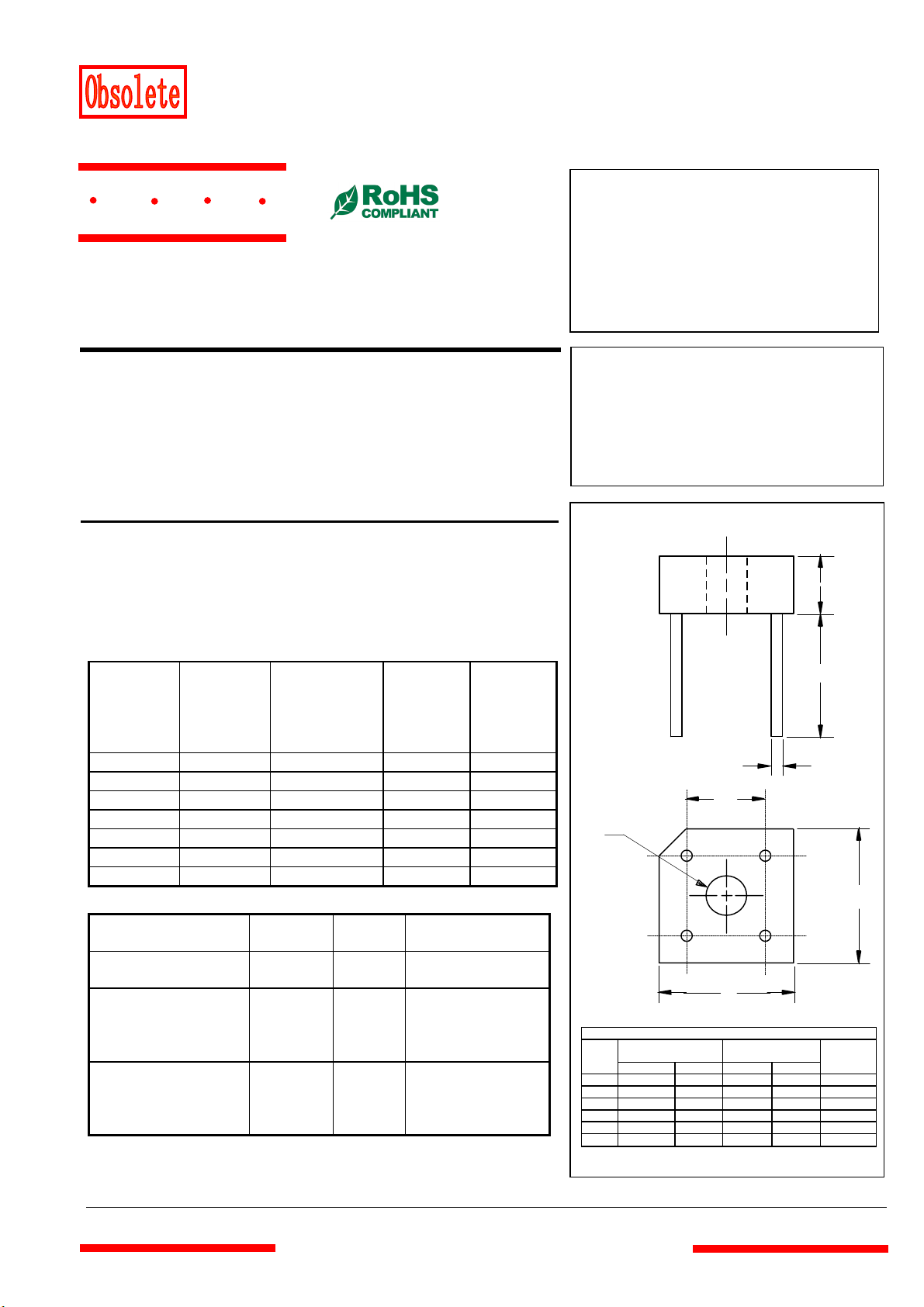

MB1005
THRU
MB1010
10 Amp Single Phase
Bridge Rectifier
50 to 1000 Volts
BR-6
Features
DIMENSIONS
INCHES MM
DIM MIN MAX MIN MAX NOTE
A .578 .618 14.69 15.71 2PL
B .230 .270 5.84 6.86
C .750 --- 19.10 ---
D .405 .444 10.30 11.30 2PL
E .038 .042 0.97 1.07 4PL/TYP
G .145 --- 3.70 ---
∅
Maximum Ratings
• Operating Temperature: -55°C to +125°C
• Storage Temperature: -55°C to +150°C
MCC
Catalog
Number
Device
Marking
Maximum
Recurrent
Peak
Reverse
Voltage
Maximum
RMS
Voltage
Maximum
DC
Blocking
Voltage
MB1005 MB1005 50V 35V 50V
MB101 MB101 100V 70V 100V
MB102 MB102 200V 140V 200V
MB104 MB104 400V 280V 400V
MB106 MB106 600V 420V 600V
MB108 MB108 800V 560V 800V
MB1010 MB1010 1000v 700V 1000v
Electrical Characteristics @ 25°C Unless Otherwise Specified
Average Forward
Current
I
F(AV)
10.0A
T
c
= 50°C
Peak Forward Surge
Current
I
FSM
150A 8.3ms, half sine
Maximum Forward
Voltage Drop Per
Element
V
F
1.1V I
FM
= 5.0A per
element;
T
J
= 25°C (Note 2)
Maximum DC
Reverse Current At
Rated DC Blocking
Voltage
I
R
10 µA
1.0mA
T
J
= 25°C
T
J
= 100°C
B
C
E
D
A
AC
+
-
A
AC
G
omponents
20736 Marilla Street Chatsworth
!"#
$% !"#
MCC
Revision: A 2011/03/13
• Mounting Hole For #6 Screw
• Any Mounting Position
• Surge Rating Of 150 Amps
TM
Micro Commercial Components
www.mccsemi.com
1 of 3
• Epoxy meets UL 94 V-0 flammability rating
• Lead Free Finish/RoHS Compliant (NOTE 1)("P" Suffix
designates RoHS Compliant. See ordering information)
Notes: 1. High Temperature Solder Exemption Applied, see EU Directive Annex Notes 7
2. Pulse Test: Pulse Width 300usec, Duty Cycle 1%
• UL Recognized File # E165989
Moisture Sensitivity Level 1
Maximum Thermal Resistance: 5
o
C/W Junction to case
Maximum Mounting Torque: 4.5 in-lbs.
