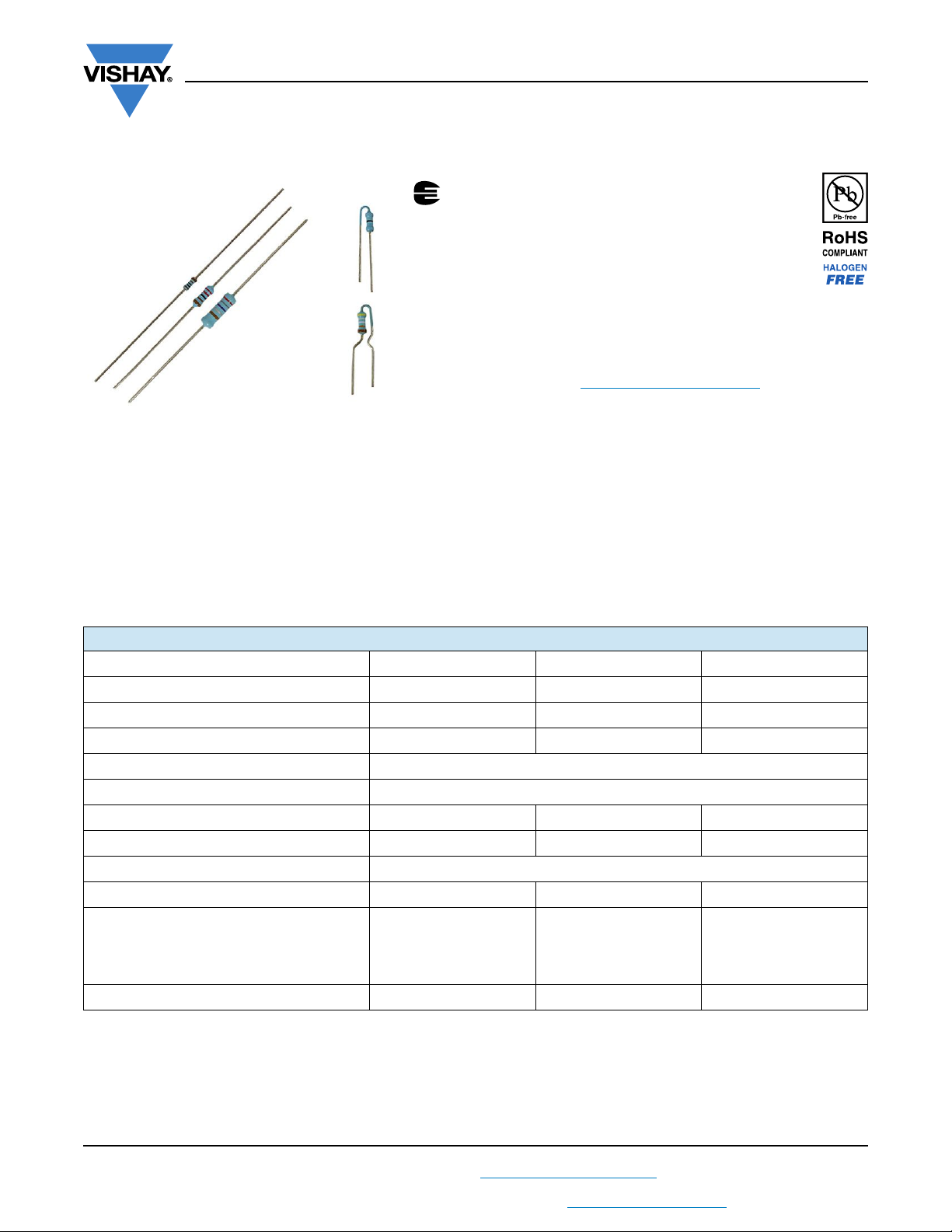

MBA/SMA 0204, MBB/SMA 0207, MBE/SMA 0414 - Professional
www.vishay.com
Vishay Beyschlag
Revision: 19-Nov-15
1
Document Number: 28766
For technical questions, contact: filmresistorsleaded@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Professional Metal Film Leaded Resistors
DESCRIPTION
MBA/SMA 0204, MBB/SMA 0207, and MBE/SMA 0414
professional leaded thin film resistors are the general
purpose resistor for all fields of professional electronics
where reliability and stability is of major concern. Typical
applications include industrial, telecommunication,
automotive, and medical equipment.
FEATURES
• CECC version (IECQ-CECC approved
according to EN 140101-806)
• Excellent overall stability: class 0.25
• Wide ohmic range: 0.22 Ω to 22 MΩ
• AEC-Q200 qualified available
(1)
• Radial version available for MBB/SMA 0207
• Alternative termination wires available e.g. weldable wire
(MBA/SMA 0204 only)
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
Note
(1)
AEC-Q200 qualified parts are available per tables “Temperature
Coefficient and Resistance Range”.
APPLICATIONS
• Industrial
• Telecommunication
• Medical equipment
• Automotive
Notes
• MB_ series has been merged with the related SMA series to form one series “MB_/SMA__”.
(2)
Please refer to APPLICATION INFORMATION below.
TECHNICAL SPECIFICATIONS
DESCRIPTION MBA/SMA 0204 MBB/SMA 0207 MBE/SMA 0414
DIN size 0204 0207 0414
CECC size A B D
Resistance range 0.22 Ω to 10 MΩ; 0 Ω 0.22 Ω to 22 MΩ; 0 Ω 0.22 Ω to 22 MΩ
Resistance tolerance ± 5 %; ± 1 %; ± 0.5 %
Temperature coefficient ± 50 ppm/K; ± 25 ppm/K
Rated dissipation, P
70
(2)
0.4 W 0.6 W 1.0 W
Operating voltage, U
max.
AC/DC 200 V 350 V 500 V
Operating temperature range
(2)
-55 °C to 155 °C
Peak permissible film temperature
(2)
155 °C 155 °C 155 °C
Insulation voltage:
1 min.; U
ins
300 V 500 V 800 V
Continuous 75 V 75 V 75 V
Failure rate: FIT
observed
≤ 0.1 x 10
-9
/h ≤ 0.1 x 10
-9
/h ≤ 0.1 x 10
-9
/h
